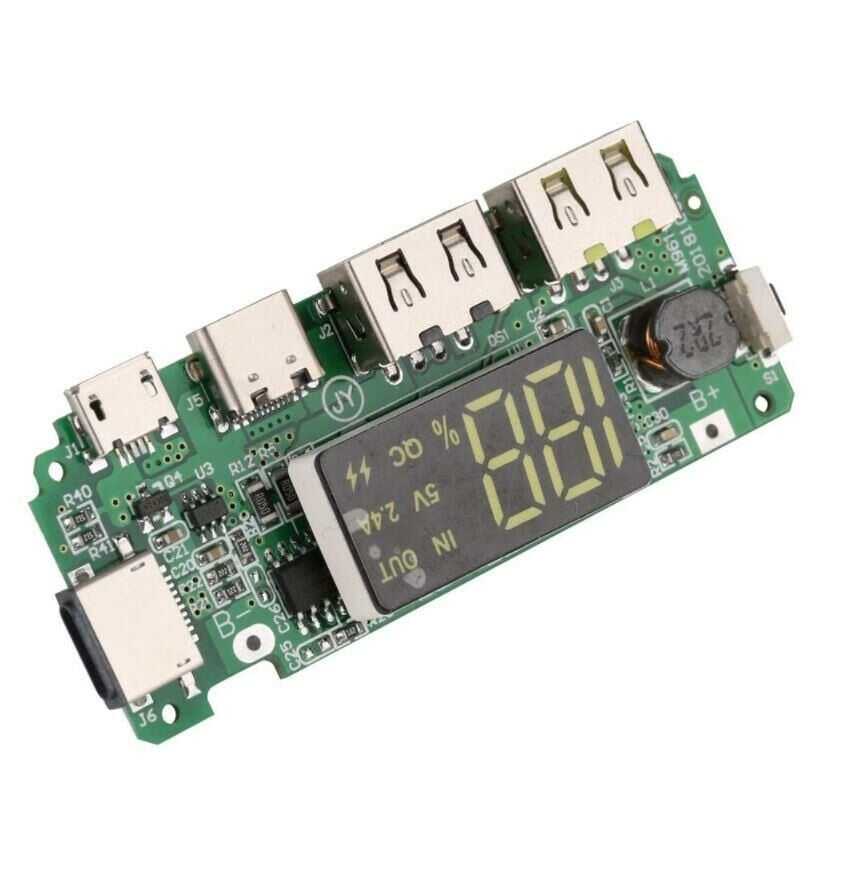

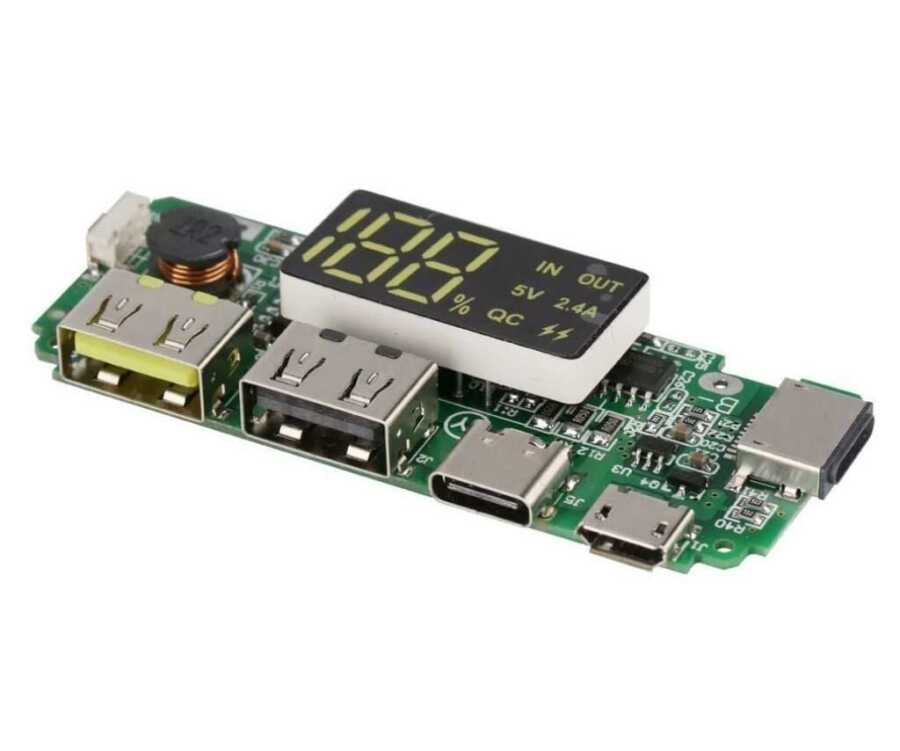

Dual USB 5V 2.4A Micro Type-C Powerbank Module with LEDs

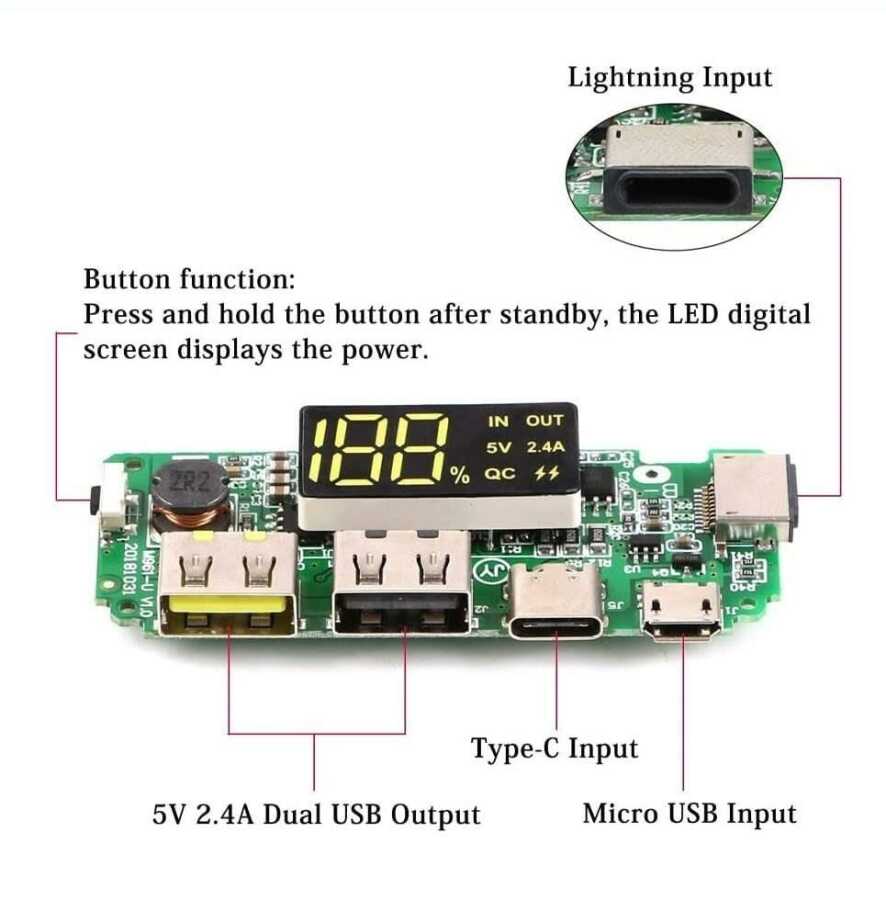

This power supply module with 5 ports and LED display is perfect for DIY powerbank . It has short circuit protection, overcharge protection and overdischarge protection. There are 2 USB Type-A charging ports and 1 USB Type-C / Micro USB / port. There is a button for LED power indicator when in charging state.
This module helps provide 5.0V / 2.4A output for external devices. Can be used for single cell lithium or lithium multi-section parallel.

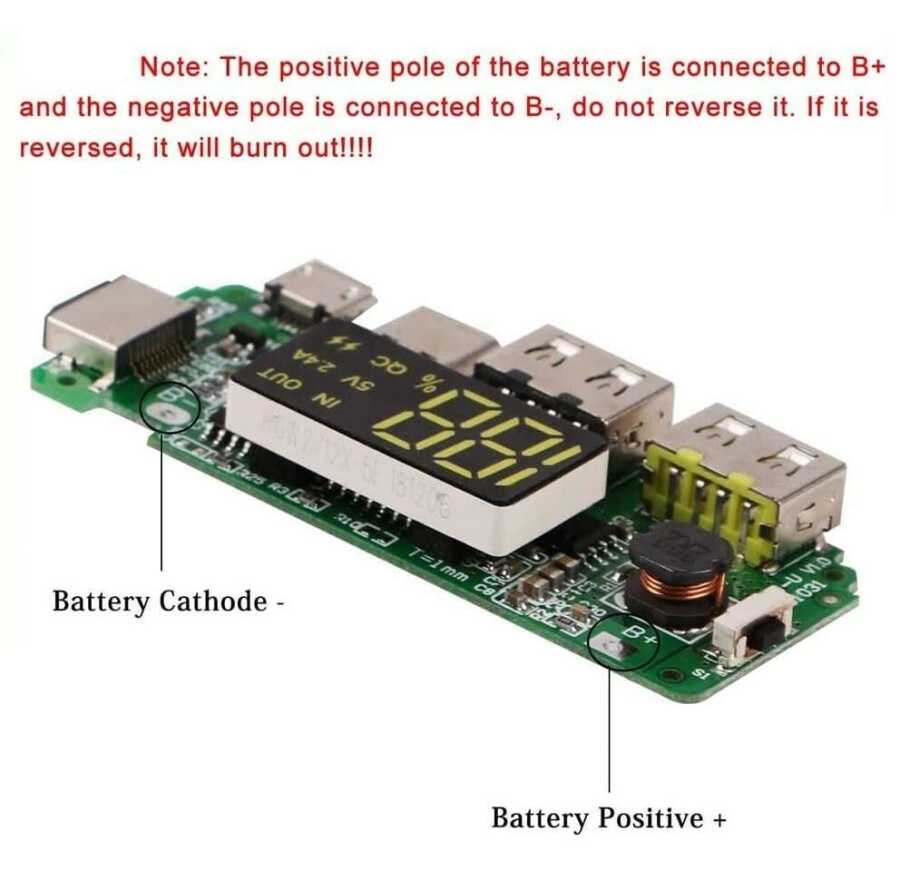

Note: Plus pole Connect to B+, minus pole to B-, do not connect in reverse. If connected in reverse, the card will burn!
Technical Specifications
Connection Type: Micro USB, Type-C, Type-A,
< DIV>IR PCM: ≤65 mΩ
Constant current: 2.4A
Dual output current: 5V 2.4A
Input voltage B + - B-: 3 0 - 4.2V
Product Size: 6.8 * 2.7 * 1.06cm
