E6B2-CWZ6C 5-24V 600 Pulse Rotary Encoder

E6B2-CWZ6C 5-24V 600 Pulse Rotary Encoder

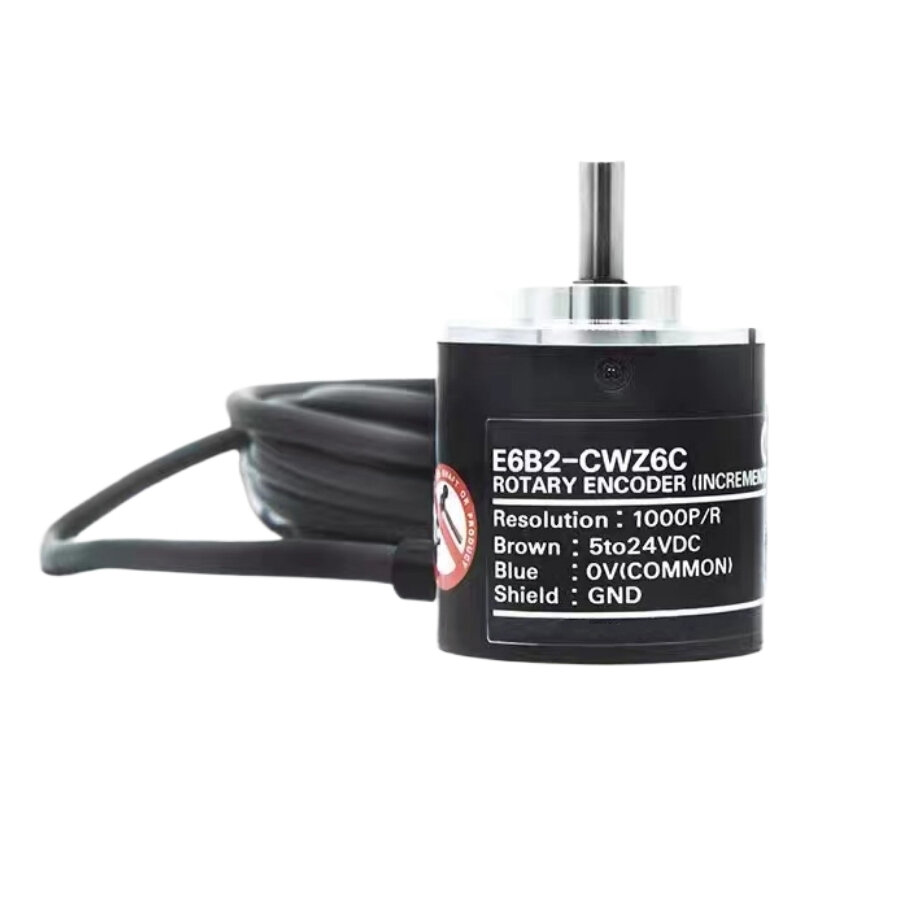

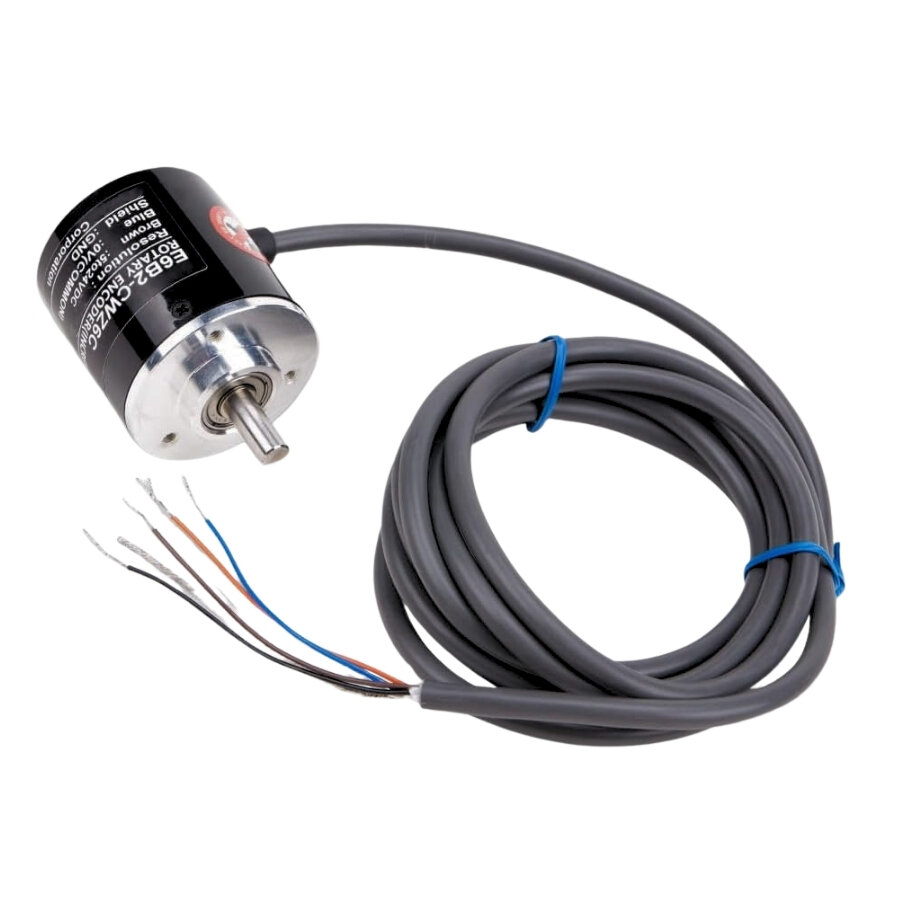

The E6B2-CWZ6C 5-24V 600 Pulse Rotary Encoder is an industrial-grade incremental rotary encoder with a 40 mm diameter. With its high resolution options, robust mechanical construction, wide supply voltage range, and stable output signal, this model offers solutions for a wide range of applications, from servo systems and CNC machines to conveyors and automation lines. Features include A/B phases plus Z (index) signal. This allows for both direction and position tracking.

Application Areas

• Position feedback for CNC machines, milling machines, and lathes
• Encoder feedback in servo motor systems
• Speed ​​and position control in conveyor systems
• Phase/alpha tracking and rotation monitoring in industrial automation lines
• Robotic arms, axis control systems, and high-performance machines

Technical Specifications

• Pulse: 600
• Supply Voltage: 5-24VDC
• Current Consumption: 0.6W max. (80mA max.)
• Output Phases: A, B, and Z
• Output Configuration: NPN
• Maximum Response Frequency: 100kHz
• Starting Torque: 0.98 mN-m max.
• Maximum Speed: 6000 RPM
• Insulation Resistance: 20 Mohm
• Dielectric Strength: 5000VAC 50/60Hz
• Protection Degree: IP50

Connection and Dimensions
