EMG EOG ECG Sensor Card (Muscular Eye and Heart Signals Detection)

EMG EOG ECG Sensor Card (Muscle, Eye and Heart Signals Detection)

EMG, EOG and ECG are biopotential sensors that measure the body's electrical activity.

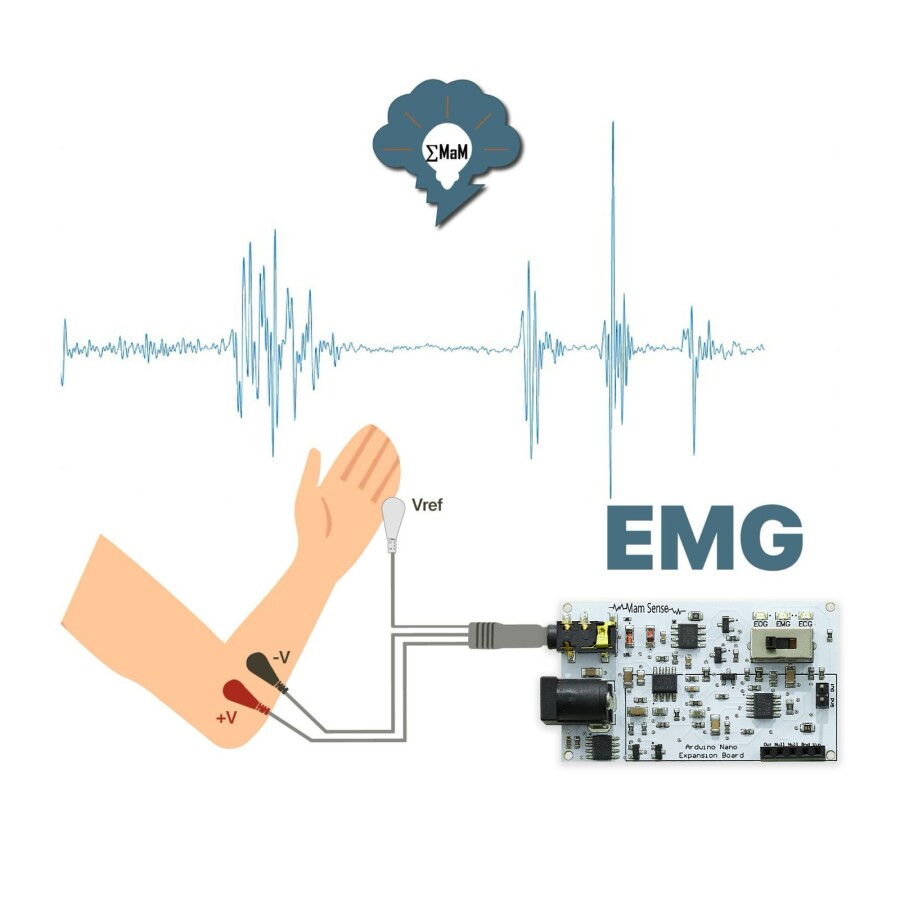

EMG sensors measure the electrical activity of muscles. This information is used to diagnose muscle disorders, monitor muscle performance, and control prosthetic limbs.

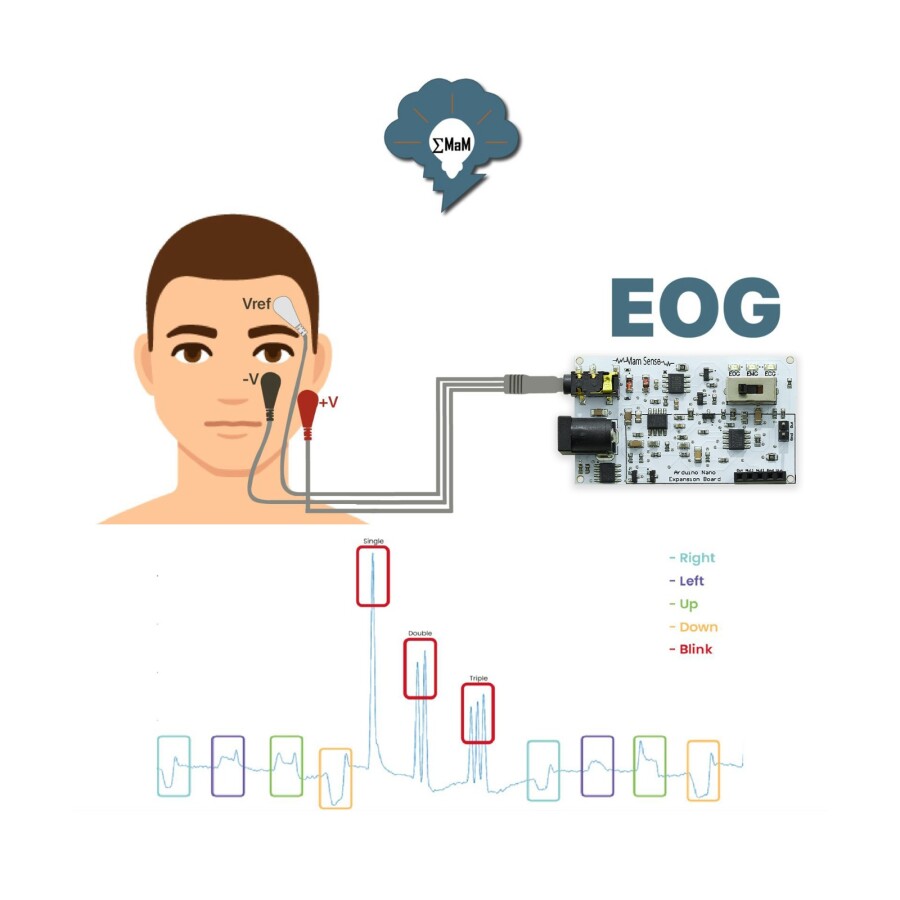

EOG sensors measure the electrical activity of the eyes. This information is used to diagnose eye disorders, track eye movements, and control gaze-controlled interfaces.

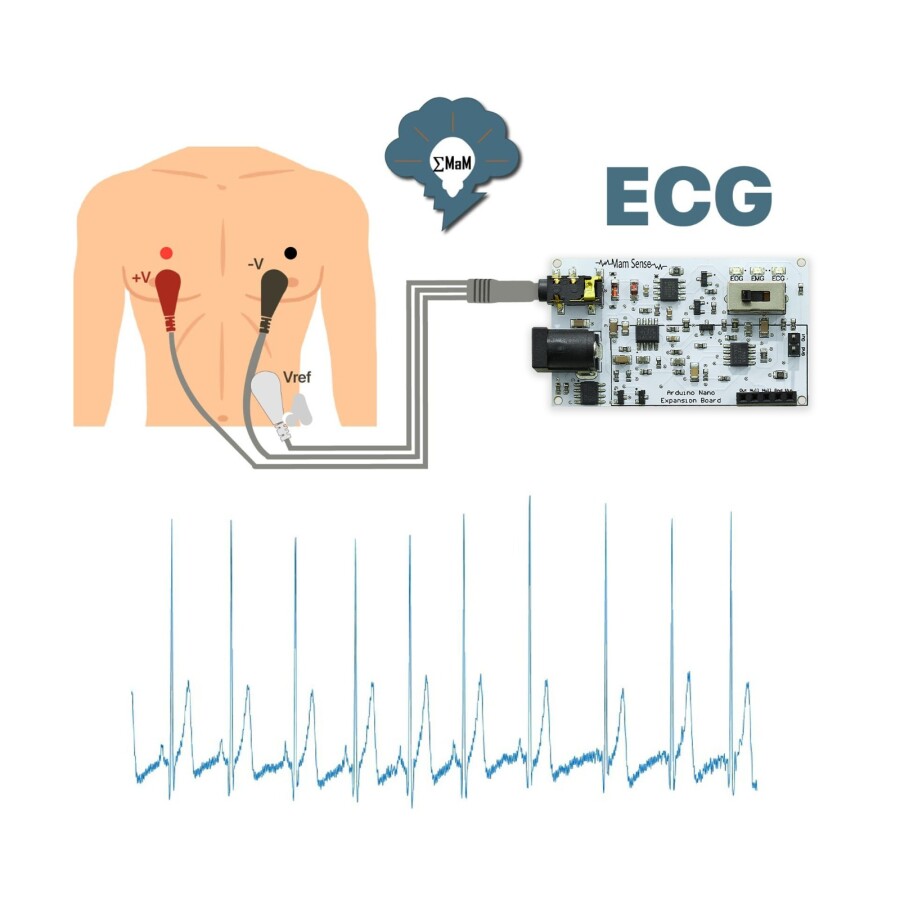

ECG sensors measure the electrical activity of the heart. This information is used to diagnose heart conditions, monitor heart health, and check pacemakers.

• Arduino Codes
• Datasheet

Usage

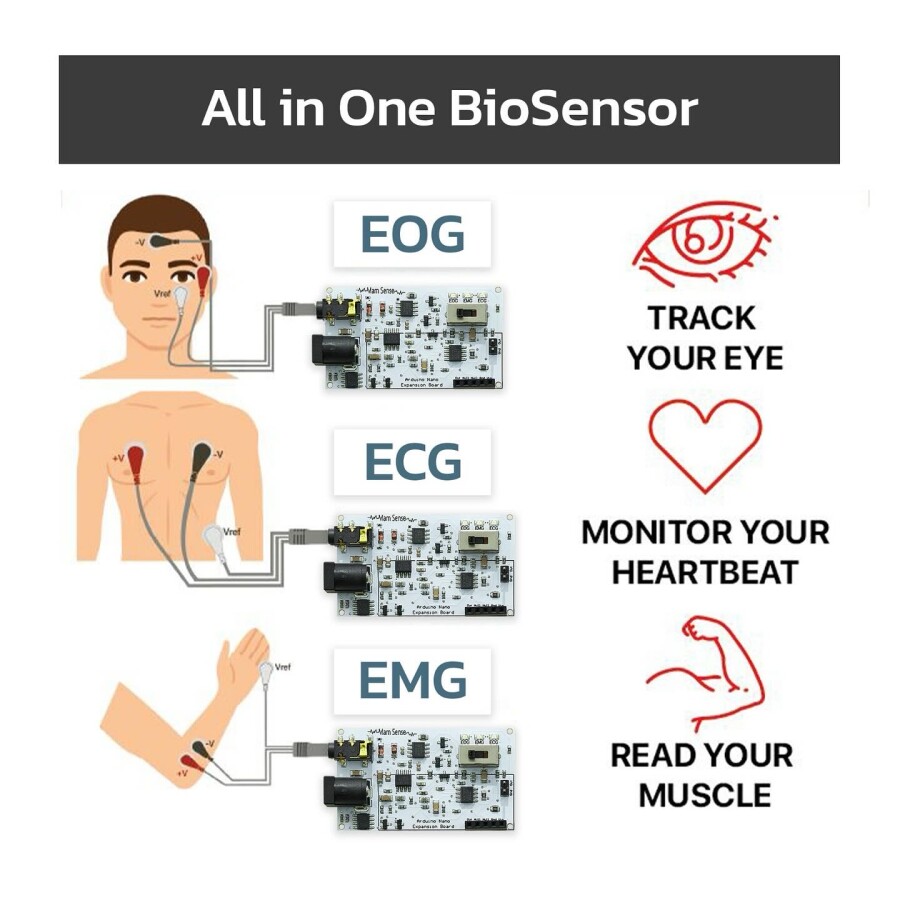

• In the electrode placement section, place the electrodes as shown in the figures.
• Connect the electrode cables. connect to the electrodes and electrode jack.
• You can choose the signal mode you want to learn.
• Apply 9V Power input. (From the DC Jack section)
• You can get the output signal from the output using an oscilloscope or development card.

EMG EOG ECG Sensor Card Features:

• EOG-EMG-ECG Can be purchased in a single circuit.
• MaM Sense can be used as Arduino Nano Shield.
• It has a strong noise canceling feature.
• It provides resistance to high input voltage.
• Compatible with other microcontrollers.

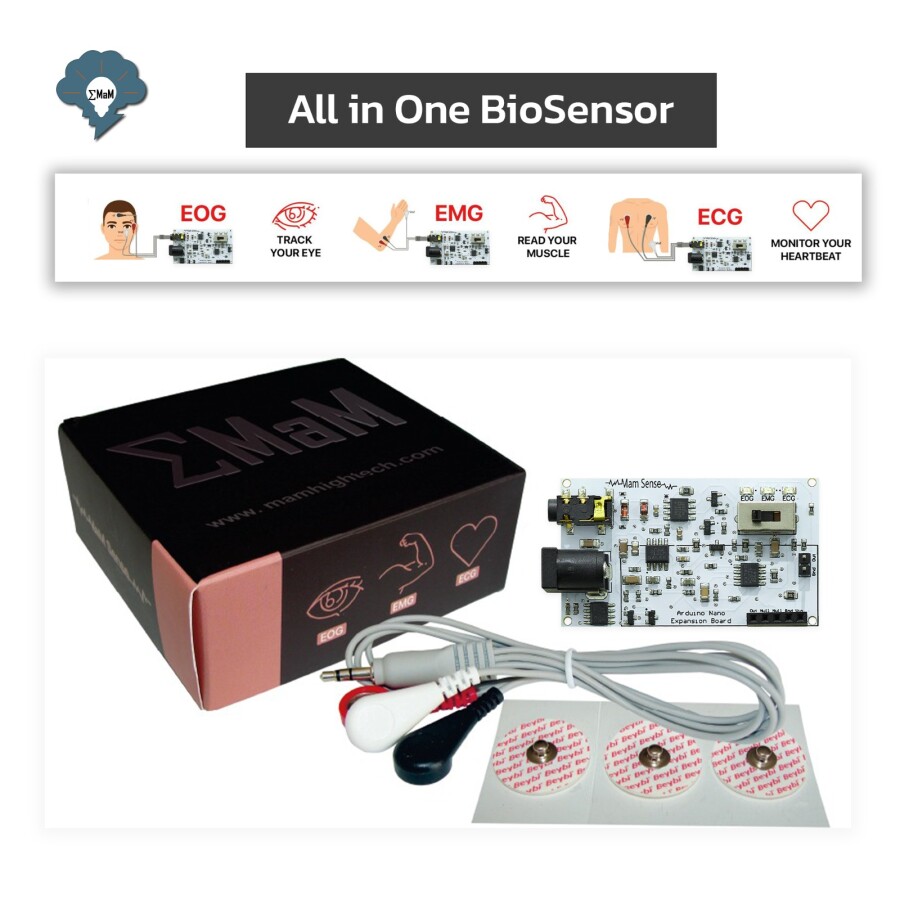

EMG EOG ECG Sensor CardPackage Content:

• 1 x MaM Sense Board
• 3 x ECG Electrode
• 1 x Biomedical Sensor Pad Cable
