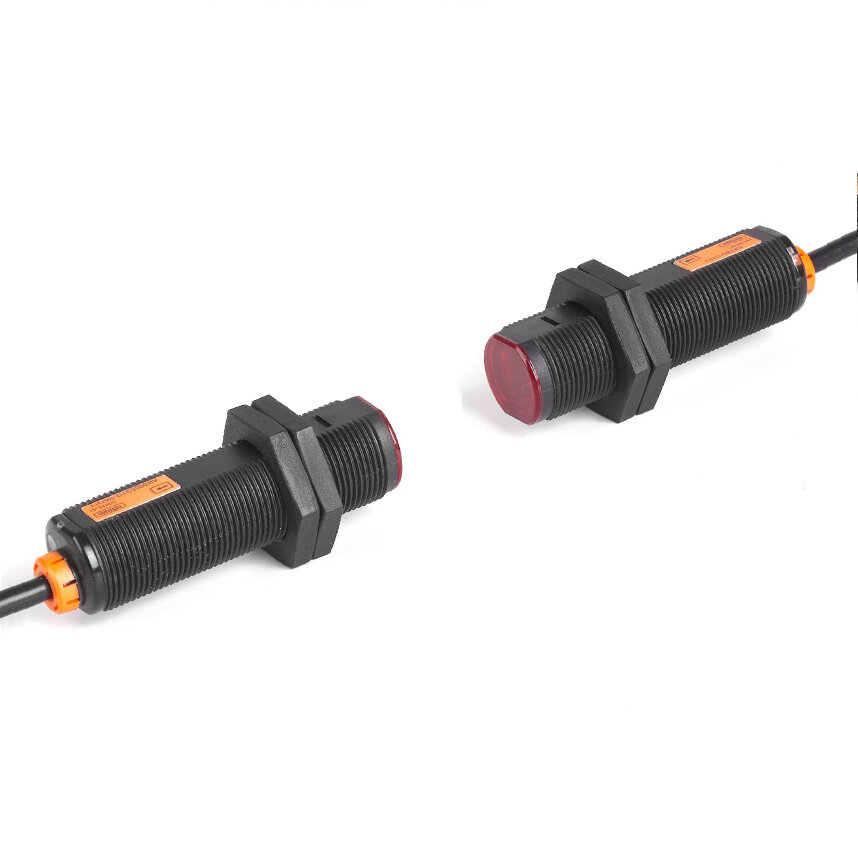

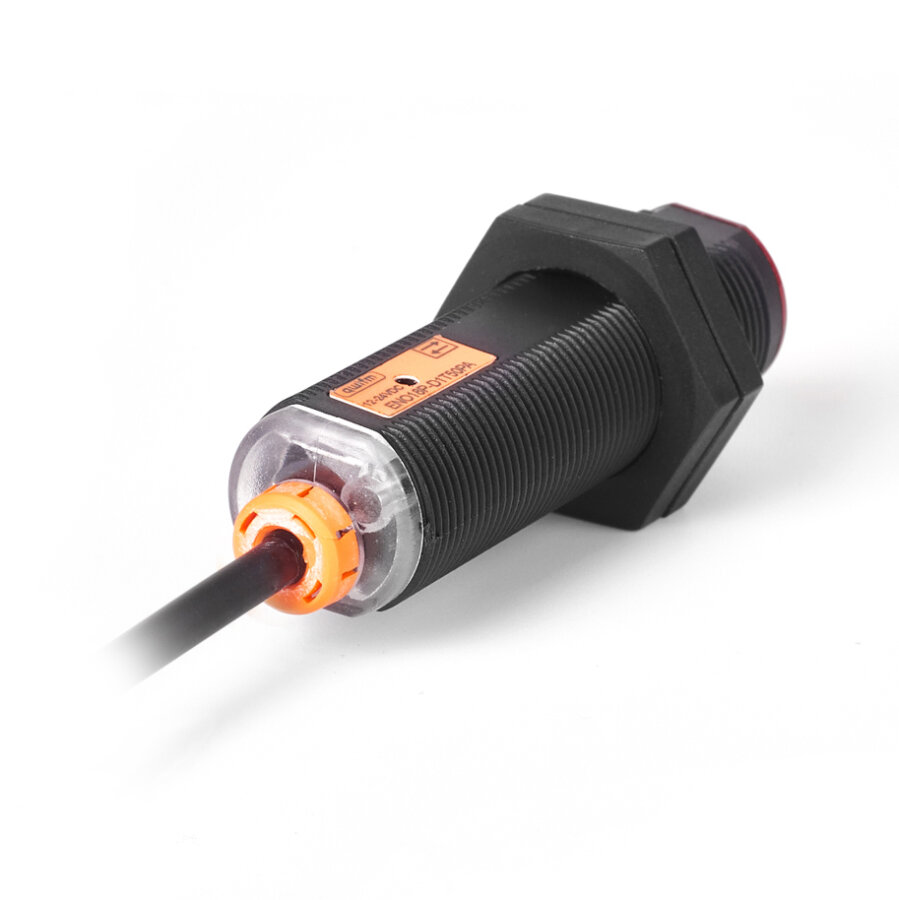

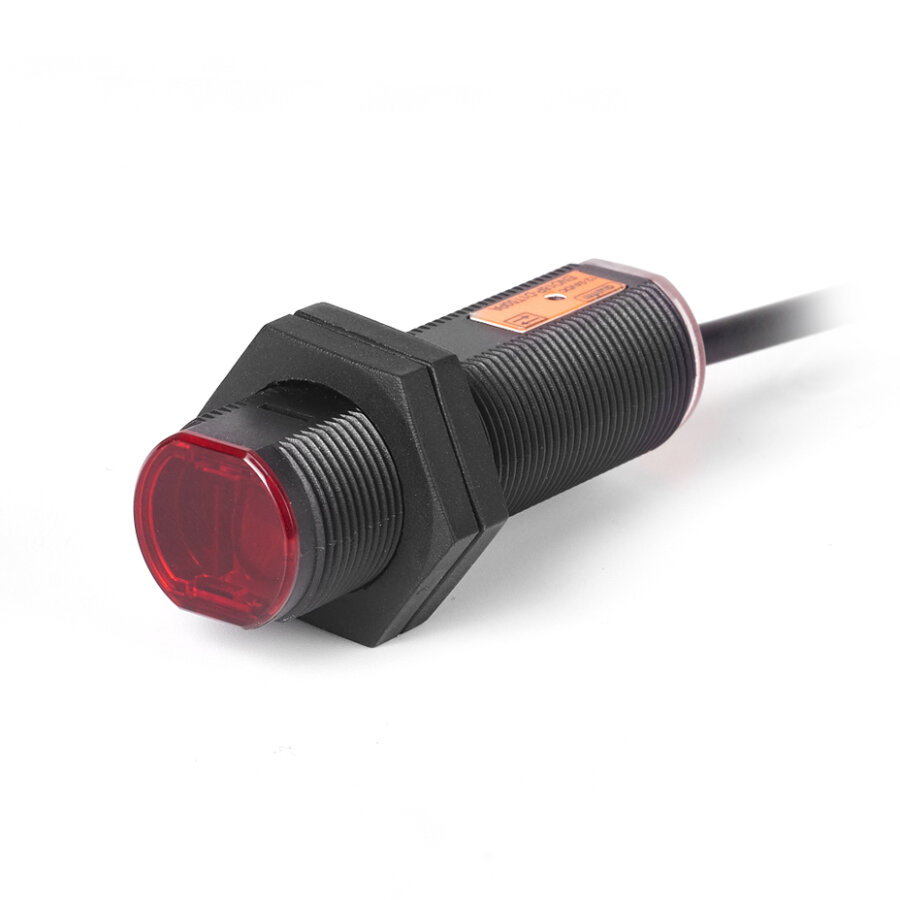

EN18P-D1E1000NA 1000cm NPN NO Through-beam Photoelectric Sensor

EN18P-D1E1000NA 1000cm NPN NO Through-beam Photoelectric Sensor

EN18P-D1E1000NA 1000cm NPN NO Through-beam Photoelectric Sensors operate on the principle that a light wave from a laser sent by a transmitter sensor is detected by a receiver sensor. Applications for such sensors include, for example, creating protective zones around operating machines or detecting production elements far from the sensor.

Application Areas

• Monitoring Production Lines: Detecting the presence or absence of products or elements, controlling the flow of goods.
• Object Counting: Precise counting of parts on conveyor belts or in packaging processes.
• Position Detection: Precise determination of the position of an element or tool.

Datasheet

Features

• Sensor Type: Through-beam
• Response Time: 1ms
• Supply Voltage: 12-24VDC
• Sensing Distance: 1000cm
• Operating Mode: NPN NO
• Light: Red LED 660nm / IR 880nm
• Product Standard: GB/T14048.10-2016
• Protection: IP66
• Material:
  • Shell: Plastic
  • Lens Cover: Acrylic
  • Lens: Acrylic
• Ambient Illumination:
  • Lamp: Less than 3000LUS
  • Sunlight: Less than 11000LUS
• Operating Temperature: -25°C ~ 55°C

Link

Size
