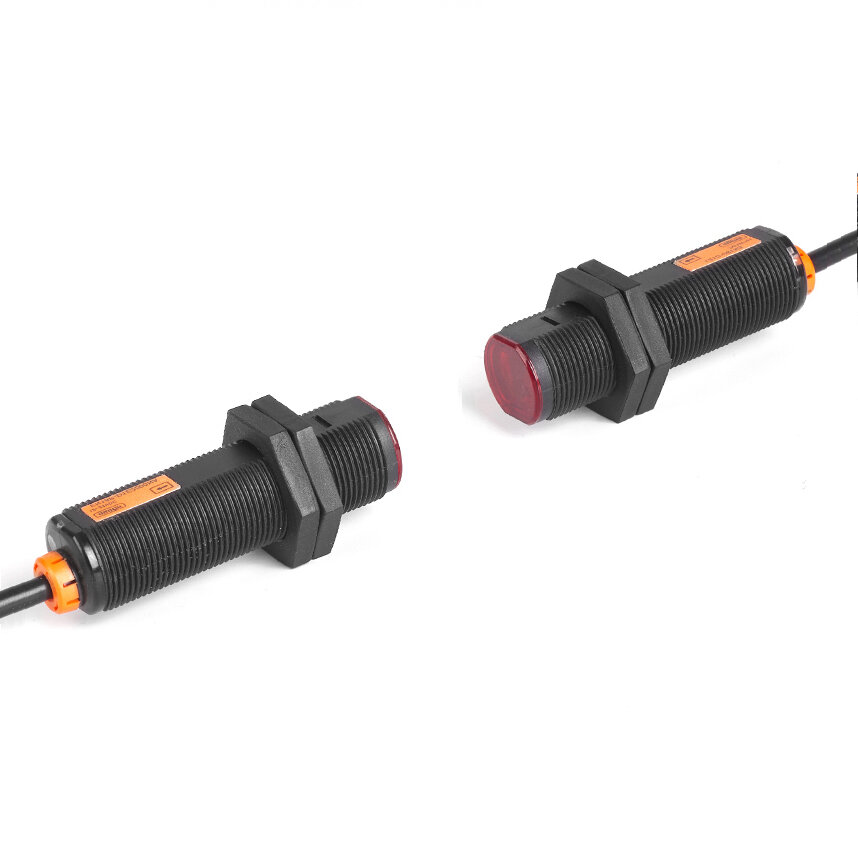

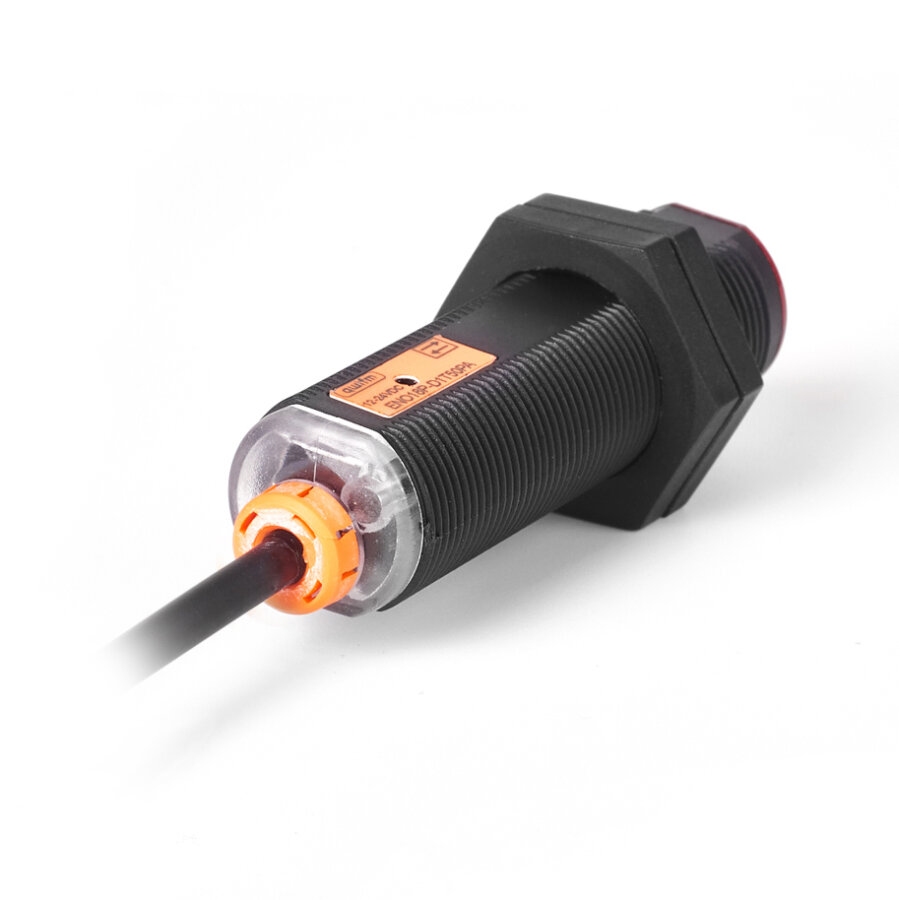

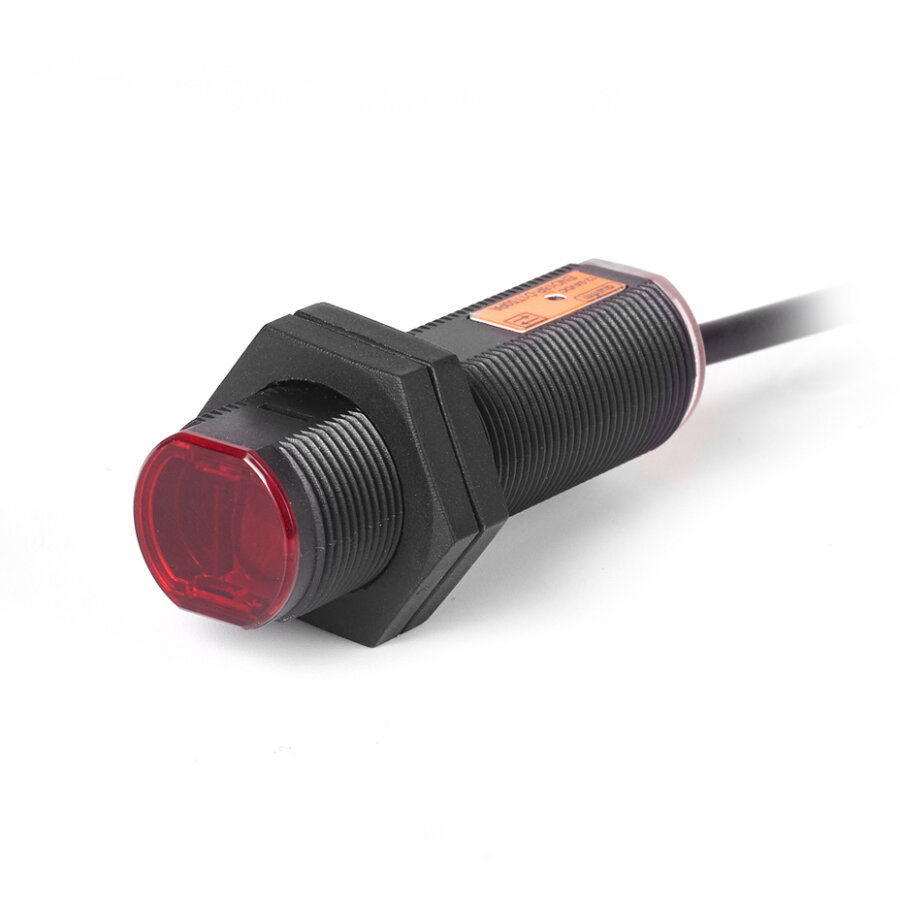

EN18P-D1E1000PA 1000cm PNP NO Through-beam Photoelectric Sensor

EN18P-D1E1000PA 1000cm PNP NO Through-beam Photoelectric Sensor

EN18P-D1E1000PA 1000cm PNP NO Through-beam Photoelectric Sensors operate on the principle that a light wave from a laser emitted by the transmitter sensor is detected by the receiver sensor. Applications for such sensors include, for example, creating protective zones around operating machines or detecting production elements far from the sensor.

Application Areas

• Monitoring Production Lines: Detecting the presence or absence of products or elements, controlling the flow of goods.
• Object Counting: Precise counting of parts on conveyor belts or in packaging processes.
• Position Detection: Precise determination of the position of an element or tool.

Datasheet

Features

• Sensor Type: Through-beam
• Response Time: 1ms
• Supply Voltage: 12-24VDC
• Sensing Distance: 1000cm
• Operating Mode: PNP NO
• Light: Red LED 660nm / IR 880nm
• Product Standard: GB/T14048.10-2016
• Protection: IP66
• Material:
  • Shell: Plastic
  • Lens Cover: Acrylic
  • Lens: Acrylic
• Ambient Illumination:
  • Lamp: Less than 3000LUS
  • Sunlight: Less than 11000LUS
• Operating Temperature: -25°C ~ 55°C

Link

Size
