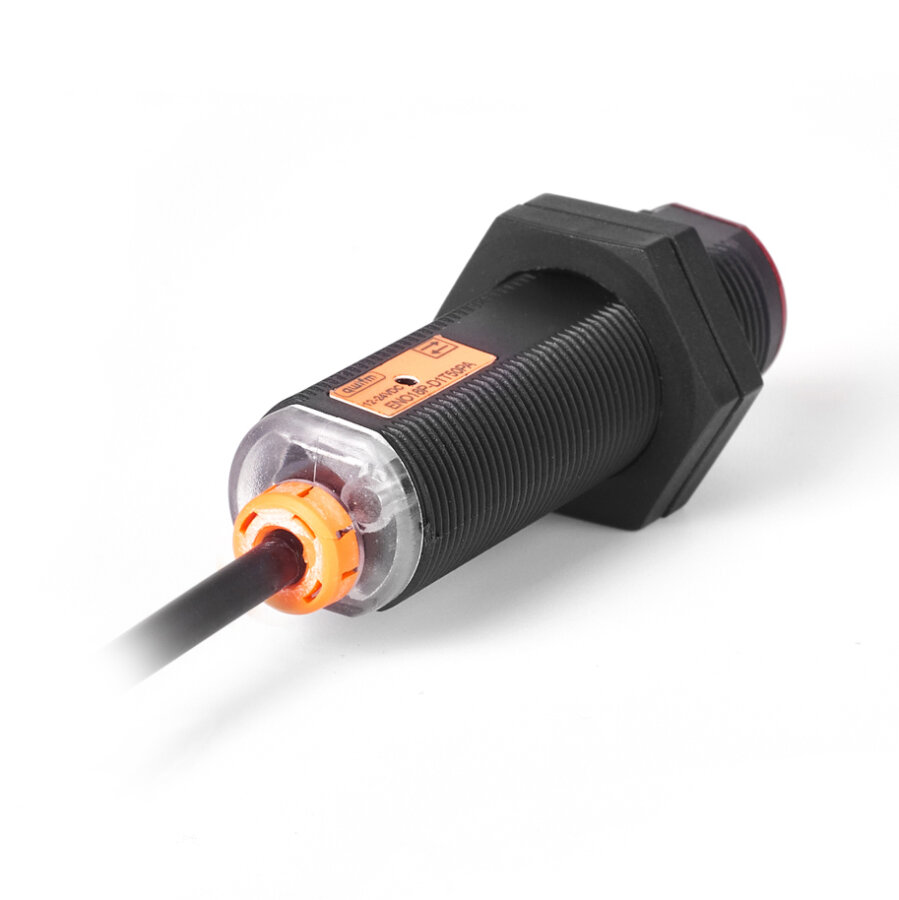

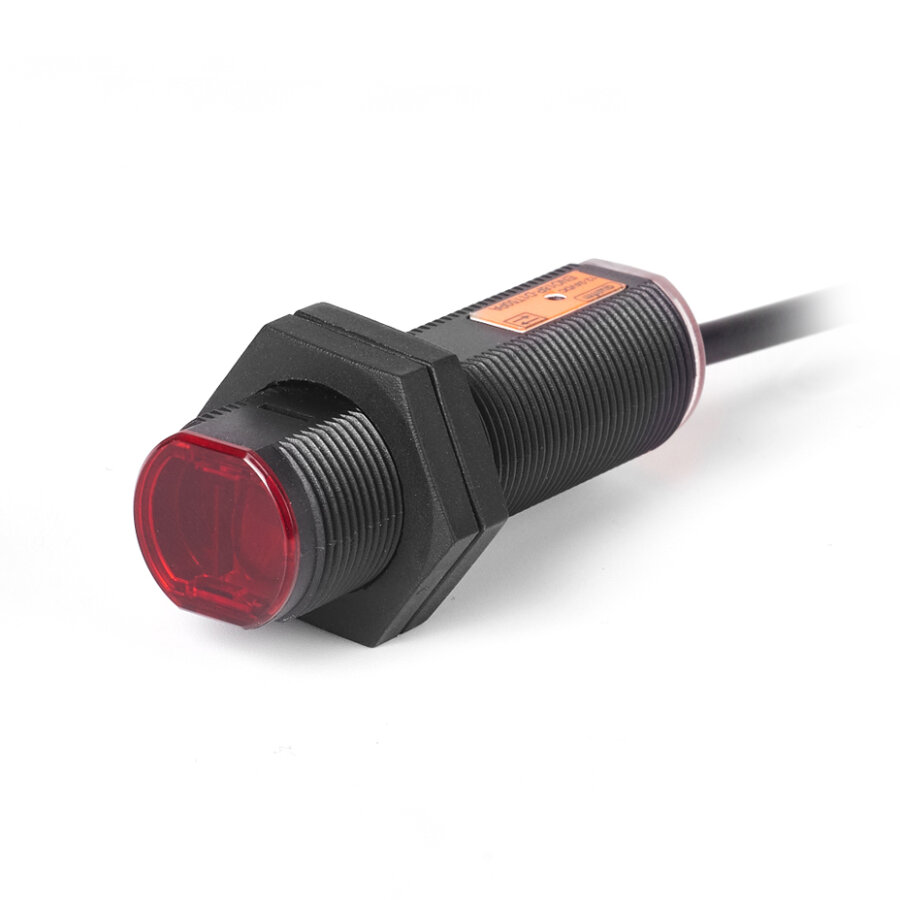

EN18P-D1S200NA 200cm NPN NO Reflector-Reflection Photoelectric Sensor

EN18P-D1S200NA 200cm NPN NO Reflector-Reflection Photoelectric Sensor

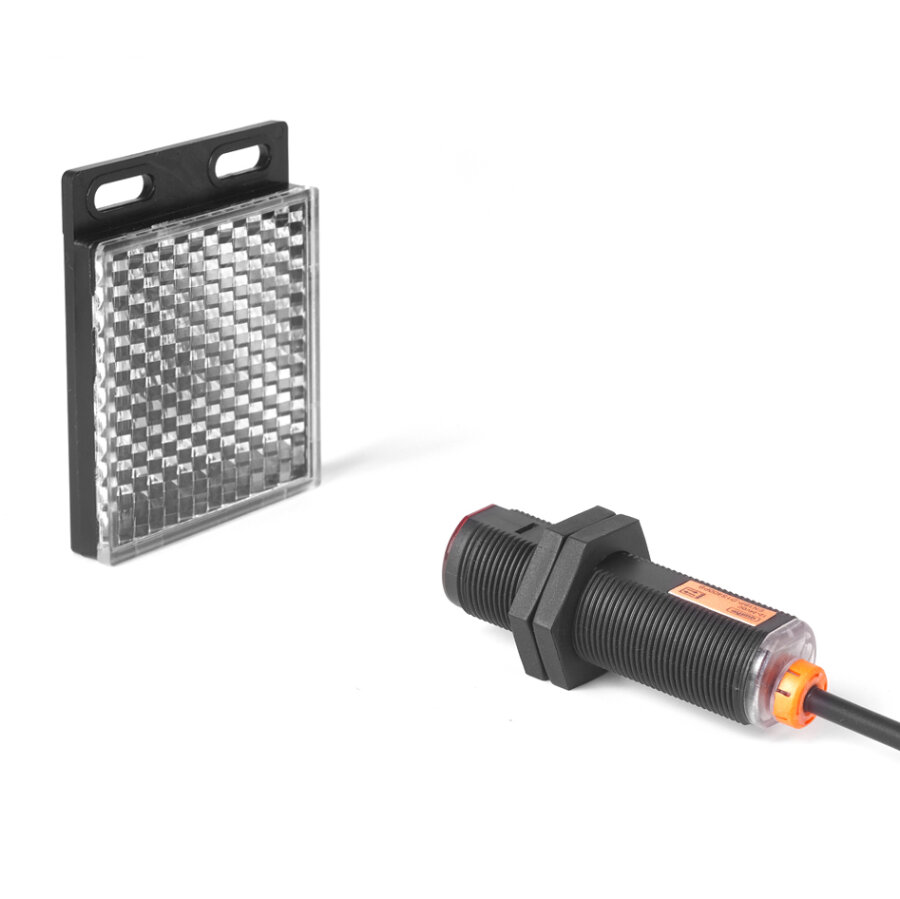

EN18P-D1S200NA 200cm NPN NO Reflector-Reflection Photoelectric Sensors are used to detect objects far from the sensor. They operate on the principle that a light wave from a laser emitted by a transmitter is reflected from a reflector and detected by a detector housed in the same housing. Applications for such sensors include, for example, creating protective zones around operating machines or detecting production elements far from the sensor.

Application Areas

• Monitoring Production Lines: Detecting the presence or absence of products or elements, controlling the flow of goods.
• Object Counting: Precise counting of parts on conveyor belts or in packaging processes.
• Position Detection: Precise determination of the position of an element or tool.

Datasheet

Features

• Sensor Type: Retroreflective
• Objects Detected: Opaque materials
• Response Time: 1ms
• Supply Voltage: 12-24VDC
• Sensing Distance: 200cm
• Operating Mode: NPN NO
• Light: Red LED 660nm / IR 880nm
• Product Standard: GB/T14048.10-2016
• Protection: IP66
• Material:
  • Shell: Plastic
  • Lens Cover: Acrylic
  • Lens: Acrylic
• Ambient Illumination:
  • Lamp: Less than 3000LUS
  • Sunlight: Less than 11000LUS
• Working Environment Temperature: -25° ~ 55°C

Link

Size
