EN50-UE1000JC 1000cm NO+NC Through-beam Photoelectric Sensor
Product code :
SNS.CCM.01.000252
1.999,50
TL
+
VAT
2.399,40
TL
Notify Me When It Arrives
Notify Me When It Arrives

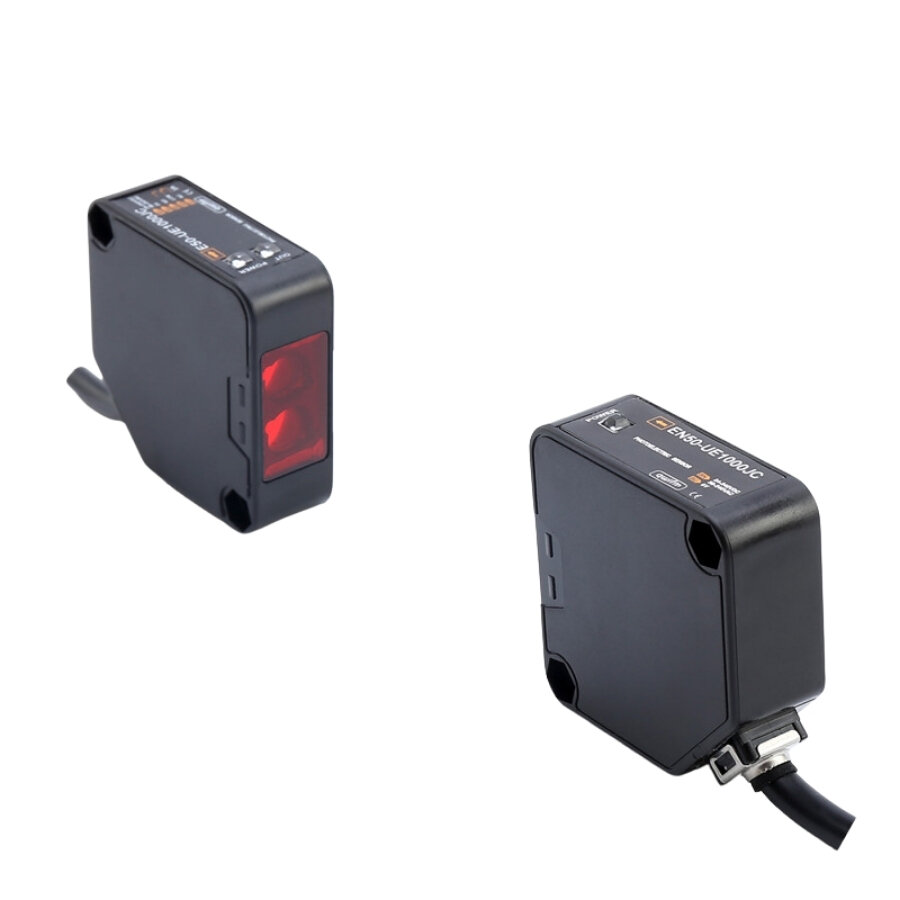

EN50-UE1000JC 1000cm NO+NC Through-beam Photoelectric Sensor
The EN50-UE1000JC 1000cm NO+NC Through-beam Photoelectric Sensor operates on the principle that the receiver sensor detects the light wave from a laser sent by the transmitter sensor. Applications for such sensors include, for example, creating protective zones around operating machines or detecting production elements far from the sensor.
Application Areas
- Monitoring Production Lines: Detecting the presence or absence of products or elements, controlling the flow of goods.
- Object Counting: Precise counting of parts on conveyor belts or in packaging processes.
- Position Detection: Precise determination of the position of an element or tool.
Features
- Sensor Type: Through-beam
- Response Time: 1ms
- Supply Voltage:
- 36-240VAC 50-60Hz
- 24-240VDC
- Sensing Distance: 1000cm
- Relay Control Output:
- 30VDC 3A
- 250VAC 3A
- Contact Form: NO+NC
- Product Standard: GB/T14048.10-2016
- Protection: IP64
- Ambient Illumination:
- Lamp: Less than 3000LUS
- Sunlight: Less than 11000LUS
- Operating Temperature: -25° ~ 55°C
Connection
Size
