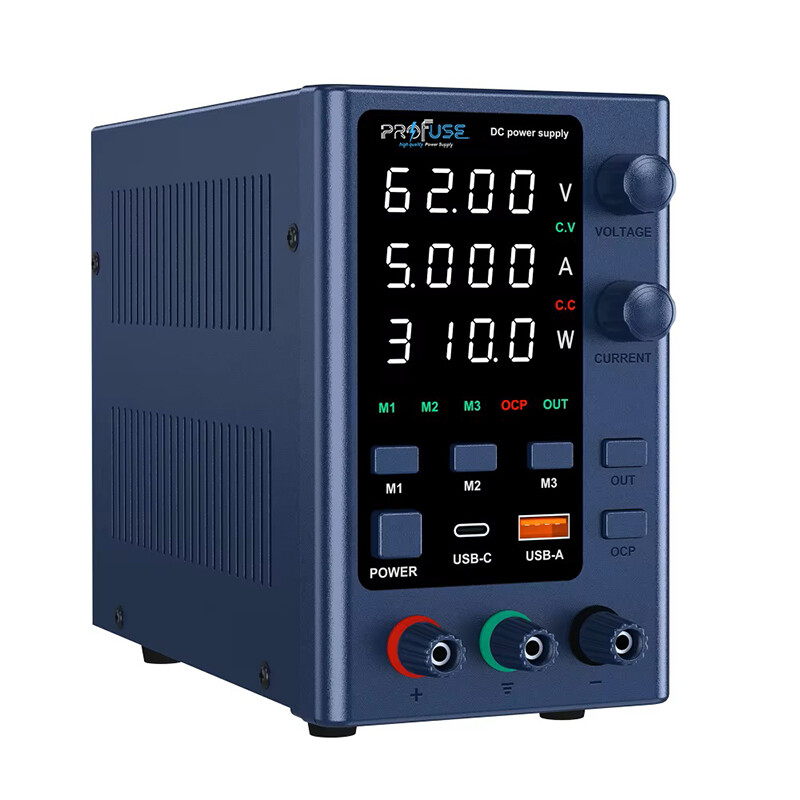

EPS6205 62V 5A Adjustable DC Power Supply

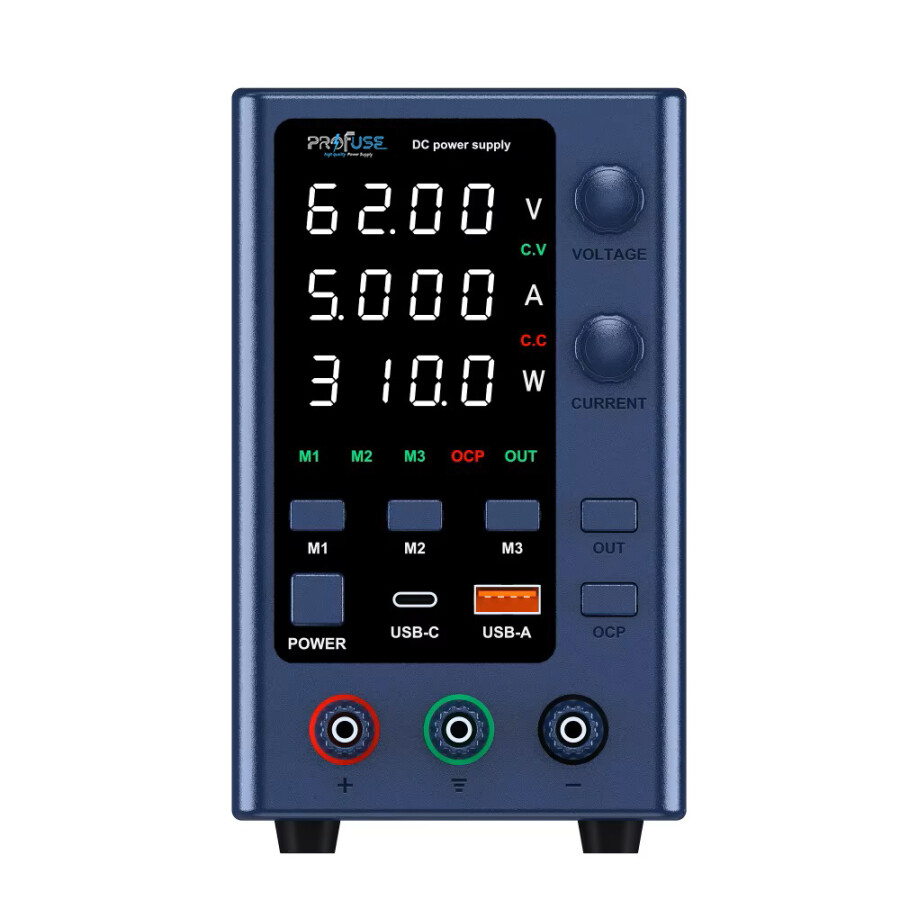

EPS6205 is a high precision DC power supply that can provide up to 5A output between 0-62V. There are one setting encoder on the product that allows you to make voltage and current adjustments. When these encoders that allow adjustment are pressed, the setting sensitivity can be changed.

EPS6205 model has a memory feature. You can save the voltage-ampere data you set with the M1, M2, M3 keys on the device, and then you can quickly access that setting with the saved key.

The product does not provide output directly when it is on. The output button must be pressed for it to provide output. The product provides output when the green light is on. In addition, there is an OCP short circuit overcurrent protection button on the product. OCP is a function that protects against overcurrent in short circuit situations.

EPS6205 is lighter than old-style power supplies thanks to its modern design and circuit structure. It also has USB and Type-C outputs that allow charging phones and similar 5V devices.

Features:

Model: EPS6205
Input: 220V AC (socket)
Output Voltage: 0-62.00V
Current: 0-5.00A
Resolution: 0.01V / 0.001A
Accuracy: 0.5%±20
OVP: High Voltage Protection
OCP: High Current Protection
OPP: High Power Protection
OTP: High Temperature Protection
SCP: Short Circuit Protection
Dimensions: 90x190x145mm
Weight: 1.15kg

Product Contents:

EPS6205 Power Supply
AC Power Cable
English User Manual
2 Pcs Crocodile Probe Cable
