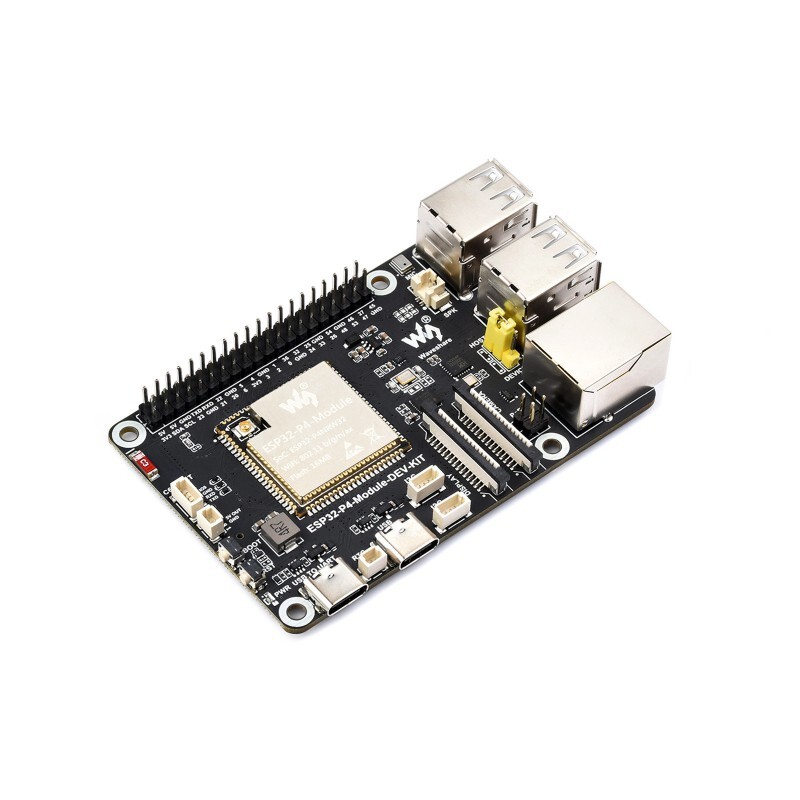

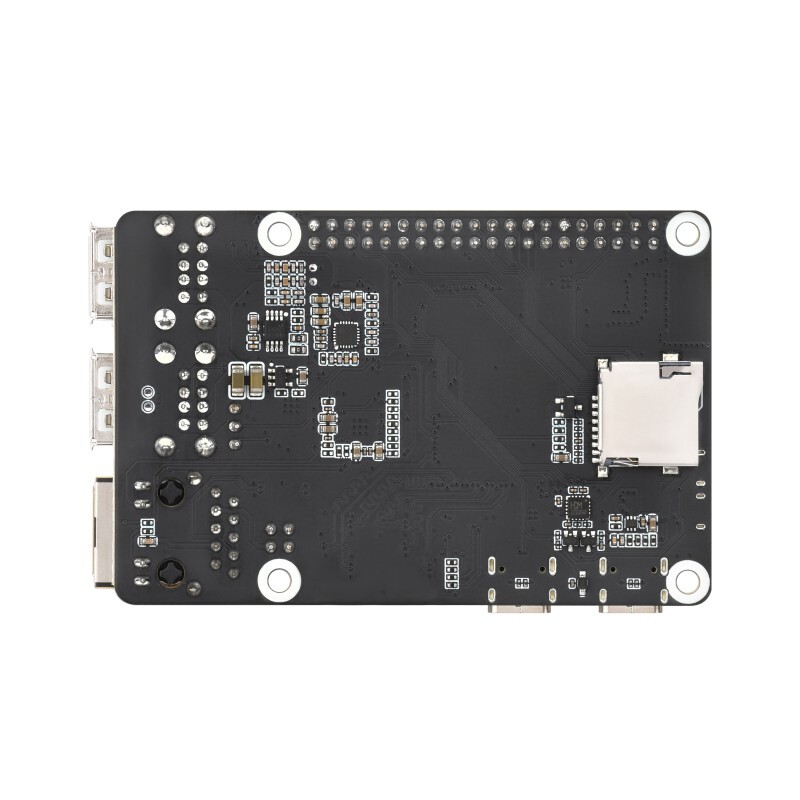

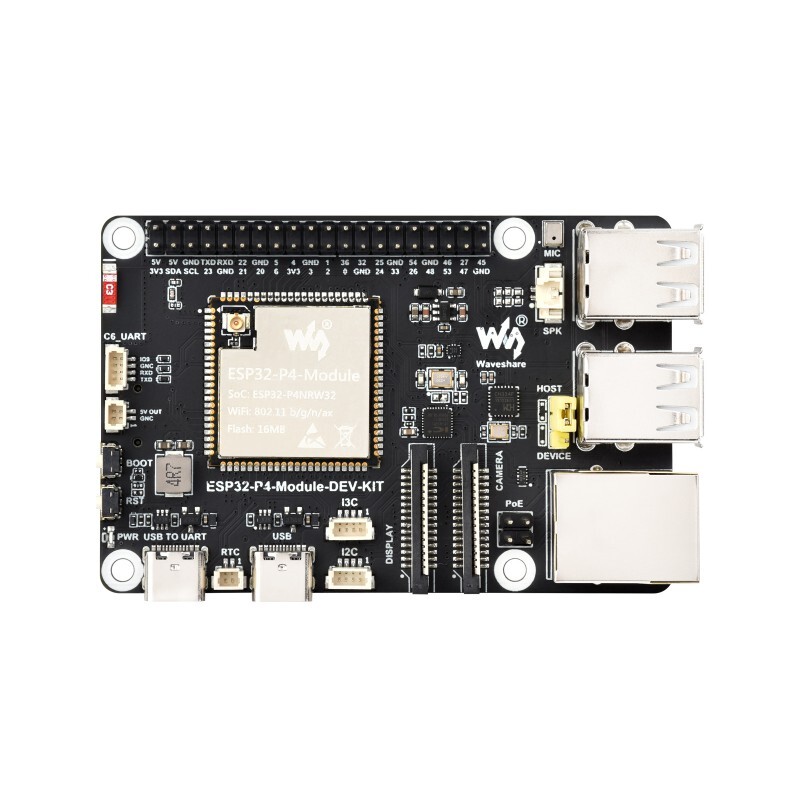

ESP32-P4-Module High-Performance Development Board
The ESP32-P4-Module High-Performance Development Board is an ESP32-P4-based multimedia development board with an integrated ESP32-C6, supporting Wi-Fi 6 and Bluetooth 5 wireless connectivity. It features rich Human-Machine interfaces, including MIPI-CSI (with integrated Image Signal Processor), MIPI-DSI, SPI, I2S, I2C, LED PWM, MCPWM, RMT, ADC, UART, TWAI, and more.
Furthermore, it supports USB OTG 2.0 HS, a split PoE function, an RJ45 Ethernet port, and a 40PIN GPIO header, compatible with some Raspberry Pi HATs, enabling a wider range of applications. The ESP32-P4 uses a 400 MHz dual-core RISC-V processor and utilizes up to 32 MB of PSRAM. It provides low-capacity, high-performance, and low-power multimedia development capabilities with USB 2.0, MIPI-CSI/DSI, an H.264 encoder, and other peripherals.
It also integrates a Digital Signature Peripheral and a dedicated Key Management Unit to ensure secure authentication and transactions. Designed specifically for high-performance and high-security applications, the ESP32-P4-Module-DEV-KIT is designed to handle human-machine traffic, efficient edge computing, and I/O expansion.
Manual
Features
- SKU: 30560
- Processor
- Equipped with a RISC-V 32-bit dual-core processor (HP system), it includes DSP and instruction set extensions, as well as floating-point units (FPUs). Up to 400 MHz.
- Equipped with a RISC-V 32-bit single-core processor (LP system), the main register is up to 40 MHz.
- Equipped with an ESP32-C6 WIFI/BT coprocessor, expandable via SDIO, WIFI 6/Bluetooth 5, and other add-ons.
- Memory
- 128 KB high-performance (HP) system buffer capacity (ROM)
- 16 KB low-power (LP) system buffer capacity (ROM)
- 768 KB high-performance (HP) L2 memory (L2MEM)
- 32 KB low-power (LP) SRAM
- 8 KB tight, regular system memory (TCM)
- Packaged with 32 MB PSRAM, the module is 16 MB Nor Flash file integrated
- Peripheral broadcasts
- Onboard 2*20 base pins, 28 programmable GPIO, support for various expansion devices
- Onboard Type-A USB 2.0 OTG interface, 100 Mbps Ethernet interface, SDIO3.0 TF card slot, Type-C UART port for convenient use in different scenarios
- Onboard speaker interface, microphone, 3.5mm headphone jack, codec chip, and power amplifier chip can be used to meet ideal audio specifications
- Onboard MIPI-CSI high-performance camera module, supporting Full HD 1080P image capture and tagging, integrated image signal processor (ISP) and H264 video encoder, supporting H.264 and JPEG video processing (1080P @30fps), suitable for computer vision, machine learning, and other applications Easy to implement
- Built-in MIPI-DSI high-efficiency screen display interface, integrated pixel processing accelerator (PPA), 2D lines JPEG image decoding (1080P @30fps) acceleration controller (2D DMA), providing powerful support for high-efficiency screen display and smooth HMI. It is suitable for applications in smart home central control displays, industrial central control displays, vending machines, and other scenarios.
- The dedicated PoE module module makes the development board's power supply mode more flexible, and only one network cable can be connected to the PoE device, allowing the ESP32-P4-Module-DEV-KIT to be used for networking and power supply.
