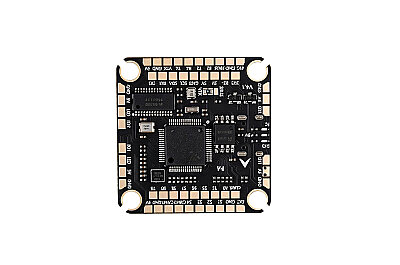

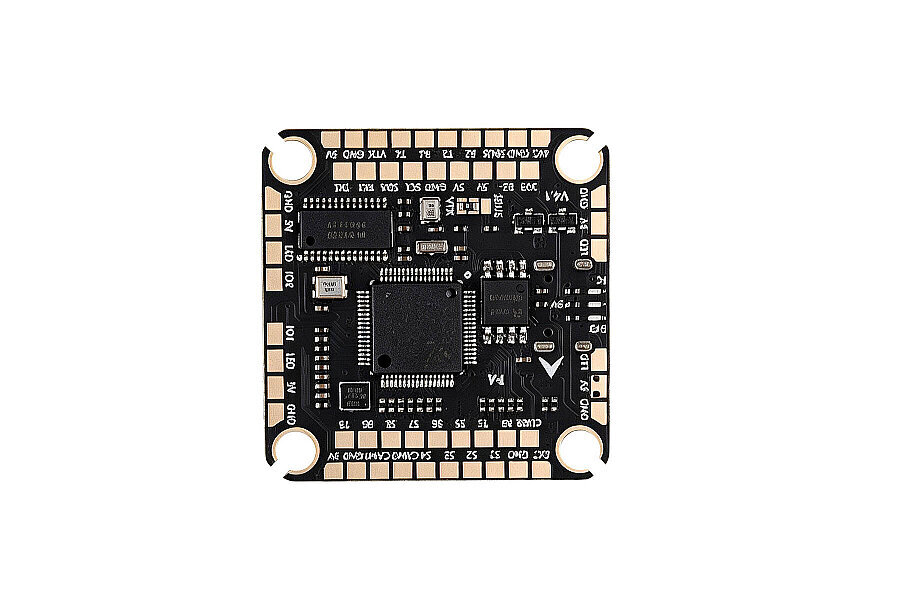

F405 Flight Controller
The F405 Flight Controller is designed for full compatibility with "Quadro" 4-in-1 ESC models. The high processing speed of the STM32F405 microcontroller, combined with the high current-handling capacity of the Quadro ESC series, ensures maximum control and stability for professional UAV platforms.
Specifications
- Main Processor (MCU): STM32F405 (168MHz high processing speed)
- Gyroscope / Sensor (Gyro): High-precision 6-axis gyroscope & accelerometer
- Input Voltage: Supports 3S – 6S LiPo
- BEC Outputs: 5V and 9V / 10V (clean/filtered power for VTX, receiver, and FPV cameras)
- OSD: Integrated Betaflight SPI OSD (compatible with digital/analog systems)
- Blackbox: Onboard flash memory for flight data logging
- Serial Ports (UARTs): 6x UART interfaces (for GPS, receiver, VTX, and telemetry connections)
- Supported Protocols: Dshot150 / 300 / 600, PWM, Oneshot, Multishot
- Receiver-Compatible Protocols: SBUS, CRSF (TBS Crossfire), ELRS, IBUS, DSMX
- Mounting Pattern: 30.5 × 30.5 mm (compatible with M3 / M4 vibration-dampening grommets)
- Weight: ~7 – 8 g (extremely lightweight design)
