Hobbywing QuicRun Fusion Pro 2300KV FOC 2-in-1 ESC & Motor System

Ratings & Reviews (0)
Comment
Show More: Drone Motors
Brand: Hobbywing
Product Code: DRN.DRM.01.000071
9,675.00 TL + VAT
VAT Included: 11,610.00 TL

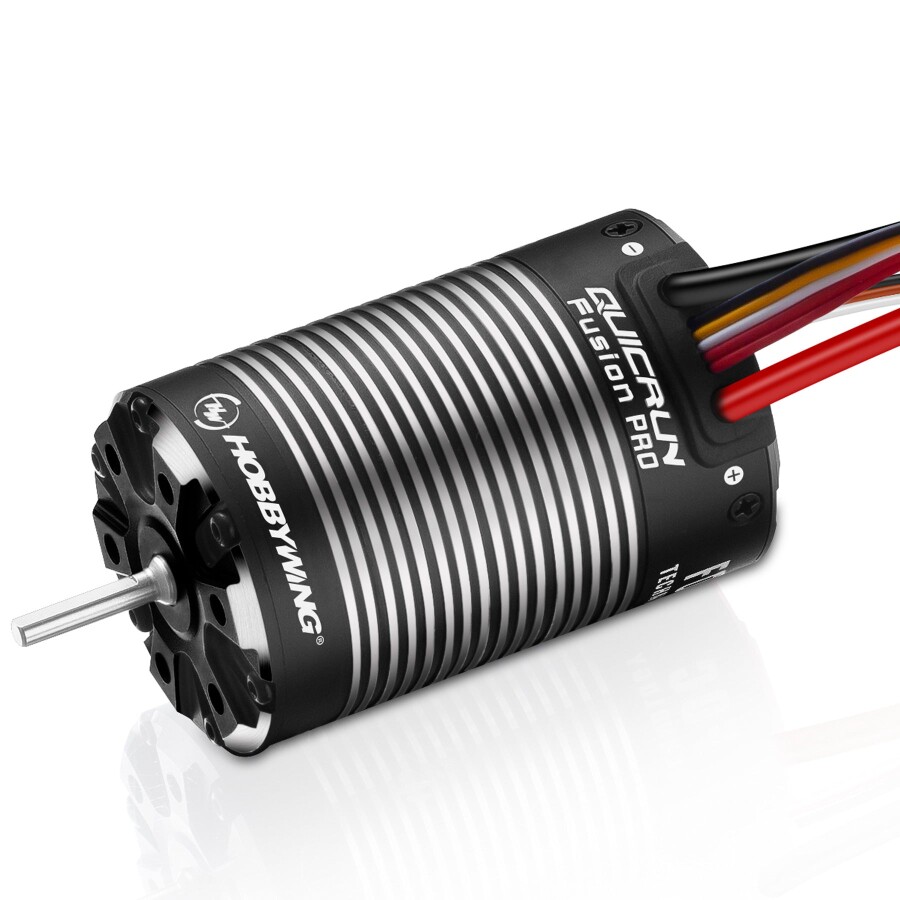

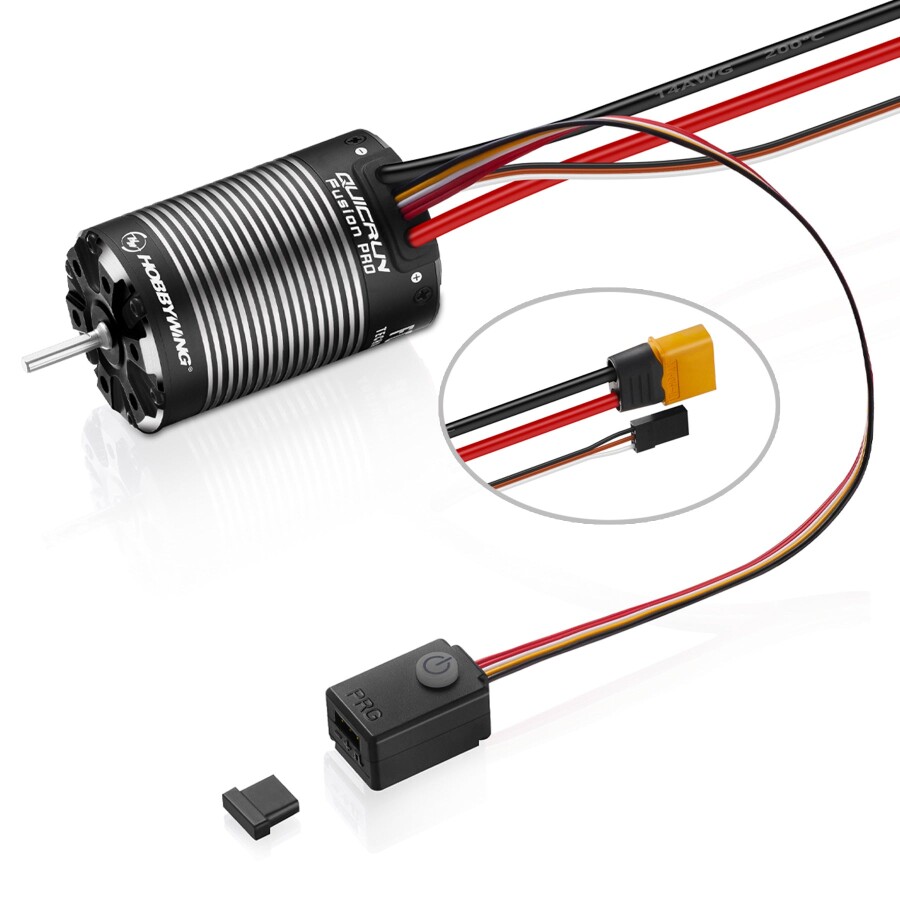

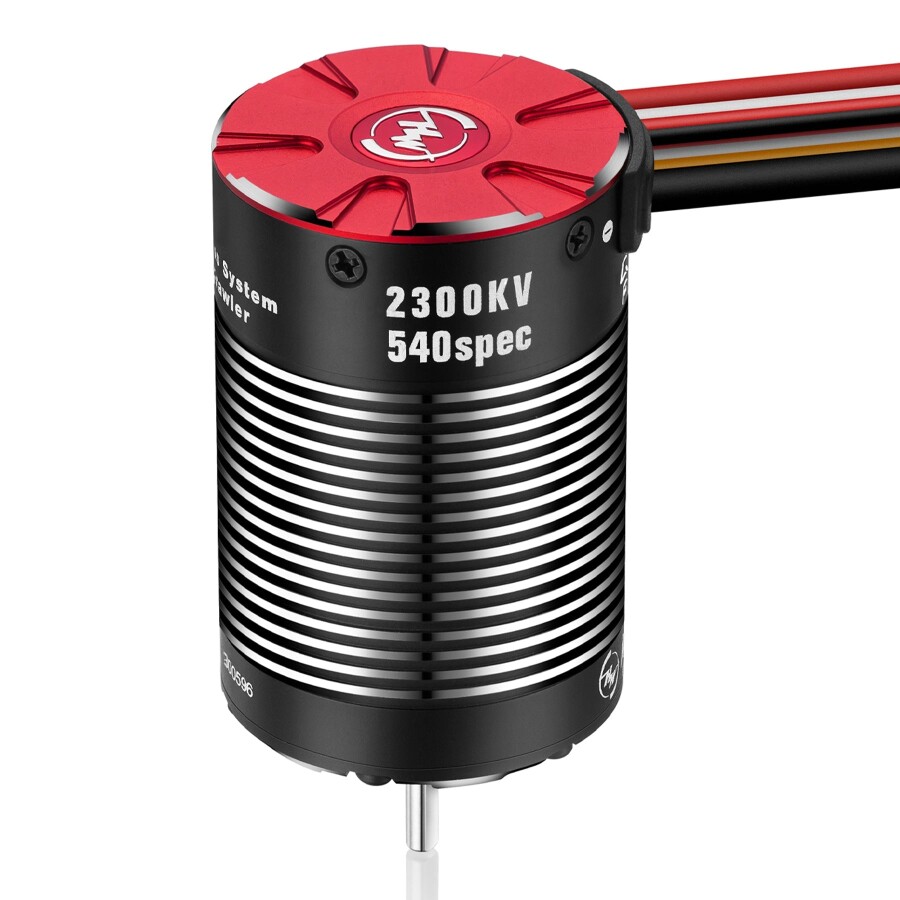

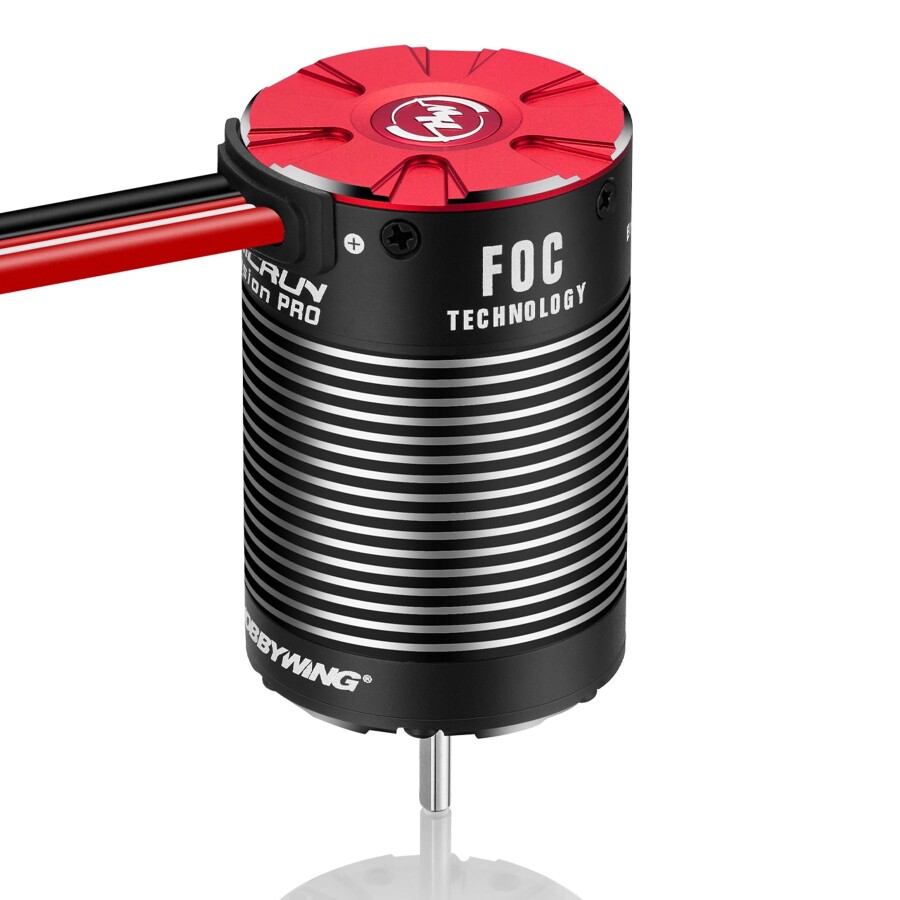

Hobbywing QuicRun Fusion Pro 2300KV FOC 2-in-1 ESC & Motor System

Hobbywing QuicRun Fusion Pro 2300KV FOC 2-in-1 ESC & Motor System. The integrated design of the ESC and motor significantly reduces the overall volume and weight, making the layout and wiring of the vehicle chassis simpler and more convenient.


In FOC driving mode, low-speed torque is strong. Smooth operation at extremely low speeds is far superior to common sensor-based brushless power systems, even better than brushed power systems. Thanks to the sine wave driving mode, the entire system has high efficiency, low heat, and effectively extends the endurance time; the motor runs quieter and smoother.
The protection grade of the entire system is IP67 and has excellent waterproof and dustproof performance. In various weather conditions, the entire system can easily handle complex road surfaces containing silt, ice, snow, and water.

Intelligent torque output and closed-loop speed control make control convenient, allowing you to fully experience the vehicle's 1:1 cruise control and steep hill descent soft descent functions.
Active friction brake force adjustment provides unparalleled parking capability on slopes. The powerful built-in switching-mode BEC supports up to 6A continuous current and 6V to 7.4V switching, allowing you to easily operate a variety of powerful steering servos and high-voltage steering servos.

Multiple protection functions: battery low voltage protection, overheating protection, throttle loss protection, and lock-up protection.

Supports the HOBBYWING LED program box to set ESC parameters and has an independent parameter setting interface integrated with an electronic switch, making parameter adjustment easier.

Product Manual

Features


Motor KV 2300KV
Cont./Peak Current 60A/200A
Input Voltage 2-3S Lipo/6-9 Cell NiMH
BEC Output Switch Mode:6V/7.4V,6A
Input wires Red-14AWG-330mm*1 / Black-14AWG-330mm*1
Input connector XT60 (factory installed)
Programming Port Independent programming interface(switch position
Size / Weight 37mm x 58mm / 209g (w/ wires+plug)
Shaft dim 3.175mm / 16mm
Motor Pole 4
