INA125P DIP-16 Instrumentation Amplifier IC

INA125, with precision voltage reference, low is a powerful, high-fidelity instrumentation amplifier. It provides full-bridge excitation and precise differential input amplification on a single integrated circuit. A single external resistor adjusts any gain from 4 to 10,000. It works with single (+2.7V - +36V) or dual (±1.35V - ±18V) supplies.

Usage Areas

Pressure and Temperature Bridge Amplifiers

Industrial Process Control

Factory Automation

Multi-Channel Data Acquisition

Battery Powered Systems

General Purpose Device

Series	INA125P
Supply Voltage	2.7V - 36V
Number of Channels	1 Channel
Bandwidth	150 kHz
CMRR	100 dB

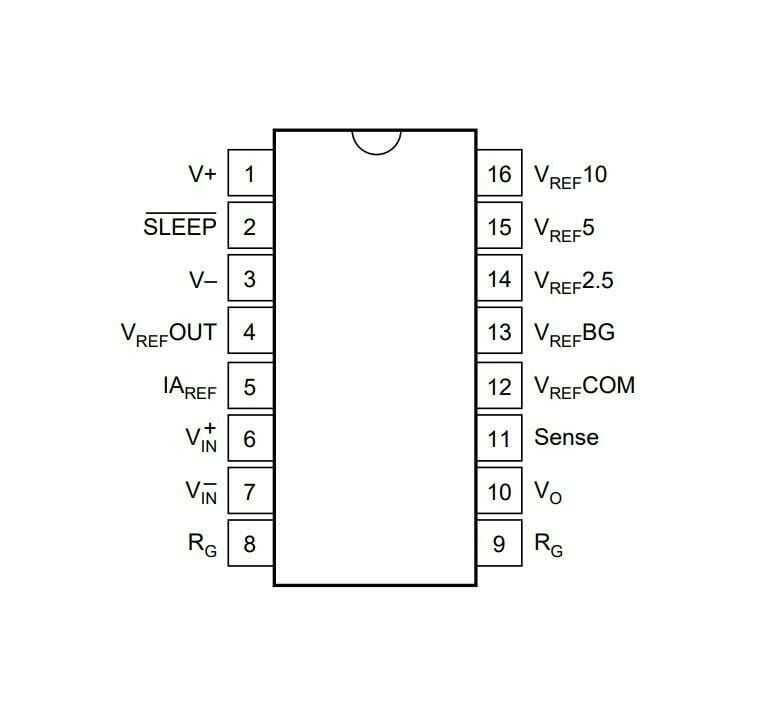

Number of Pins	16 Pin
Package Type	DIP-16

INA125P Datasheet
