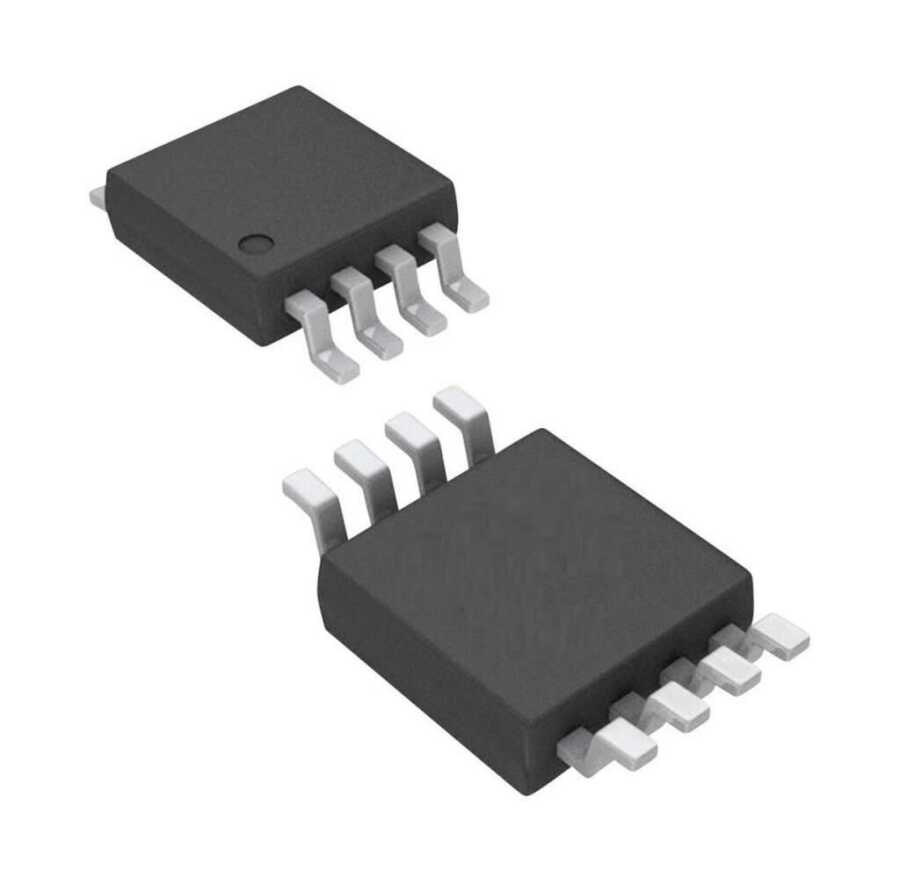

INA333AIDGKR VSSOP-8 Smd Amplifier IC

INA333 device is low power, sensitive, offering excellent accuracy It is an instrumentation amplifier. Its versatile 3-op amplifier design, small size, and low power make it ideal for a wide variety of portable applications.

A single external resistor can range from 1 to 1000 Adjusts any gain up to . The INA333 is designed to use an industry standard gain equation: G = 1 + (100 kΩ / RG).

Areas of Use

Bridge Amplifiers

ECG Amplifiers

Pressure sensors

Medical Instrumentation

Portable Instrumentation

Weighing Scales

Thermocouple Amplifiers

RTD Sensor Amplifiers

Data collection

Series	INA333AIDGKR
Supply Voltage	1.8V - 5.5V
Operating Supply Current	50 uA
Bandwidth	150 kHz
Number of Channels	1 Channel
Number of Pins	8 Pin

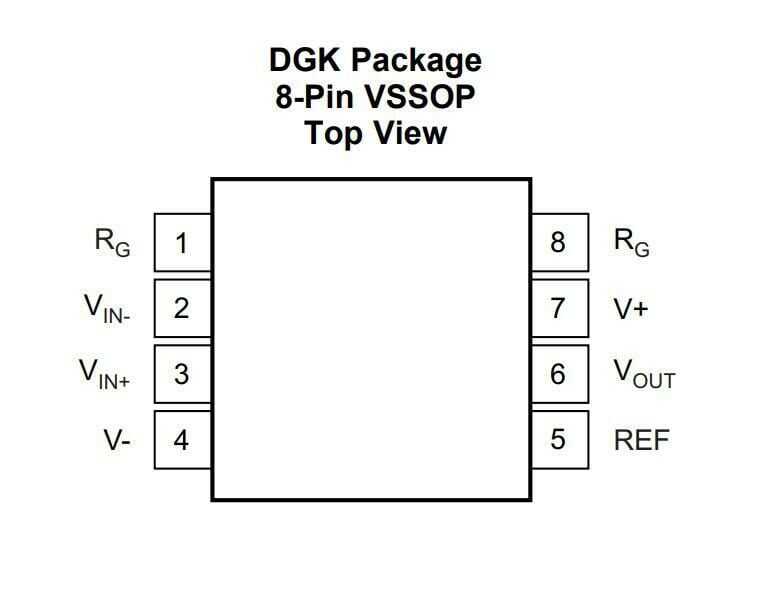

Package Type	VSSOP-8

INA333AIDGKR Datasheet
