Industrial 5P Gigabit Ethernet Switch - Full-Duplex 10/100/1000M

Industrial 5P Gigabit Ethernet Switch - Full-Duplex 10/100/1000M

The Industrial 5P Gigabit Ethernet Switch - Full-Duplex 10/100/1000M supports a power supply with a wide voltage range of 5~36V, and features built-in overvoltage protection and reverse connection protection. Designed to provide uninterrupted, high-speed data transmission in factory automation, intelligent security systems, and challenging field conditions, the Waveshare 5 Port Gigabit Switch combines industrial-grade durability with high performance.

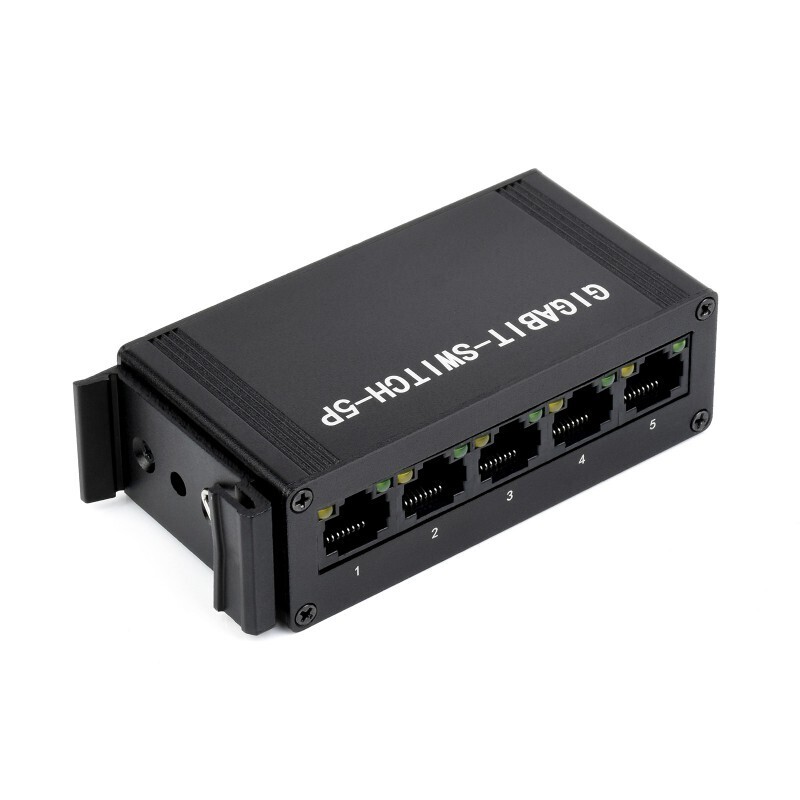

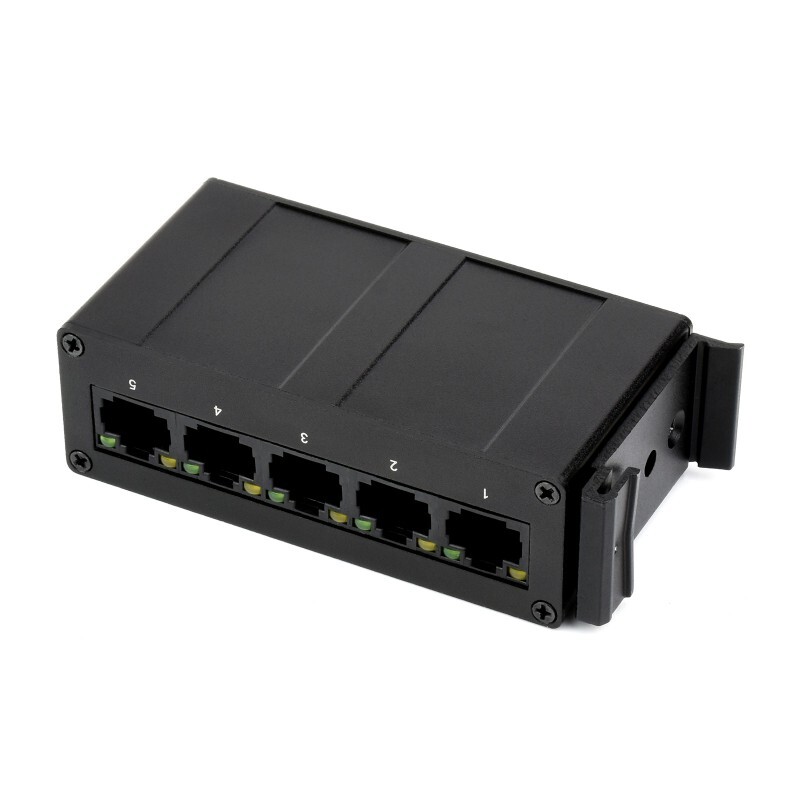

It has 5 independent RJ45 ports supporting super high speeds of 10/100/1000 Mbps.

Thanks to its surge-preventing electrical protection circuits, wide voltage supply range, and standard DIN-Rail mounting support, it offers maximum stability while taking up minimum space in your panels.

User Manual

Features

• SKU: 22496
• Chip: RTL8367N
• Built-in switch chip, 5 x port 10/100/1000M non-blocking switch architecture.
• Full duplex 10/100/1000M support for each port (half duplex 100M connection only) (Supported in 10/100M mode).
• Full/half duplex operation with IEEE 802.3x flow control and back pressure support.
• Enables linear speed transmission of large data packets of 9216 bytes.
• Overvoltage protection effectively prevents damage caused by other high-voltage power supplies.

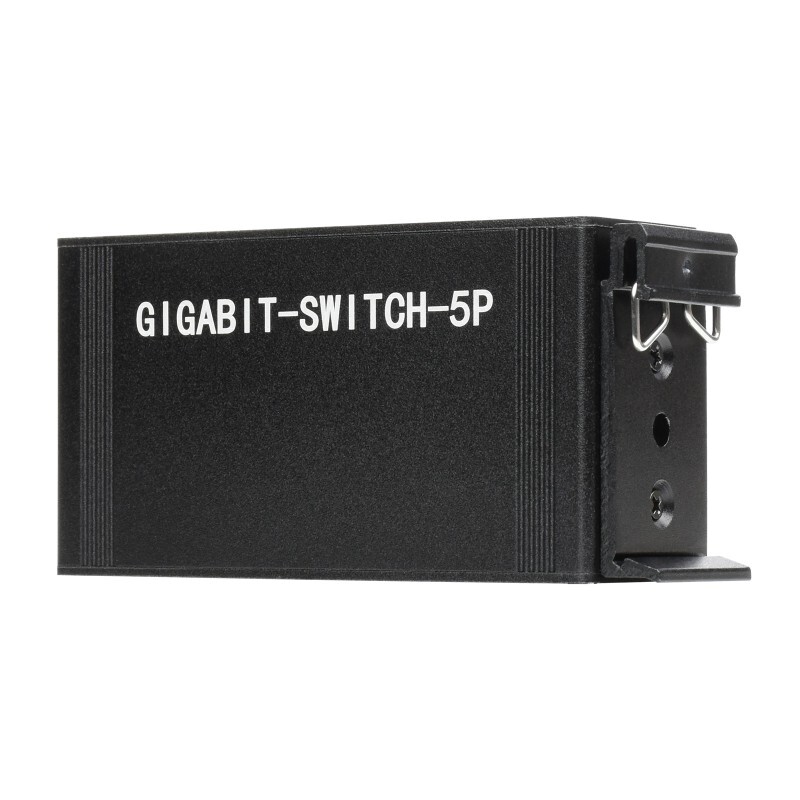

• Industrial-grade alloy housing, robust and durable, with DIN rail mounting support for easy installation.

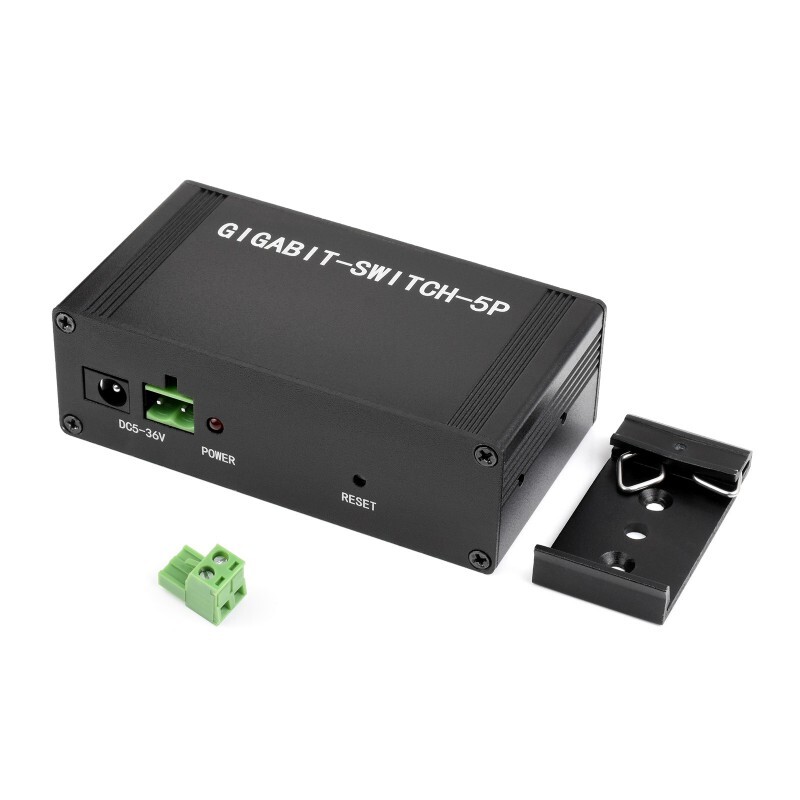

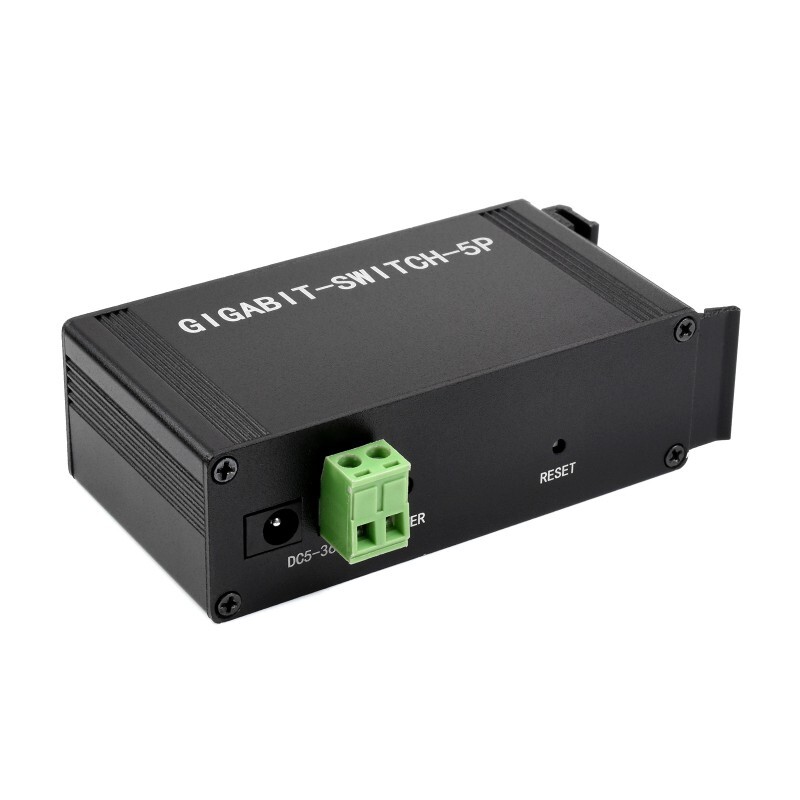

• 5~36V wide voltage power supply, dual power interface (DC interface and terminal block), built-in overvoltage protection, reverse connection protection.
• Supports 25 mm standard rail.

Package Contents

• Gigabit-Switch-5P x1
• Power supply screw terminal x1
• 12V 1A power adapter x1
