Industrial ESP32-S3 Wi-Fi and Bluetooth Controller Board - RS485 and CAN Interface
1.335,00
TL
+
VAT
1.602,00
TL
Notify Me When It Arrives
Notify Me When It Arrives

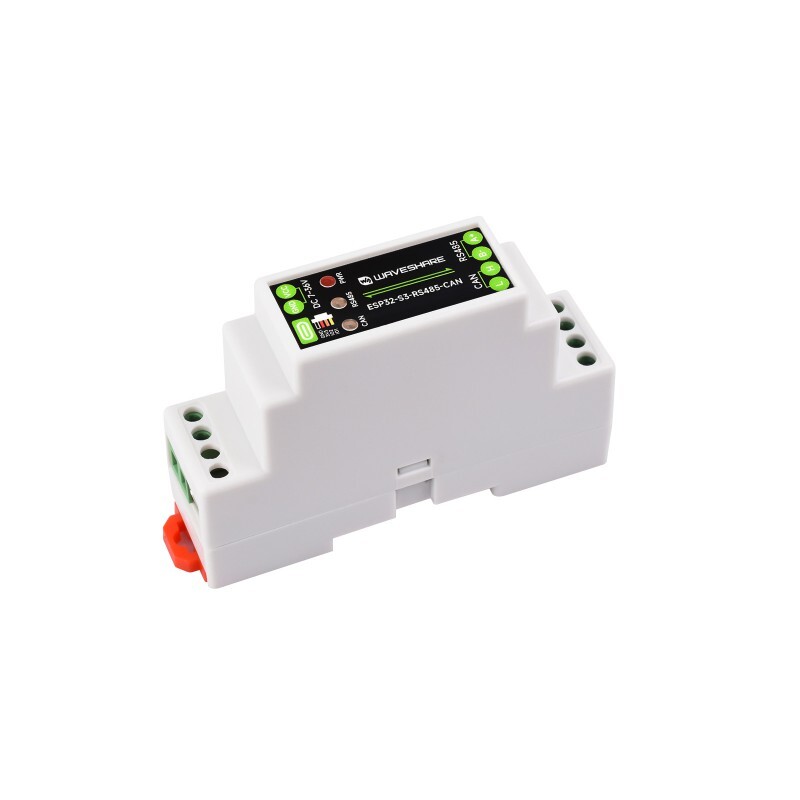

Industrial ESP32-S3 Wi-Fi and Bluetooth Controller Board - RS485 and CAN Interface
The Industrial ESP32-S3 Wi-Fi and Bluetooth Controller Board - RS485 and CAN Interface is a high-performance, industrial-grade control module based on the ESP32-S3 microcontroller. It combines Wi-Fi, Bluetooth 5 (LE), isolated RS485 and CAN interfaces, and multiple protection circuits, making it ideal for industrial automation and IoT applications.
Features
- SKU: 32154
- Based on the ESP32-S3 microcontroller with an Xtensa 32-bit LX7 dual-core processor running at up to 240 MHz
- Integrated 2.4 GHz Wi-Fi and Bluetooth 5 (LE) dual-mode with excellent RF performance Communications
- Built-in isolated RS485 interface for connecting Modbus industrial modules or sensors
- Built-in isolated CAN interface for easy connection to CAN devices
- Built-in pin header for external device connection
- USB Type-C port for power supply, software download, and debugging
- Power supply screw terminal supports wide voltage input of 7–36 V, suitable for industrial environments
- Built-in RTC chip supports scheduled tasks
- Built-in digital isolation to prevent external signal interference
- Built-in power supply isolation provides stable isolated voltage without the need for an external power supply
- RS485 TX/RX and CAN indicators for monitoring module status

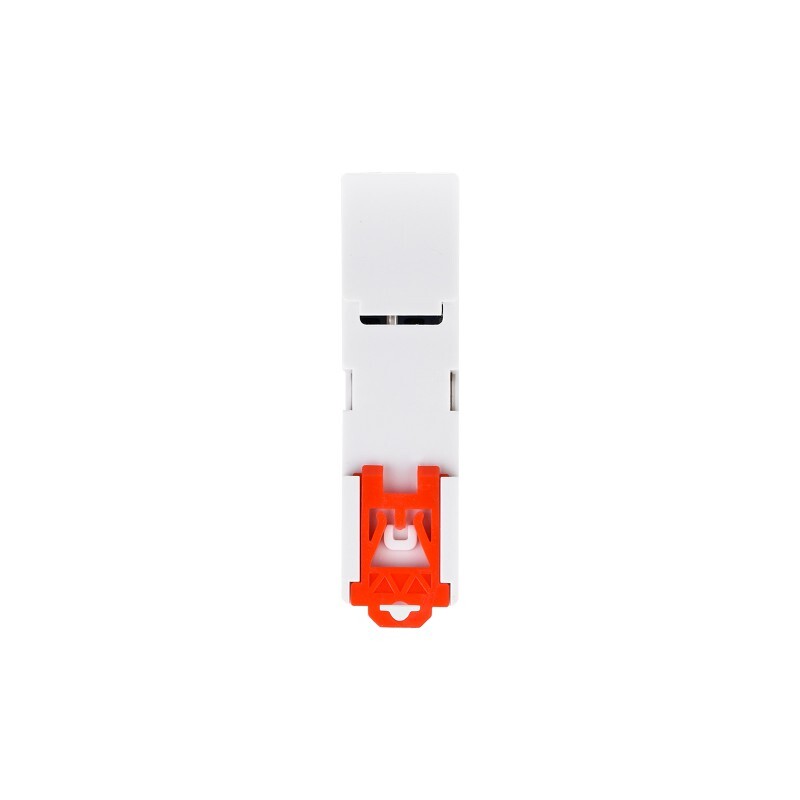

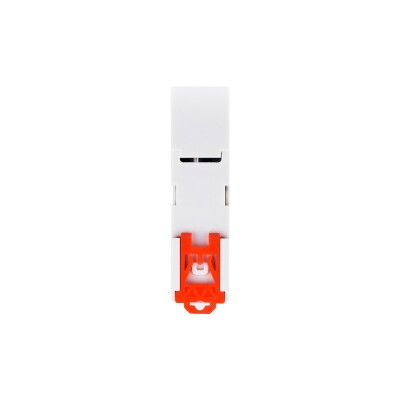

- Rail-mounted protective housing design, safe and easy to install
Technical Features
| Microcontroller | ESP32-S3 (Default module: ESP32-S3R8, customizable for other modules) | |
|---|---|---|
| Wireless communication | 2.4GHz WiFi (802.11 b/g/n), Bluetooth 5 (LE) | |
| USB | Connector | USB Type-C |
| Power supply | 5V | |
| Functions | Power supply, USB communication, firmware downloading, etc. | |
| ISOLATED RS485 | Connector | Screw terminal |
| Direction control | Automatically controlled via main controller hardware flow settings | |
| Protection | TVS diode, surge protection & ESD protection | |
| Resistor | Onboard reserved 120R matching resistor, NC by default, enabled via jumper | |

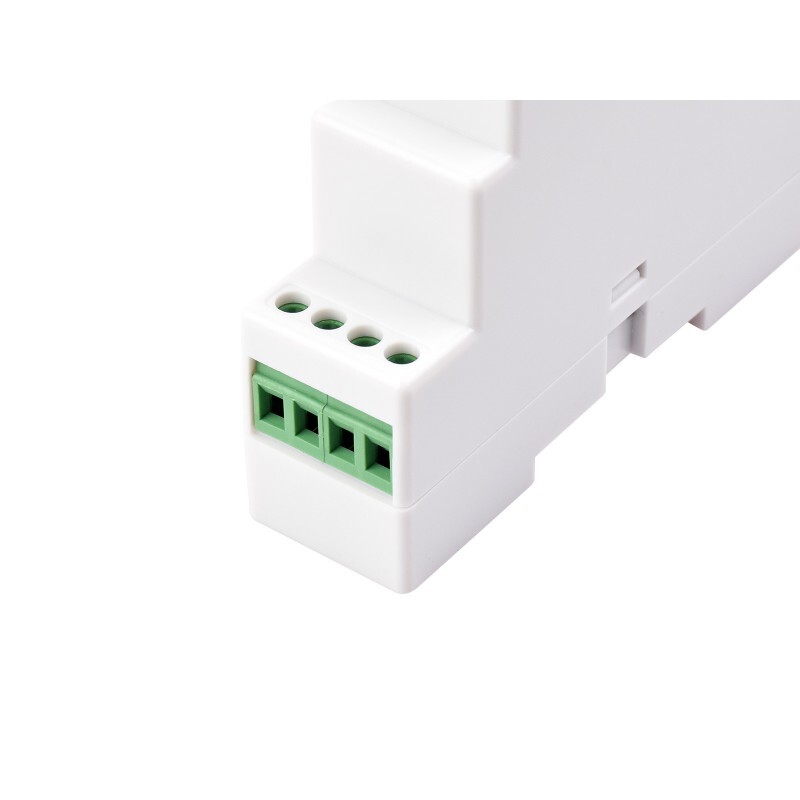

| ISOLATED CAN | Connector | Screw terminal |
| Direction control | Hardware automatic control | |
| Protection | TVS diode, surge protection & ESD protection | |
| Resistor | Onboard reserved 120R matching resistor, NC by default, enabled via jumper | |

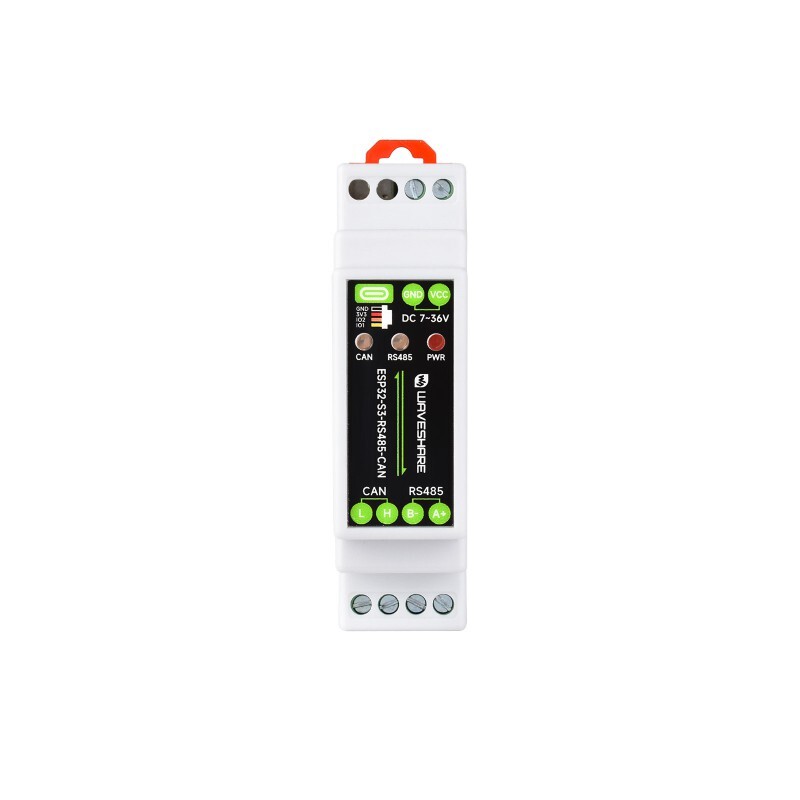

| LED indicators | PWR indicator | Red power indicator, lights up when there is USB connection and voltage is detected |
| RS485 indicator | lights up green when the RS485 port sends data lights up blue when the RS485 port receives data | |
| CAN indicator | blinks during data transmission | |

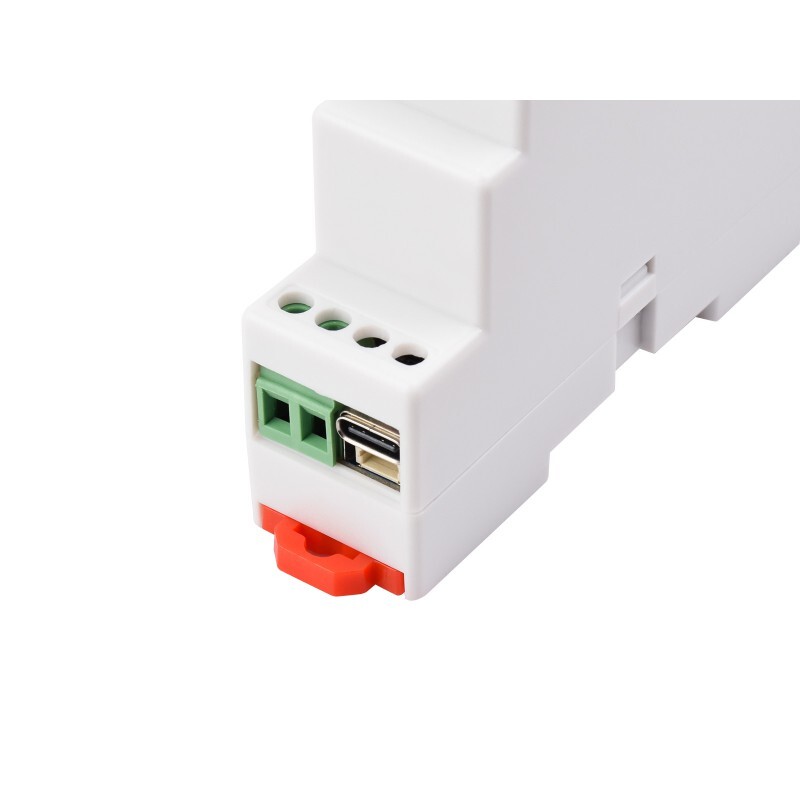

| power supply Screw terminal | Voltage range | 7V~36V |

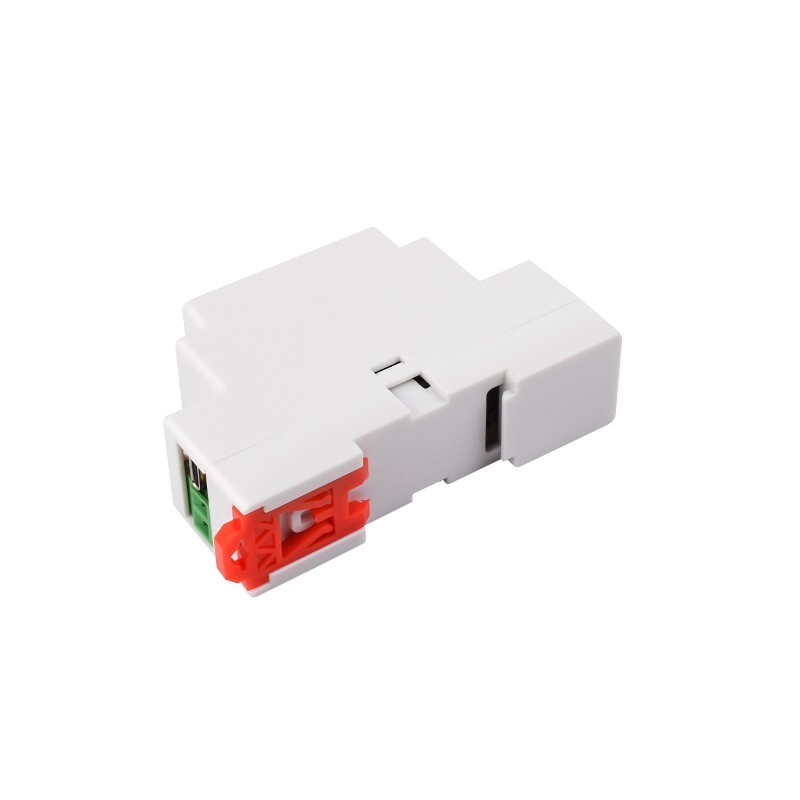

| Appearance | Enclosure | Rail-mount protective case |

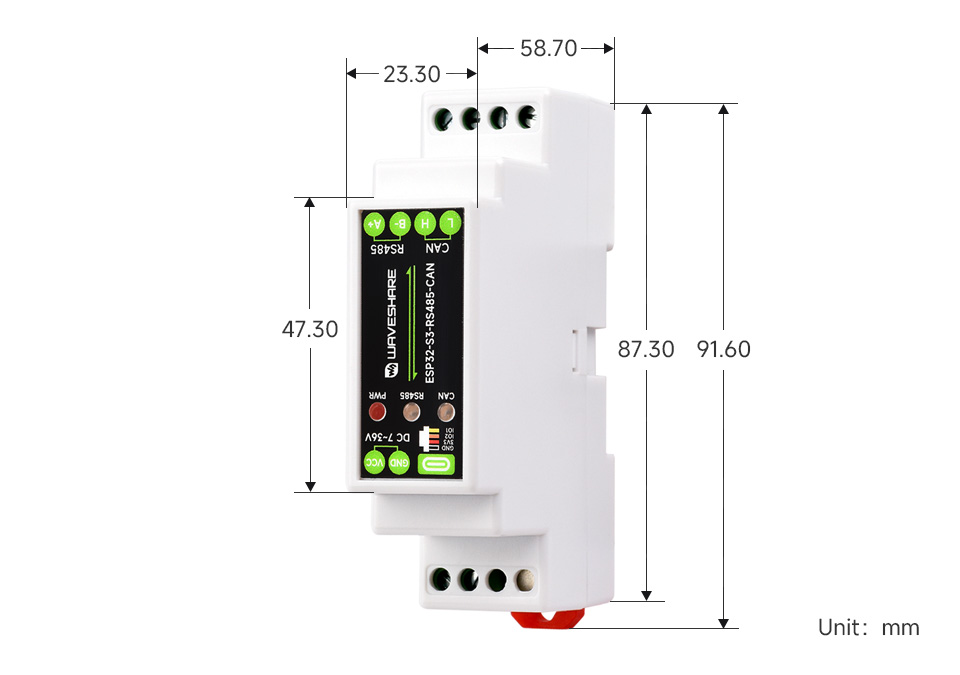

| Dimensions | 91.6×23.3×58.7(mm) | |
