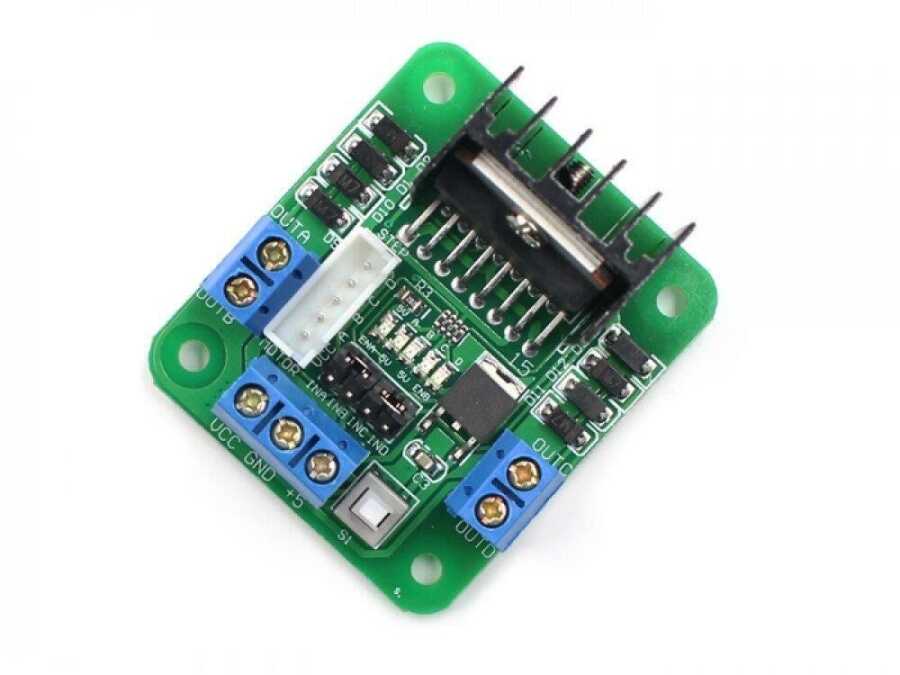

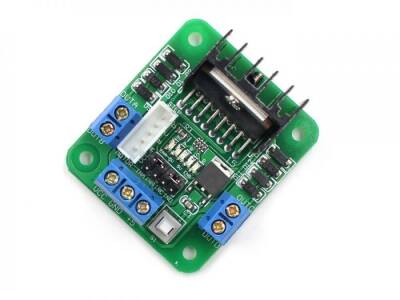

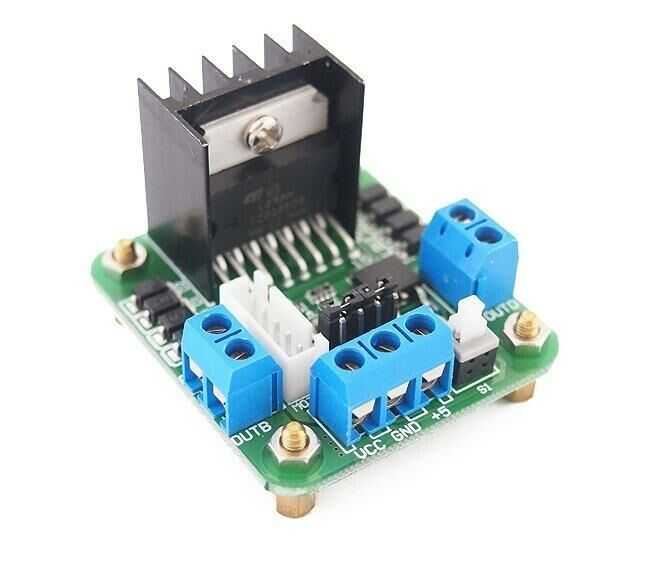

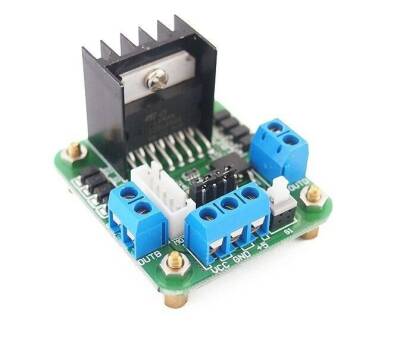

L298 Dual Motor Driver Board with Voltage Regulator (Green PCB)



With the motor driver card made with L298 integrated circuit, you will be able to easily run your program while driving DC motors or stepper motors without the need to install an extra circuit. !



Using the L298 integrated H Bridge integrated circuit as the motor driver, it provides the opportunity to drive dual motors. In this way, you can drive two DC Motors or 1 stepper motor with powers up to 12V and 2A.



Vcc, GND and 5V can be used for motor supply.  ;

Driver: L298N Dual H Bridged DC Motor Control

Operating Range: 5V~35V

Max Average Current: 2A

Instantaneous Current Rise (max): 3A

Logic Level Power Vss: 5V ~7V (There is a 5V regulator circuit on the board for >7V)

Logic Level Power: 0~36mA

Logic Signal Input Ratio: ( Low: -0.3 V ≤ 1.5V ) ( High: 2.3V ≤ Vin ≤ Vss)

Max Power Dissipation: 20W (Temperature T=75°C)

Driver Board Dimensions: 55mm x 49mm x 33mm

Weight: 39g.

Direction indicator with LED
