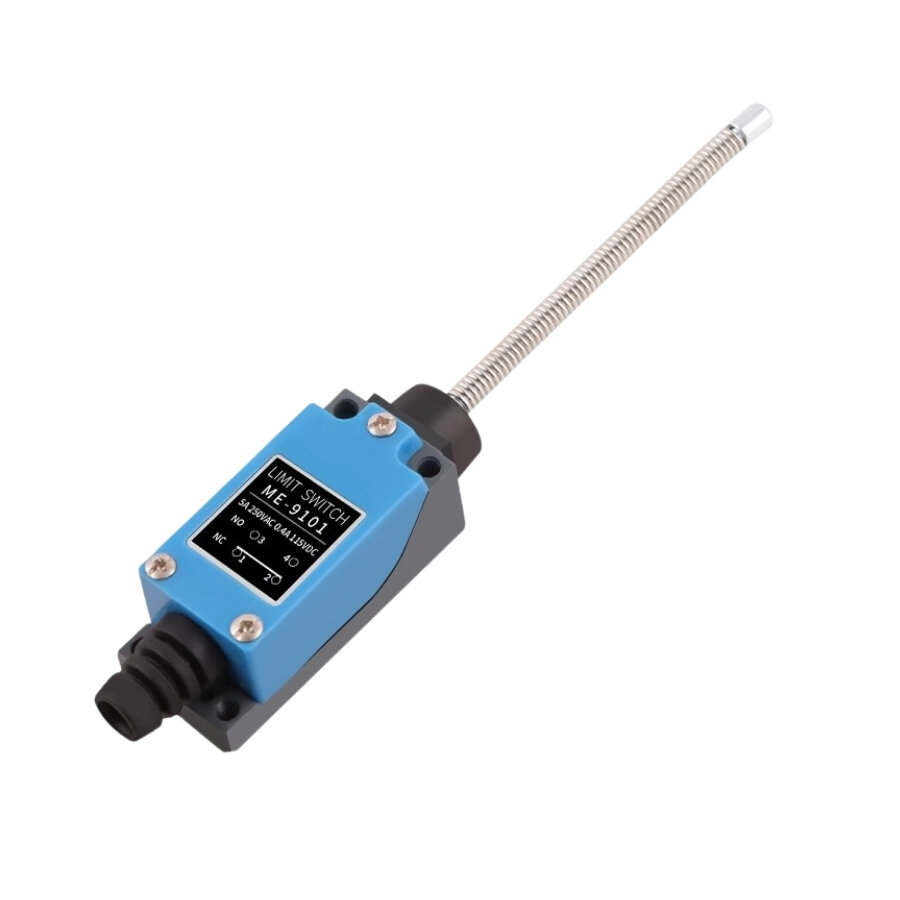

ME-9101 Metal Body Limit Switch

ME-9101 Metal Body Limit Switch

The ME-9101 Metal Body Limit Switch offers high-performance solutions for position sensing, machine motion termination, and safety applications in industrial automation systems. Its high IP protection class ensures reliability even in harsh conditions.

Areas of Use

• Automation Systems
• CNC Machines
• Production Lines
• Conveyor Systems
• Industrial Robots
• Automatic Doors
• General Control Circuits

Features

• Operating Speed: 5mm - 0.5mm/s
• Contact Resistance: 25mOhm
• Insulation Resistance: 100mOhm (@500VDC)
• Dielectric Strength: 1000VAC, 50/60 Hz 1 min
• Vibration: 10-55Hz, 1.5mm double amplitude
• Operating Temperature Range: -10 to 65°C
• Electrical Life: 500,000
• Protection Degree: IP65
• Material: Zinc, Plastic
• Copper Pin
