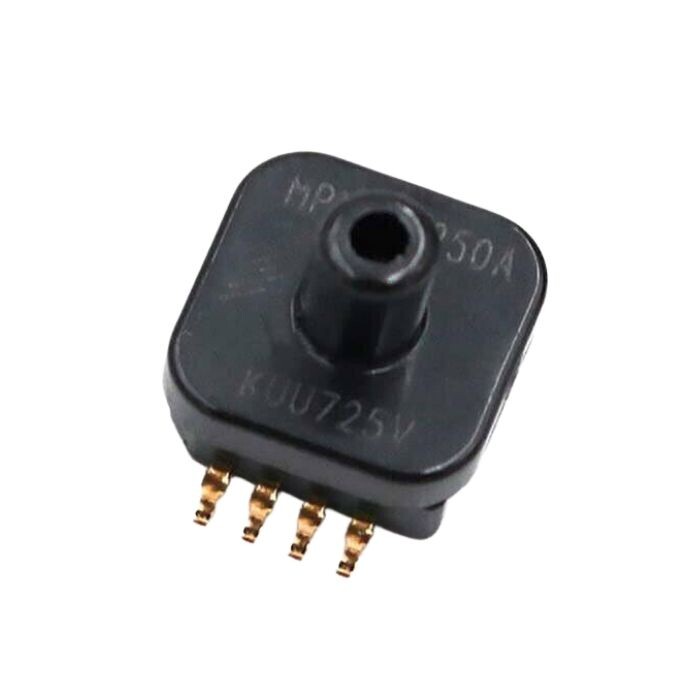

MPXHZ6250A Pressure Sensor

The MPXHZ6250A Pressure Sensor integrates on-chip, bipolar op-amp circuits and thin-film resistor networks to provide high output signal and temperature compensation. The small form factor and high reliability of on-chip integration make it a logical and economical choice for automotive system designers. The MPXHZ6250A series piezoresistive transducer is a state-of-the-art, monolithic, signal-conditioned pressure sensor. This sensor combines advanced micromachining techniques, thin-film metallization, and bipolar semiconductor processing to provide an accurate, high-level analog output signal proportional to the applied pressure.

Datasheet

Features

Supply Voltage: 5VDC
Current: 10mA
Tolerance: ± %1.5
Sensitivity: 20mV/kPa
Maximum Pressure: 1000kPa
Response Time: 1ms
