MPXV7002DP is a dual-port, integrated silicon pressure sensor in an 8-pin SOIC package. This advanced technology monolithic silicon pressure sensor is designed for a wide variety of applications. It is particularly suitable for those using microcontrollers or microprocessors with A/D inputs. This transducer combines advanced micromachining techniques, thin-film metal and bipolar processing to provide an accurate, high-level analog output signal proportional to applied pressure.

See all our pressure sensors for click.

• 2.5% Typical Error between + 10 °C and + 60 °C

• 6.25% + Maximum Error from 10°C to +60°C

• Ideally Suitable for Microprocessor or Microcontroller Based Systems< /DIV>

• Thermoplastic (PPS) Surface Mount Package

• Temperature stabilized at +10 ° - + 60 ° C

• Patented Silicon Shear Stress Strain Gauge

• Available in Differential and Display Configurations

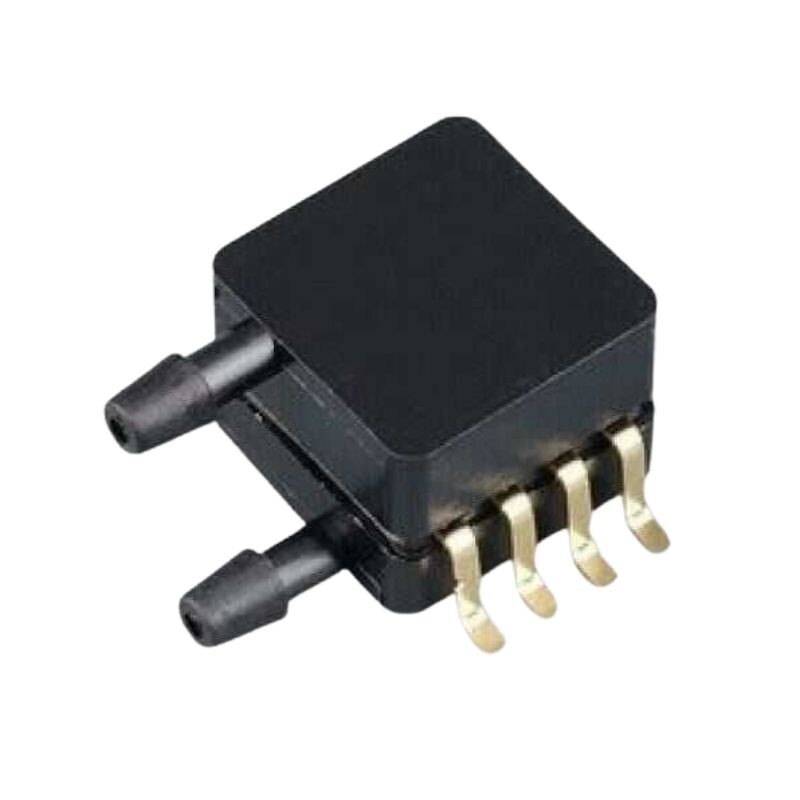

MPXV7002DP Pressure Sensor
