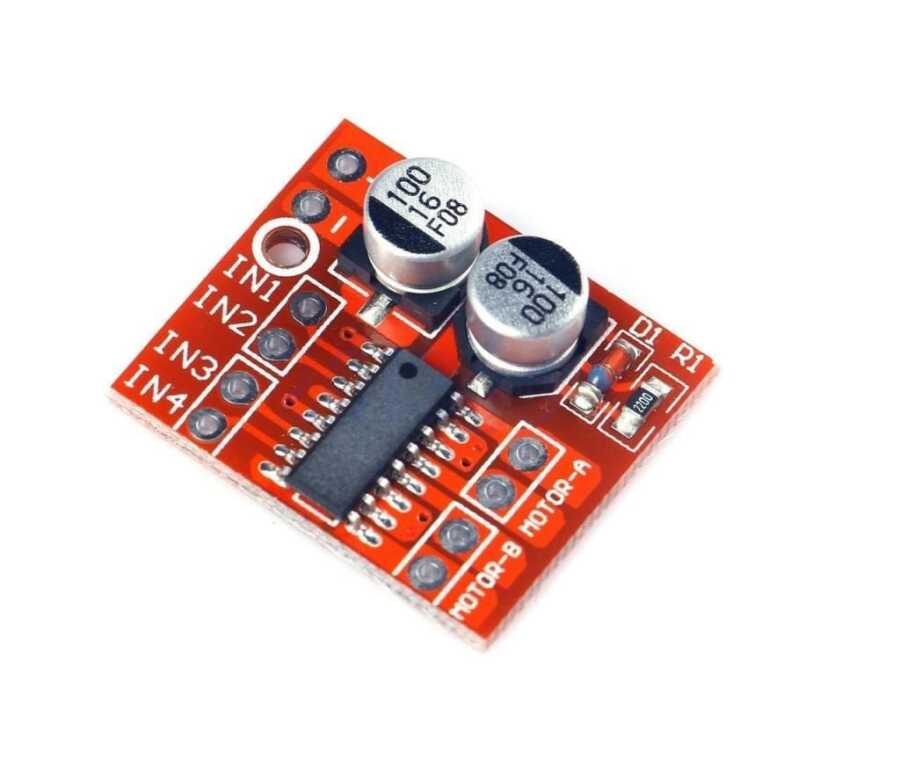

MX1508 Dc Motor Driver PWM Controlled

MX1508 Dc Motor Driver Pwm Controlled

You can choose this product, which allows you to drive two independent DC motors or one 4-pin stepper motor, in your projects because it is low-cost and small. Mu motor driver with a supply voltage between 2-10V can drive a motor up to 1.5A. (Total current 1.5A)

 Connection Diagram:

Technical Specifications:

• Double H bridge motor driver
• Independent control of 2 DC motors
• 1 unit Independent control of stepper motor
• Supply voltage: 2V-10V
• Signal input voltage: 1.8-7V
• Single operating current: 1.5A
• Peak current: up to 2.5A (momentary may cause damage in long-term situations.)
• Low standby current (less than 0.1uA)
• No need to worry about motor stalling, avoiding hysteresis effects ( TSD) with built-in thermal protection circuit.
• Size: 24.7x21x5mm (length, width, height), ultra-small size.
• Mounting hole diameter: 2 mm
