PDB-XT60 w/ BEC 5V & 12V ESC Power Distribution Module

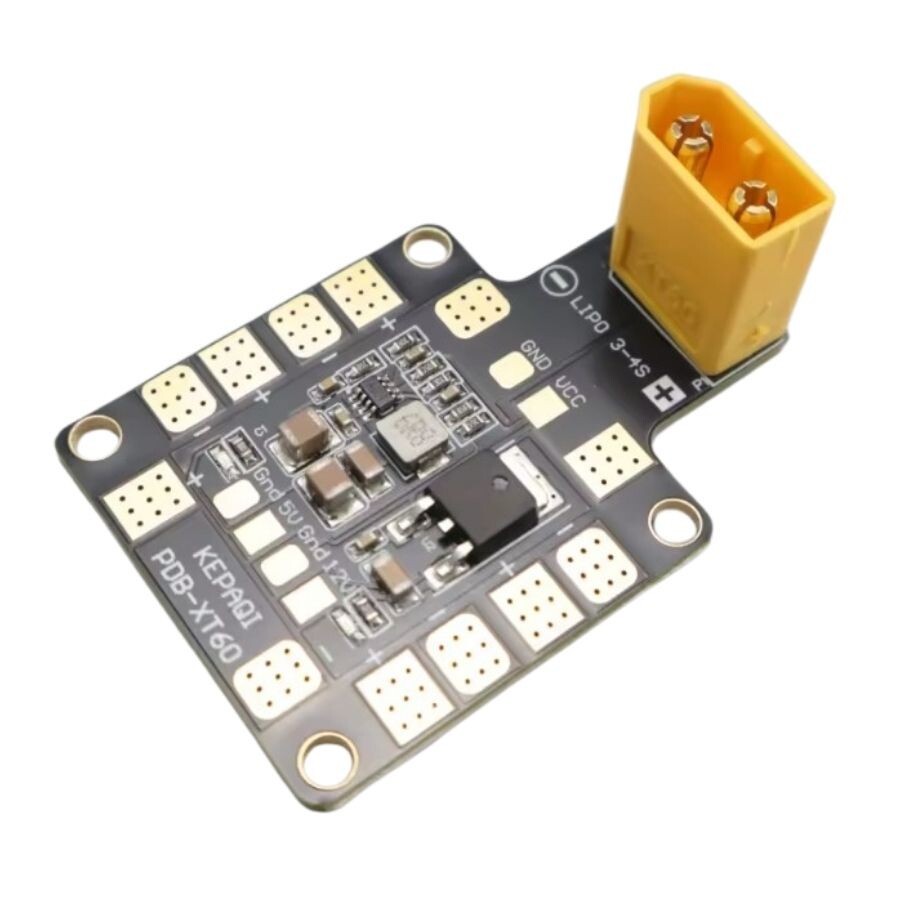

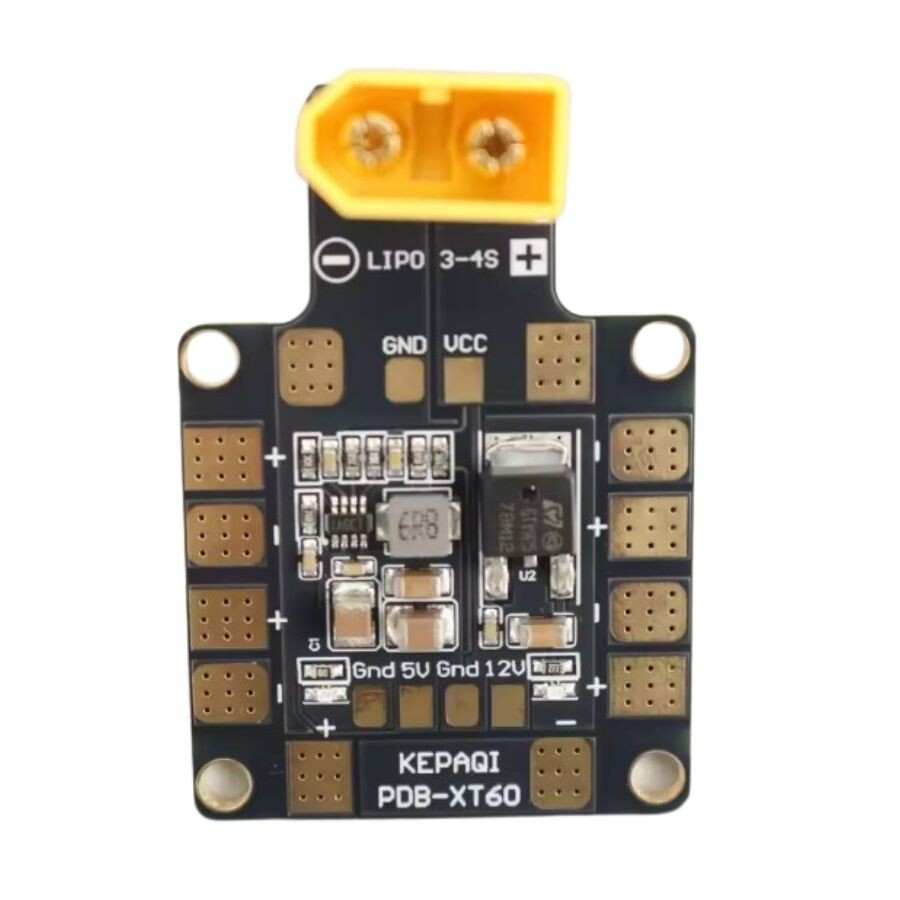

This Power Distribution Board is designed to provide the highest possible performance and reliability on a 36x50mm, 4-layer PCB. It comes with an XT60 for easy connection to LiPo batteries.
Using BECs, it distributes power from 3~4S LiPo packs to 6 ESCs, providing synchronized and regulated DC 5V outputs for RC Receivers, Flight Controllers, OSDs and Servos. It can also be used with Cameras, Servos, RC Receivers, Flight Controllers, Video Transmitters, LEDs, etc. Provides linearly regulated DC 12V for powering.
A great package for powering and racing your Racing Drones.
Features:

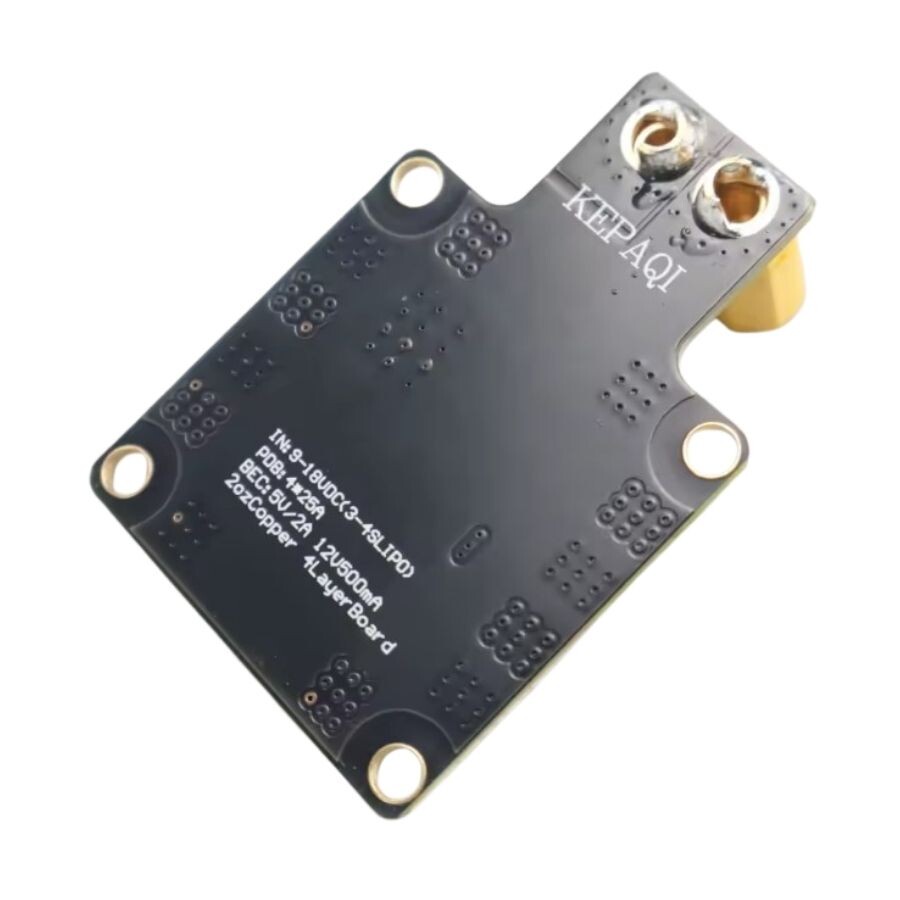

• 2oz copper, 4-layer and 1.6mm PCB
• Built-in XT60 Socket
• Total of 6 pairs of ESC solder tabs suitable for H or X type frames
• 5V and 12V Output LED indicators
• Regulated 5V and 12V outputs
• Short circuit tolerance
Technical Specifications:
- Input voltage range: 9 - 18V DC (3S-4S LiPoly operation) Continuous output current: 25Ax4 or 15Ax6 Peak output current (10 seconds/minute): 30Ax4 or 20Ax6 BEC 5V output: 5V/2A (Max. 2.5A 10s/minute) Output ripple: 40mV (VIn = 16V, VOut = 5V @ 2A load) Short circuit tolerance: 5 seconds/minute BEC 12V output (4S LiPoly, 13~18V DC): 12V/500mA (Max. 0.8A 5s/minute) BEC 12V output (3S LiPoly): = 3S LiPoly voltage - 1V
- Dimensions: 36 x 50 x 4 mm (without XT60)
- Mounting: 30.5 x 30.5 mm, Φ3 mm
- Weight: 7.5g (a / XT60), 11g (a / XT60)
