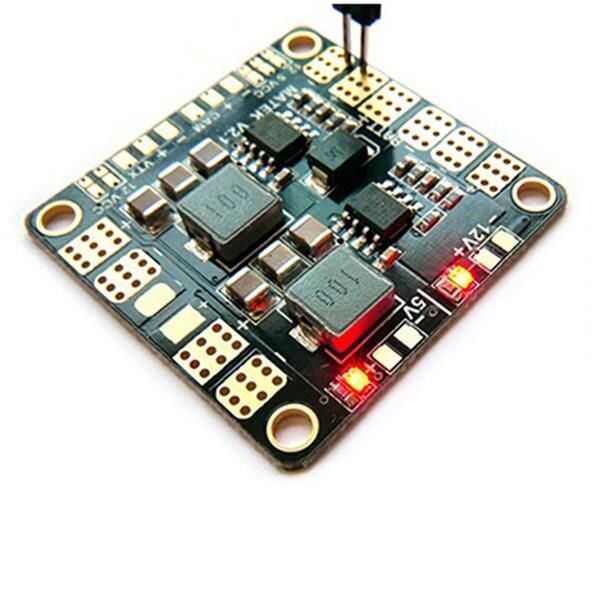

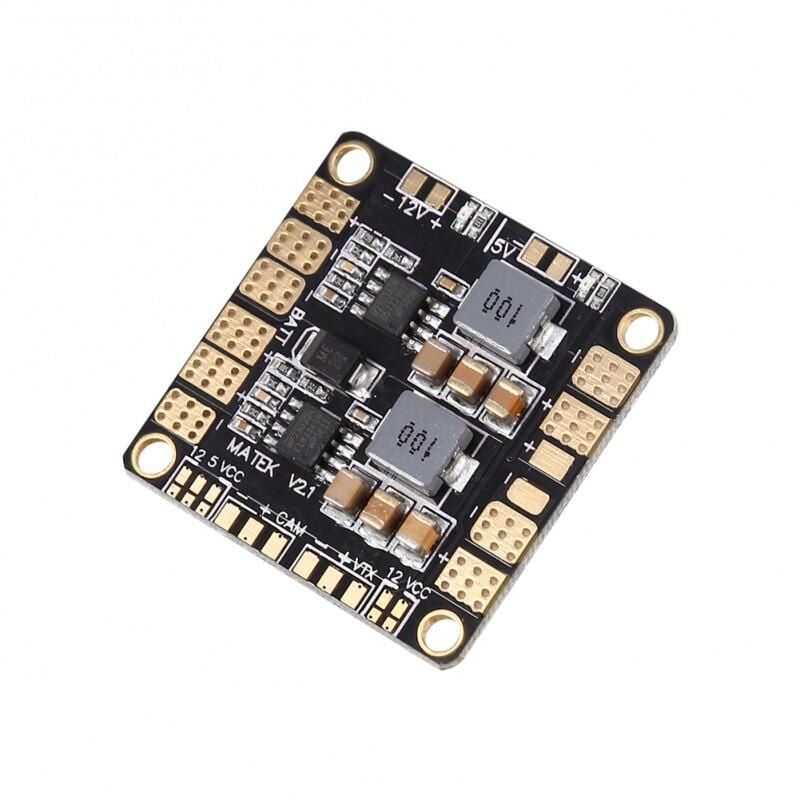

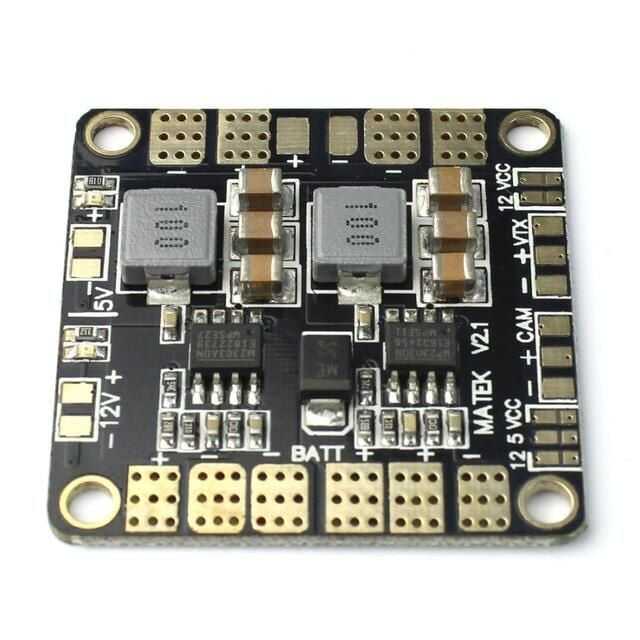

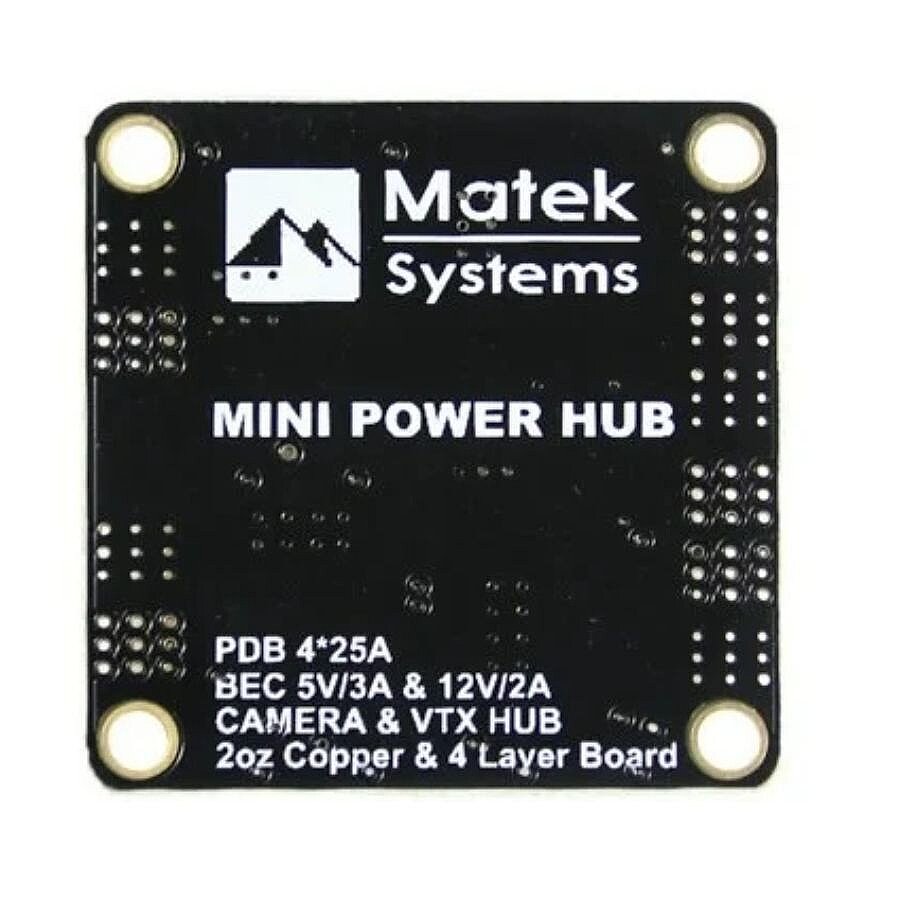

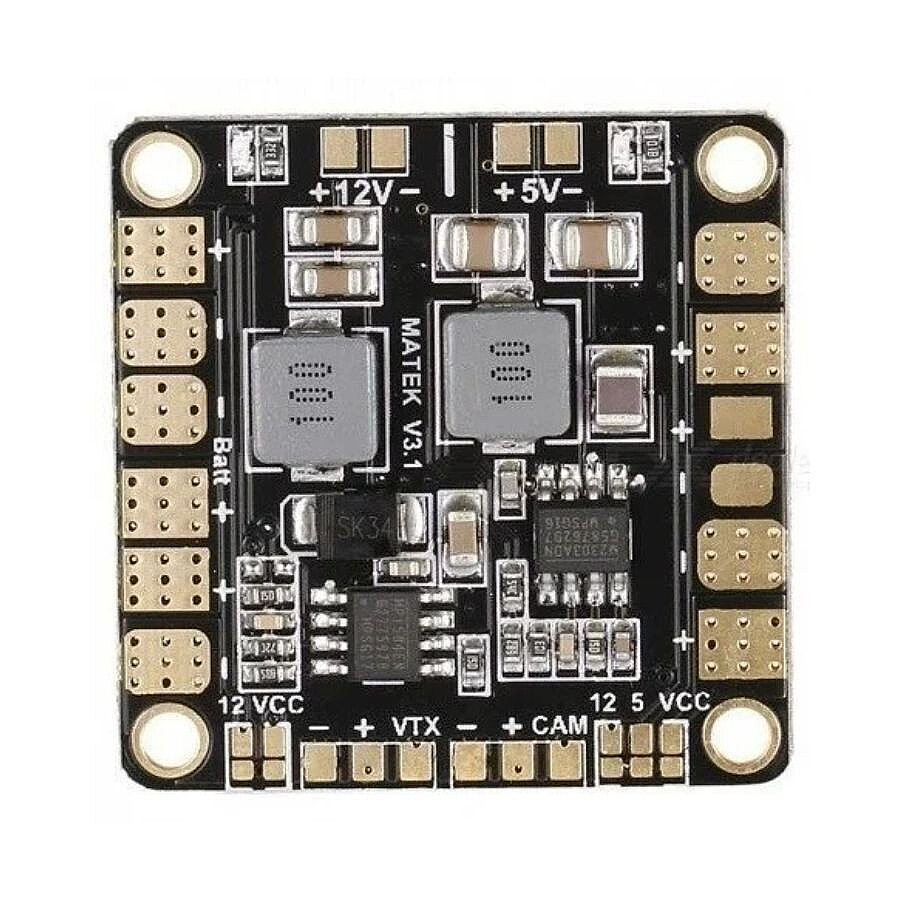

Matek Mini Power Hub w/ BEC 5V & 12v



Mini POWER HUB is designed to provide the highest possible performance and reliability in a 36 * 36mm and 4-layer PCB designed. HUB connects cameras, servos, video transmitters, LEDs, etc. It distributes power from a battery pack to 4 ESCs, as well as providing synchronized and regulated DC outputs for powering. Batteries can range from 3S to 6S LiPo.

Features:

• 2oz copper and 4 layers PCB.
• ESC and Battery solder tabs in pairs
• Solder Bridges of various voltages for Camera and VTX.
• 5V & 12V Output LED indicators and Short circuit tolerance
• Input voltage range (3S-6S operation): 9 - 26VDC
• Regulated 5V and 12V outputs
• LED power indicators (5V and 12V outputs)
• 4 ESC outputs

ESC outputs:

• Continuous current: 20A per output
• Peak current (10 seconds / minute ): 25A per output

BEC 5V output:

• Designed for RC Receivers, Flight controllers, OSD and Servos.
• DC/DC synchronous buck regulator, Efficiency up to 95%.
• Voltage: 5.0 +/- 0.1VDC
• Continuous current: 3 Amps
• Short circuit tolerance (10 seconds / minute)
• LED (indicates voltage is in regulation)

BEC 12V output:

• Battery must be 4S ~ 6S LiPo
• Support cameras and video transmitters, etc. Designed to operate standard output.
• Voltage: 12.0 +/- 0.2VDC
• Continuous current: 2 Amp (Max.3A 10s/min)
• Short circuit tolerance (10 seconds / minute)
• LED (indicates voltage is in regulation)

CAM and VTX voltage bridge

• 3S process. Select “VCC” for 12V camera and 12V VTX, VCC = Battery Voltage.
• 4~6S operation, select “12” for 12V camera and 12V VTX
• 3~6S operation, Select “5” for 5V camera
• Video switching from “CAM” pad to “VTX” pad

Size

• Dimensions: 36 x 36mm
• 30.5mm square spaced mounting holes
