pH and Temperature Sensing 4-20mA Transmitter Module - pH Sensor Included

pH and Temperature Sensing 4-20mA Transmitter Module - pH Sensor Included

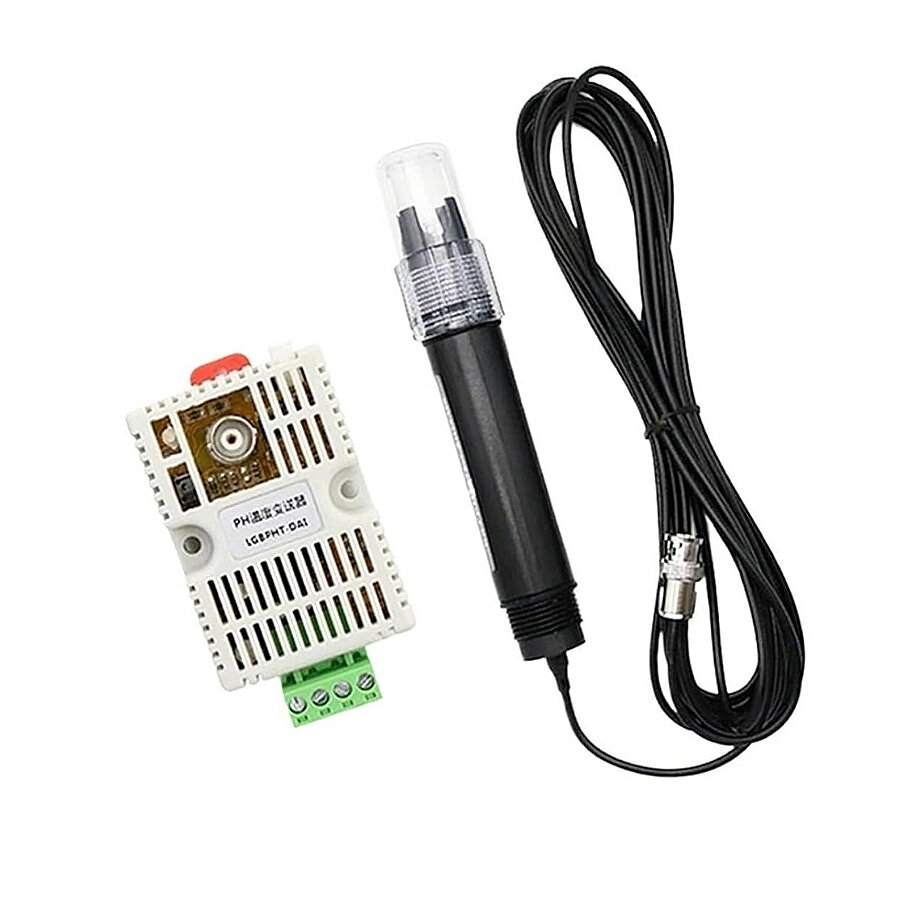

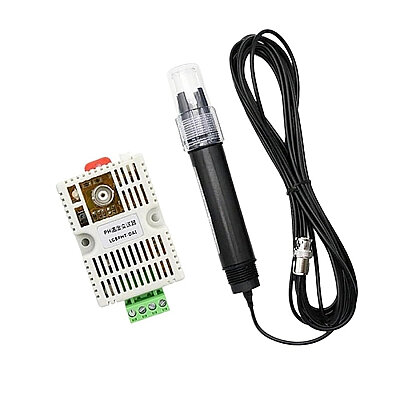

The pH and Temperature Sensing 4-20mA Transmitter Module (pH sensor included) is a transmitter module that simultaneously measures pH and temperature values ​​and converts them into a standard industrial 4–20mA analog signal.

Thanks to its industrial 4–20mA output structure, it can easily connect to PLCs, analog input modules, controllers, or data acquisition equipment, even over long cable distances or in systems subject to electrical interference.

Specifications

• Supply Voltage: DC 12–24V
• Power Consumption: <1W
• Output Type: 4–20mA analog
• pH Measurement Range: 0.00–14.00 pH
• pH System Measurement Accuracy: ±0.01 pH
• Temperature Measurement Range: -20°C ~ +80°C
• Temperature Measurement Accuracy: ±0.5°C
• pH Electrode Input: BNC
• Electrode Connection Alert: Yes
• Electrode Status Check During Calibration: Yes
• Settings Memory During Power Outage: Yes
• Overcurrent Protection: Yes
• Overvoltage Protection: Yes
• Operating Environment: -20°C ~ +80°C
