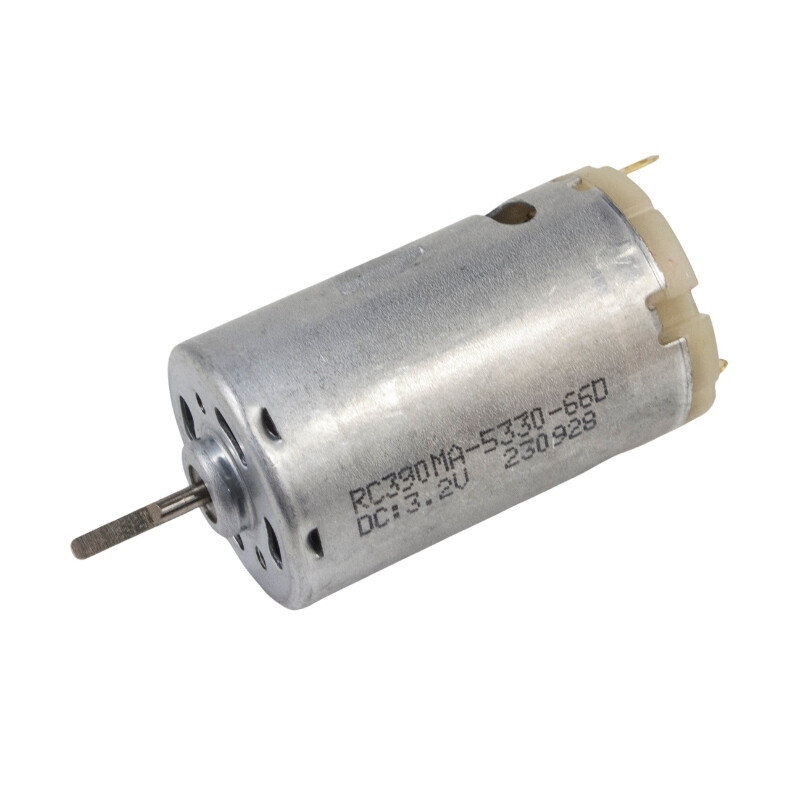

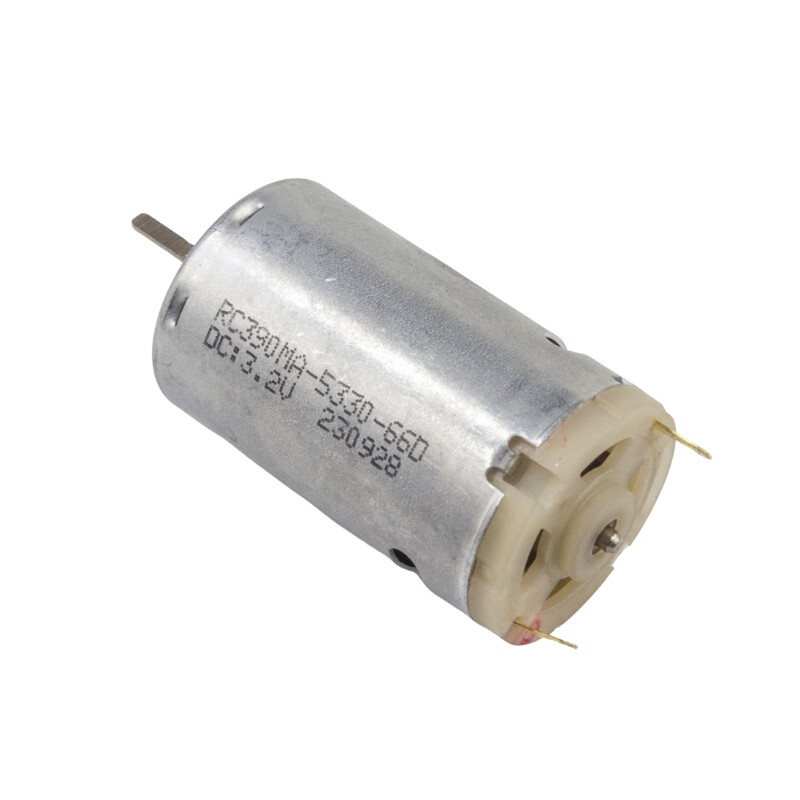

RC390 3.2V 8500Rpm Gearless DC Motor

RC390 3.2V 8500Rpm Gearless DC Motor

RC390 3.2V 8500Rpm Gearless DC Motor operates with 3.2V voltage and can reach 8500 rpm (RPM). Thanks to its high-speed structure, it offers a wide range of use from light mechanical projects to hobby applications. With its compact size and gearless structure, it is an ideal solution in systems requiring low torque and high speed.

It can be easily used in Arduino projects, mini fans, small robotic systems, model vehicles and other DC motor-based applications. Suitable for both amateur users and professional developers.

Technical Specifications:

• Working Voltage: 3.2V DC
• Idle Current: 800mA
• Strain Current: 10A
• Maximum Power: 32W
• Speed: 8500 RPM

Motor Dimensions:

• Motor Diameter: 27.5mm
• Motor Length: 46mm (Excluding Shaft)
• Shaft Diameter: 2.25mm D-shaft
• Shaft Length: 13mm
