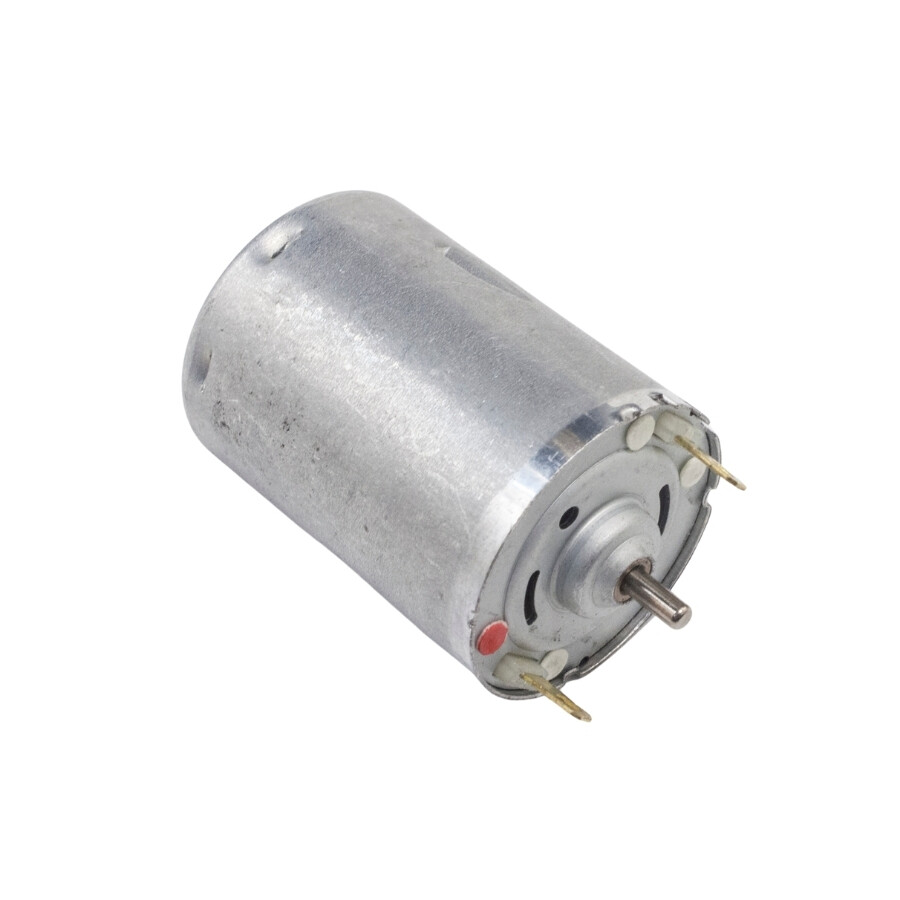

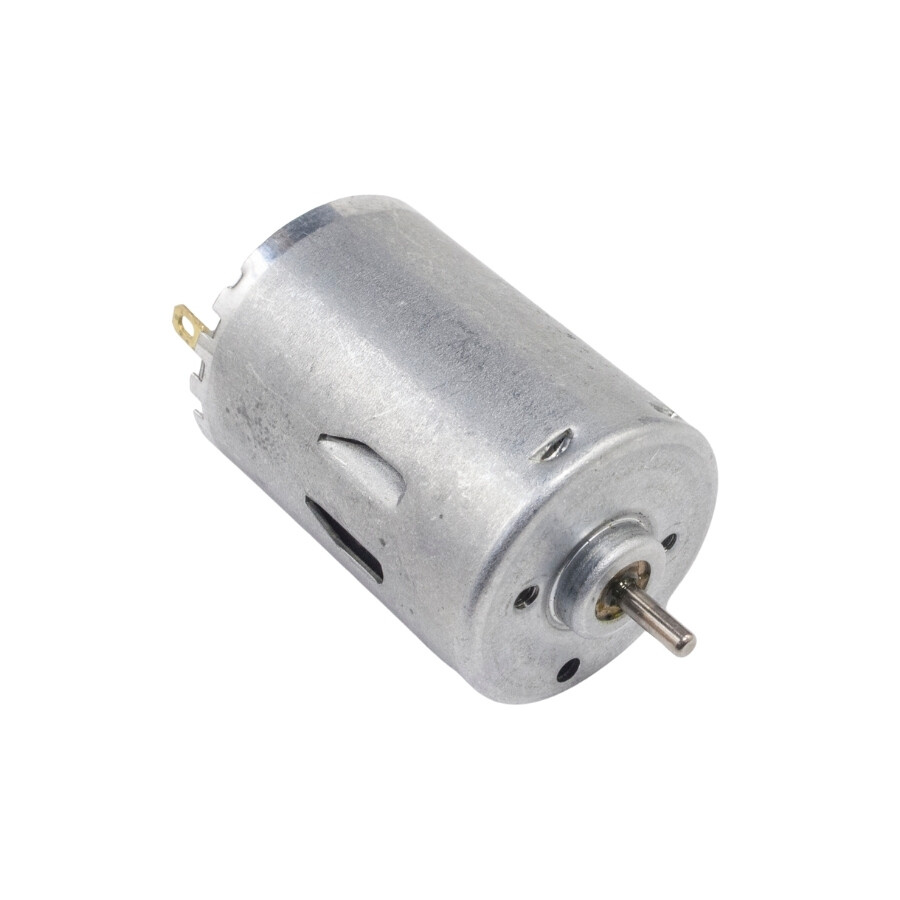

RS380 14.4V 6200Rpm Gearless DC Motor

RS380 14.4V 6200Rpm Double Shaft Gearless DC Motor

RS380 14.4V 6200Rpm Double Shaft Gearless DC Motor operates with 14.4V voltage and can reach a speed of 6200 revolutions per minute (RPM). Thanks to its high-speed structure, it offers a wide range of use from light mechanical projects to hobby applications. With its compact size and gearless structure, it is an ideal solution in systems requiring low torque and high speed.

It can be easily used in Arduino projects, mini fans, small robotic systems, model vehicles and other DC motor-based applications. Suitable for both amateur users and professional developers.

Technical Specifications:

• Working Voltage: 14.4V DC
• Idle Current: 75mA
• Strain Current: 1.5A
• Speed: 6200 RPM

Motor Dimensions:

• Motor Diameter: 27mm
• Motor Length: 37mm (Excluding Shaft)
• Top Shaft Diameter: 2.25mm
• Top Shaft Length: 7mm
• Bottom Shaft Diameter: 2.25mm
• Bottom Shaft Length: 5mm
