SCR-30KVA AC380V 200A 3-Phase Adjustable Solid State Voltage Regulator - Upgraded

SCR-30KVA AC380V 200A 3-Phase Adjustable Solid State Voltage Regulator - Upgraded

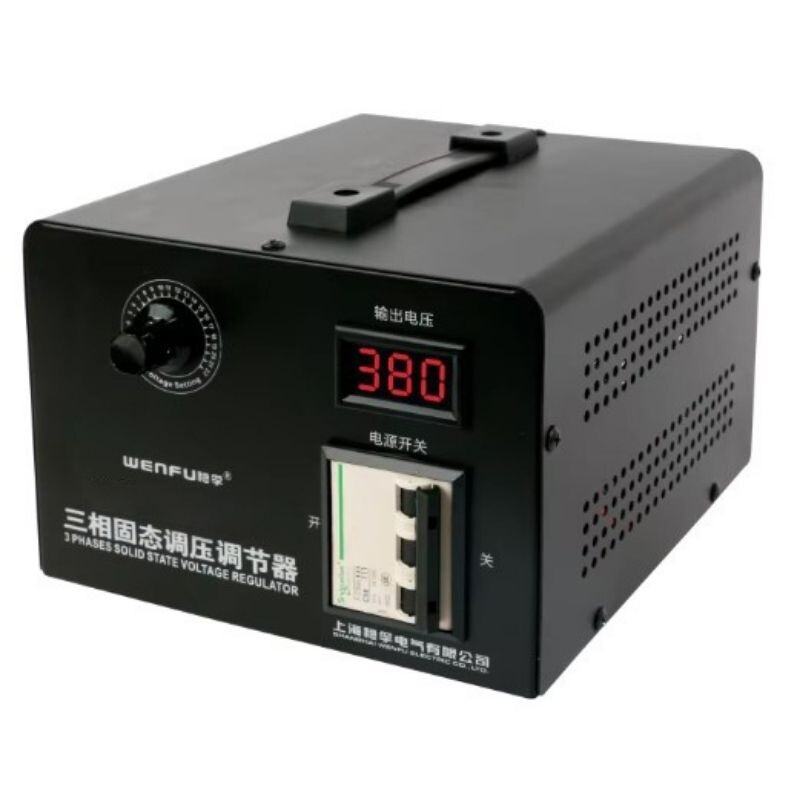

SCR-30KVA AC380V 200A 3-Phase Adjustable Solid State Voltage Regulator - Upgraded is a voltage regulator with SSR inside. Rated current is 200 amps. It is powered by AC 380V. The device, which works with AC 380V, is generally used with heating furnaces, power distribution systems, engraving machines, electric drills, etc.

There are outputs inside that you can get signal output. It has 0-5V, 0-10V, 4-20ma multi-signal system.

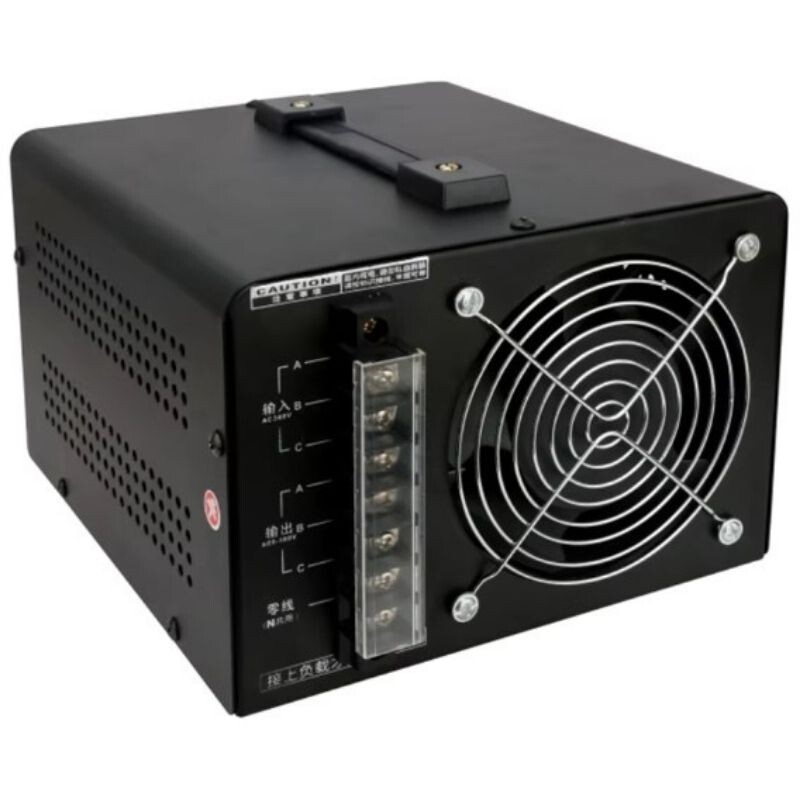

You can use SV 5.5-6 4-6mm insulated cable ends as a connection socket.

Precautions and Operating Instructions

• The output voltage measured under no load is the same as the input. It can only be measured if a load over 50W is connected.
• Input and output are AC. Do not connect DC power.
• The 200A in the product name refers to the highest current of the module when operating under resistive loads. The actual carrying power is within 10KW and the inductive load is 1/3 of the resistive load.
• When used with metal cased devices, grounding must be mandatory.

Features

• Model: SCR-30KVA
• Input Voltage: AC 380V
• Rated Current: 200A
• Output Voltage 0-380V AC (Adjustable)
• Peak Power: 30000W
• Dimensions: 22x20x14 cm
