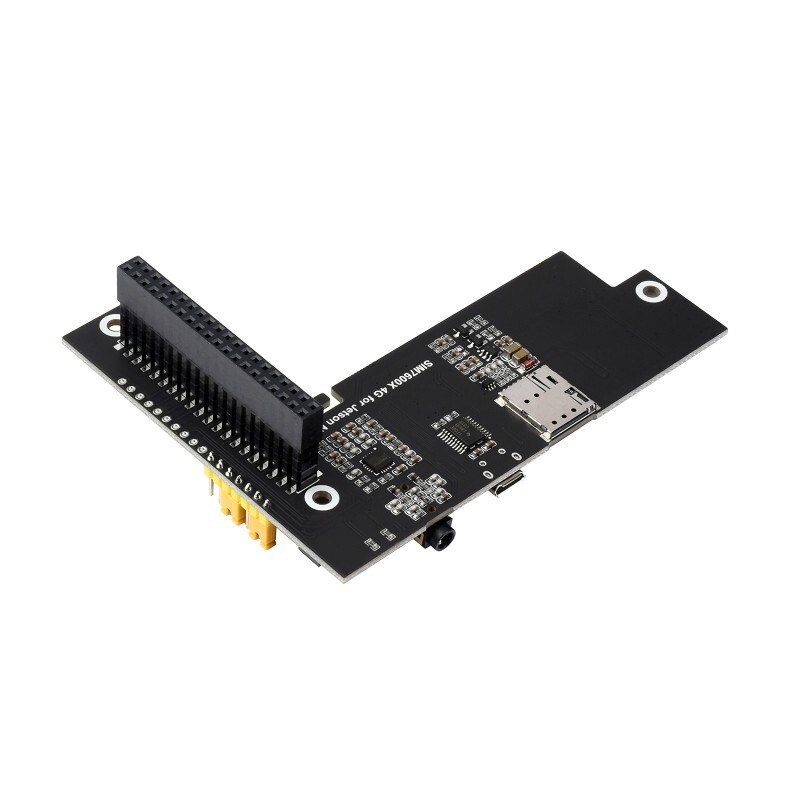

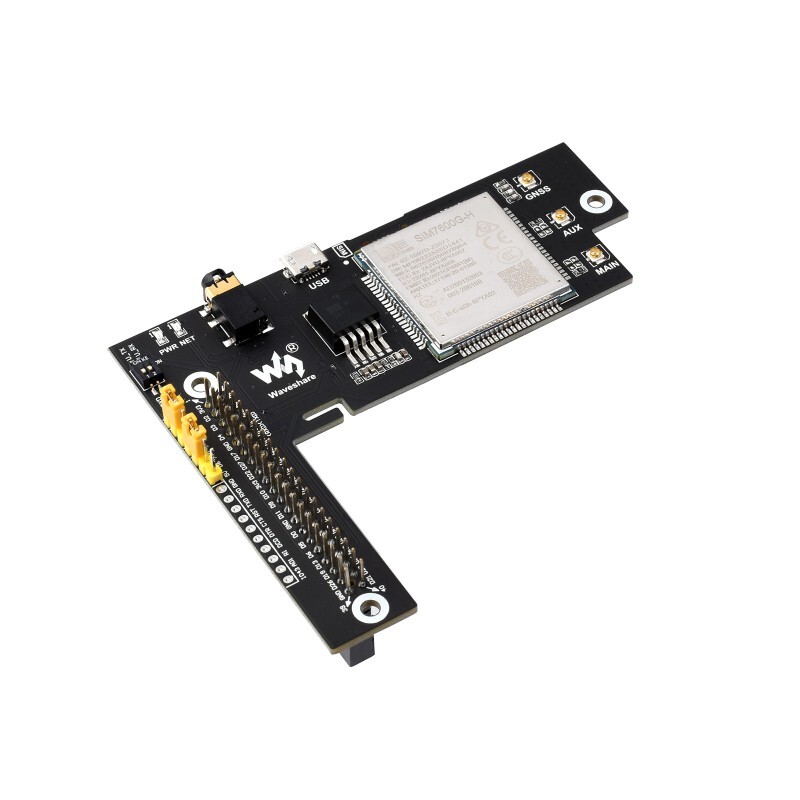

SIM7600G-H 4G/3G/2G/GNSS Module - Jetson Nano Compatible
The SIM7600G-H 4G/3G/2G/GNSS Module - Jetson Nano Compatible is a 4G/3G/2G communication and GNSS positioning module designed for the Jetson Nano. It supports global LTE CAT4 connection speeds of up to 150 Mbps and has extremely low power consumption.

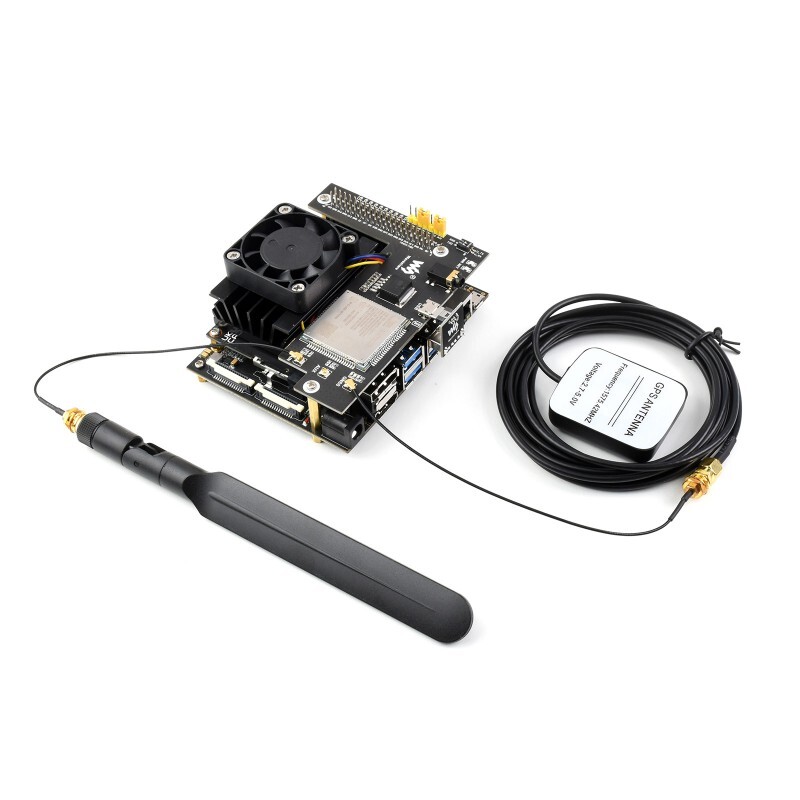

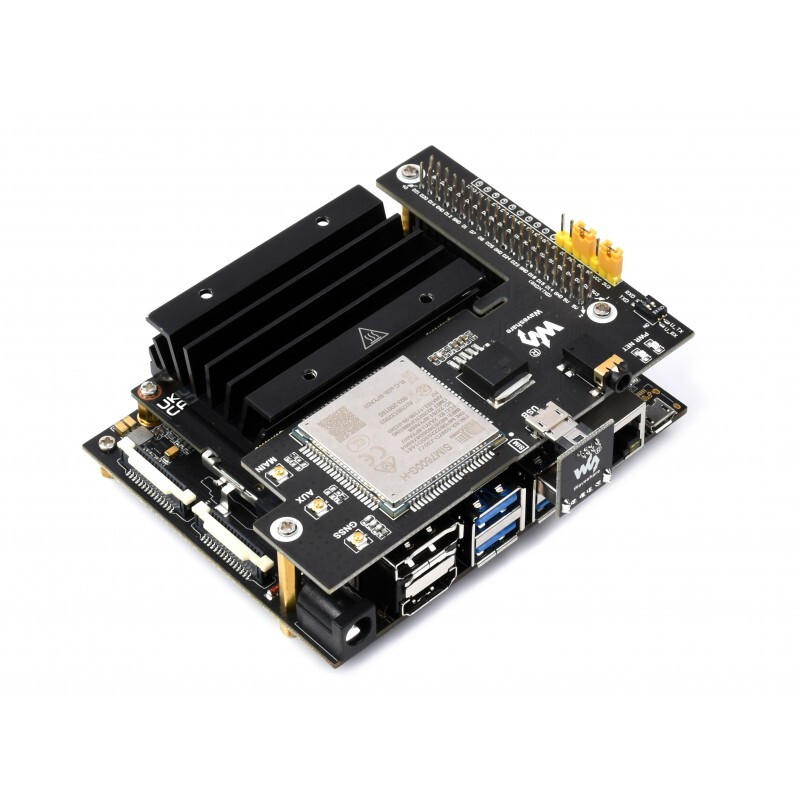

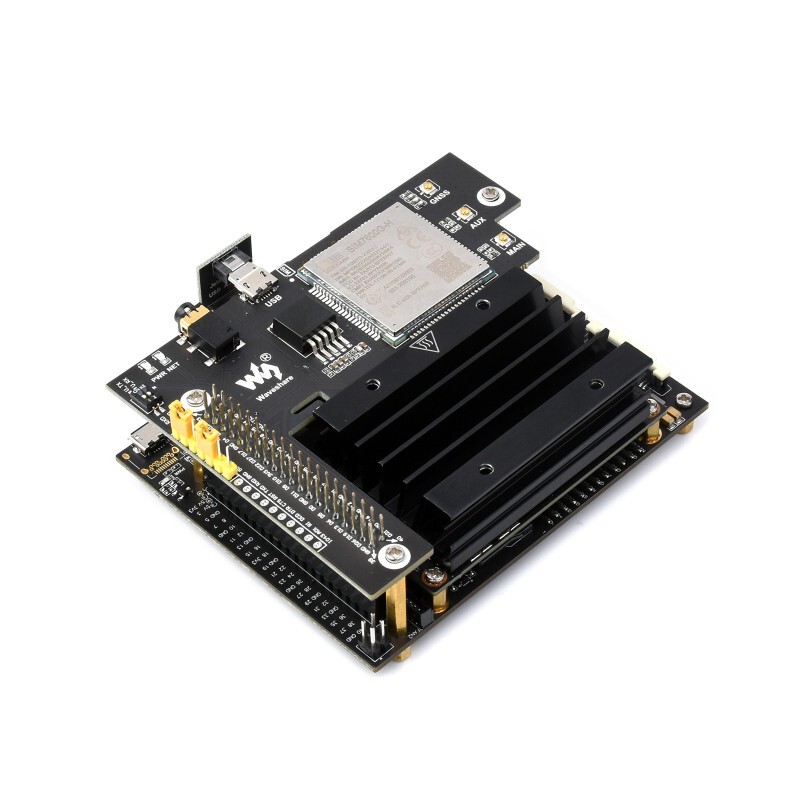

Insert it into the Jetson Nano Developer Kit and enjoy 4G high-speed connectivity, wireless communication, remote video monitoring, making phone calls, sending SMS, global positioning, etc. Easily enable functions like.
User Manual
Features
- SKU: 17729
- 40PIN GPIO extension header for connecting Jetson Nano
- Dial-up, phone calls, SMS, email, TCP, UDP, DTMF, HTTP, FTP, etc. Supports.
- Supports GPS, BeiDou, Glonass, LBS base station positioning.
- Testing AT commands, receiving GPS positioning data, etc. Onboard USB interface for connection to motherboards such as Arduino/STM32.
- Output UART control pins for connecting to motherboards such as Arduino/STM32.
- SIM card slot supports 1.8V/3V SIM cards.
- Onboard 3.5mm audio jack with headphone and microphone support for phone calls.
- Two LED indicators for monitoring operating status.
- Onboard voltage converter, operating voltage can be configured to 3.3V or 5V via jumpers.
- Baud rate: 300bps ~ 4Mbps (default: 115200bps)
- Automatic baud rate: 9600bps ~ 115200bps.
- Control via AT commands (3GPP TS 27.007, 27.005, and V.25TER commands) set)
- Supports SIM application toolkit: SAT Class 3, GSM 11.14 Release 99, USAT
