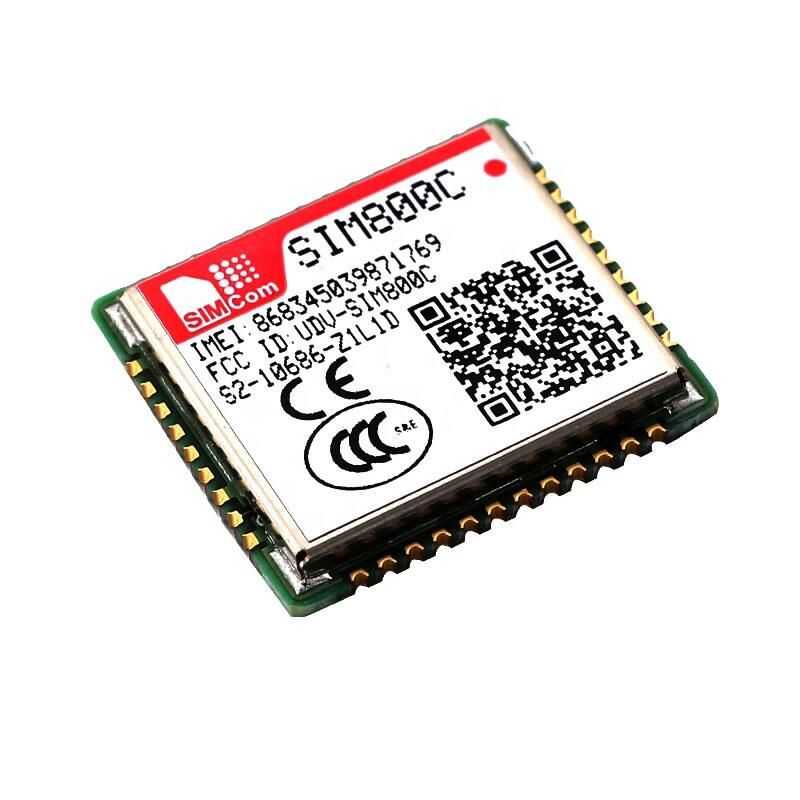

SIM800C GSM/GPRS Module

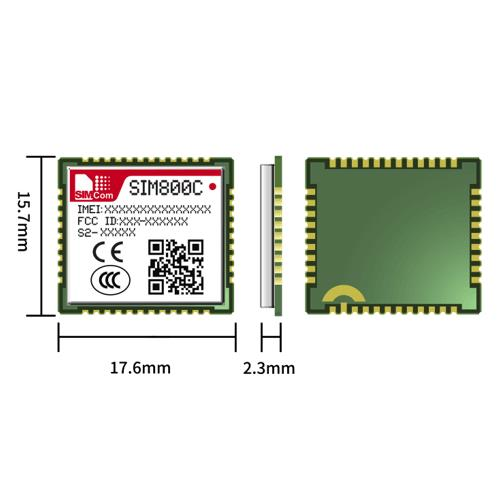

SIM800C 32M GSM Module is one of the best and widely used chips to add GSM/GPRS facility along with Bluetooth 3.0 to any of your electronic devices. Comes in 42 pin SMT package. SIM800C GSM Module has a large presence in commercial as well as hobby electronics. The SIM800C 32M GSM Module provides a variety of I/O in an extremely small compact size of 17.6 x 15.7 x 2.3 mm. The device is also widely used in battery-powered applications due to its low power consumption.

IMEI is not registered.

32MBits Internal Flash (Available flash varies depending on firmware version)

Quad Band GSM Module 850/900/1800/1900Mhz

GPRS Multi Slot Class 12/10

GPRS Mobile Station Class B

Supports Call, SMS, Internet, Bluetooth.

Bluetooth 3.0 + EDR

Control via AT Command (3GPP TS27.007, 27.005)

Low power consumption

Supply Voltage Range: 3.4~4.4V DC

Current Consumption : Peak 2A

Software features:

FTP/HTTP

MMS

DTMF Detection

Jam Detection

Interference Detection

Play recorded audio in call

SSL

Bluetooth
