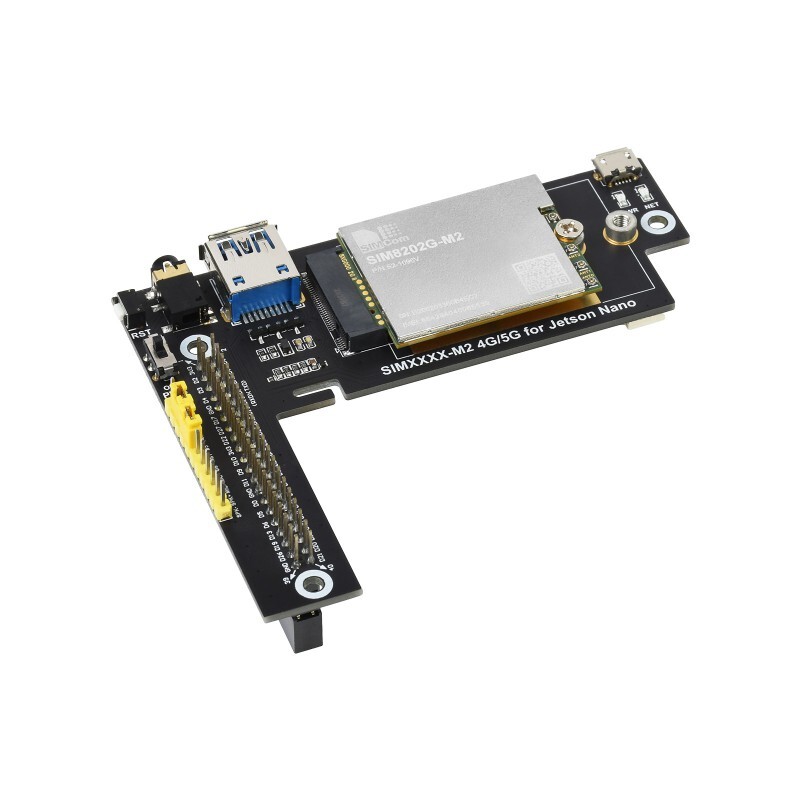

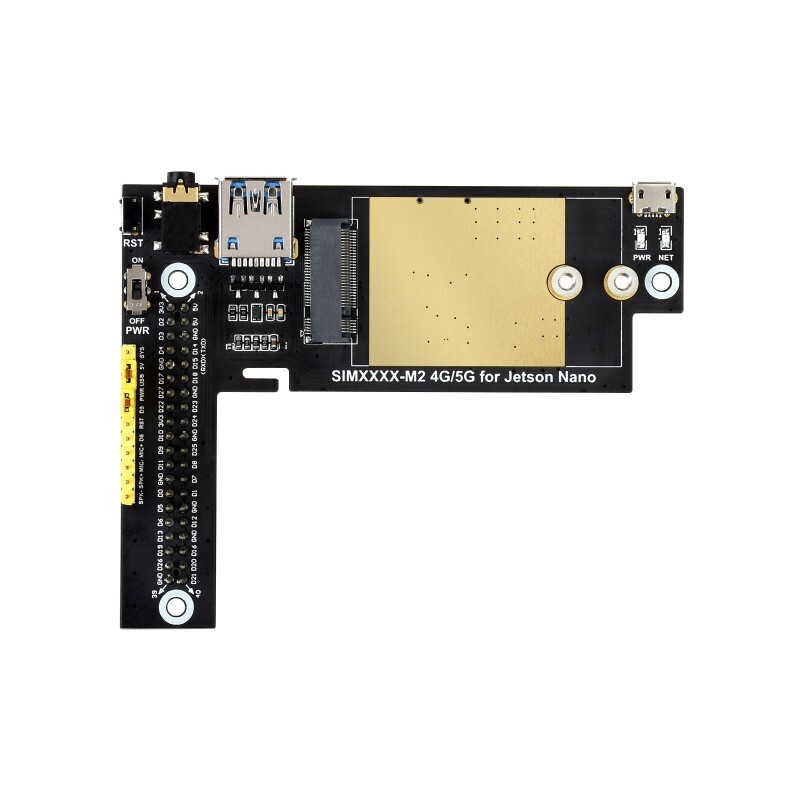

SIM8202G-M2 5G/4G/3G Module - Jetson Nano Compatible, This 5G/4G/3G Jetson Nano communication module uses the SIMCom 5G module SIM8202G-M2, supports 5G NSA and SA networks, and provides data rates of up to 2.4 Gbps (DL) / 500 Mbps (UL). The motherboard features a standard M2 connector, allowing connection to various 4G or 5G communication modules in the M2 package. Additionally, onboard interfaces such as a USB3.1 port, audio jack, SIM card slot, etc. are available. With our configuration script and development resources, it's easy to enable 5G high-speed communication for your Jetson Nano or computer. This 5G module is ideal for quickly evaluating 5G modules and integrating them into various applications where 5G connectivity is required.

User Manual

Features

• SKU: 20267
• Standard 40PIN GPIO extension header supports direct connection to Jetson Nano.
• Based on the Qualcomm Snapdragon X55 platform, it features the SIM8202G-M2 core module with multi-mode multi-band support. It comes with a .
• Supports functions such as 5G/4G/3G communication, phone calls, SMS, cloud communication, etc.
• Testing AT commands, sending messages, cloud communication, making phone calls, receiving GNSS positioning data, etc. USB 3.1 port for data transfer.
• The SIM card slot supports a 1.8V/3V SIM card.
• 2 x LED indicators make it easy to monitor operating status.
• AT command support based on 3GPP TS 27.007, 27.005, and V.25TER command set.
• Built-in audio input and audio decoder enable voice operations such as making phone calls.
• Multi-constellation dual-band positioning: GPS, GLONASS, Beidou, Galileo, and QZSS.
