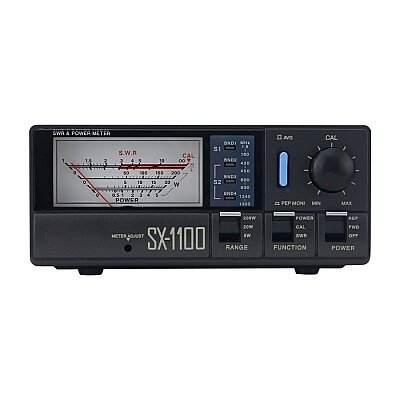

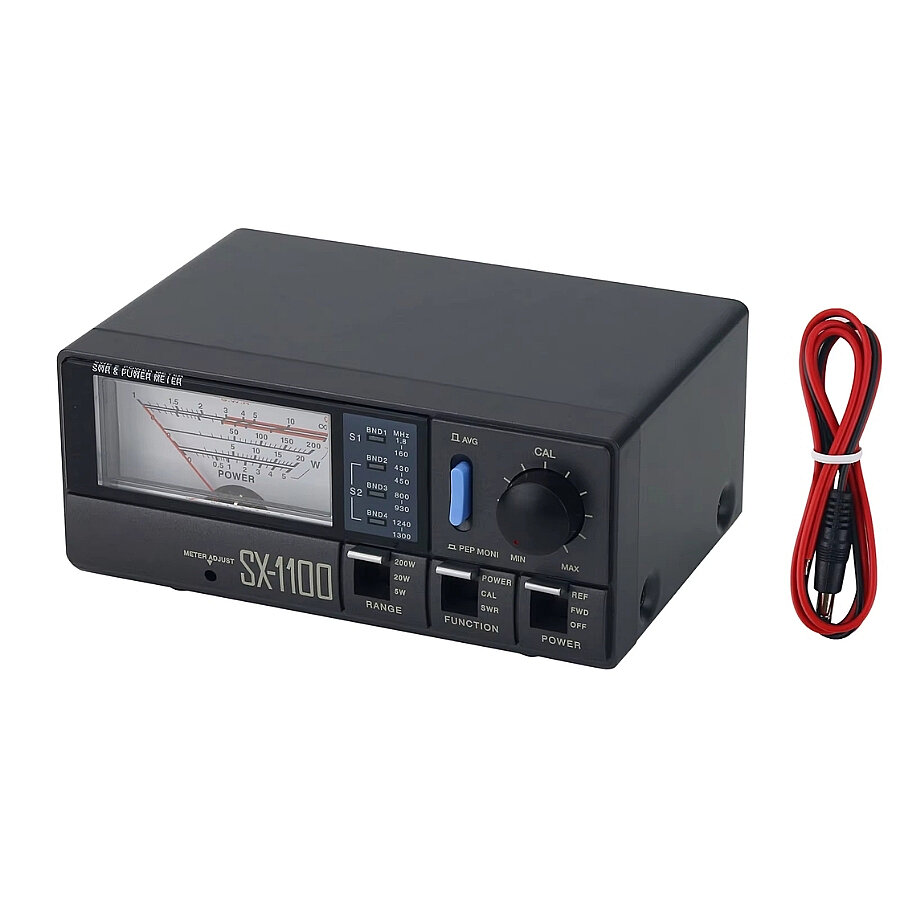

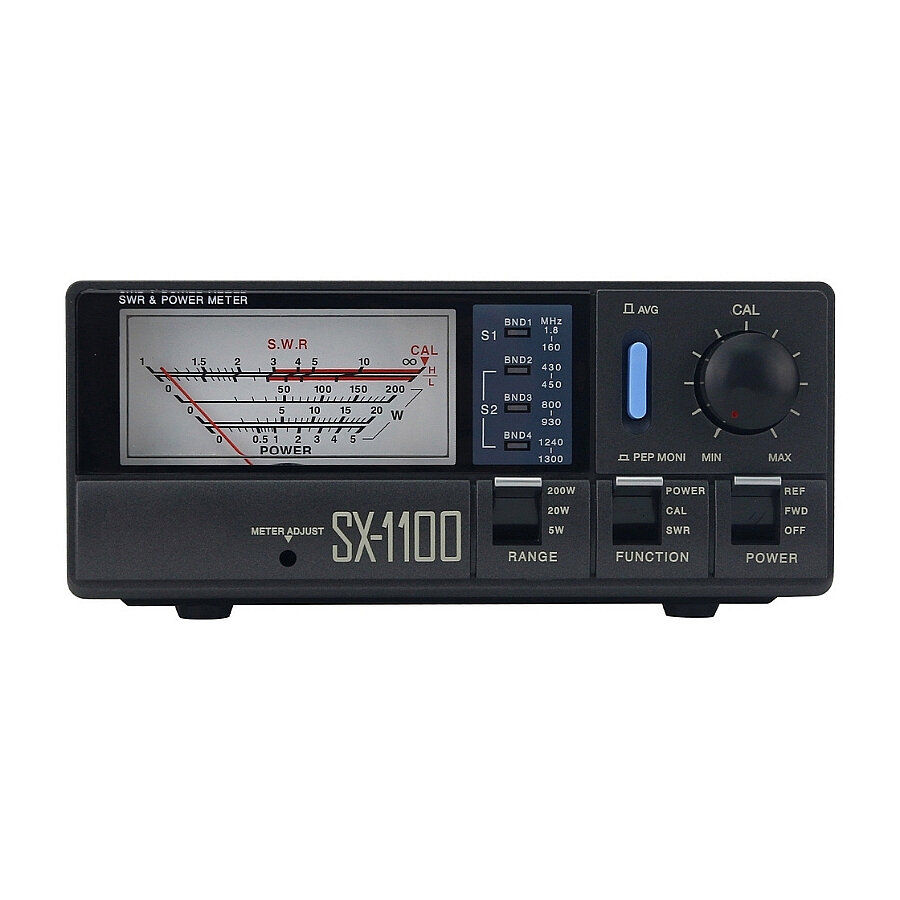

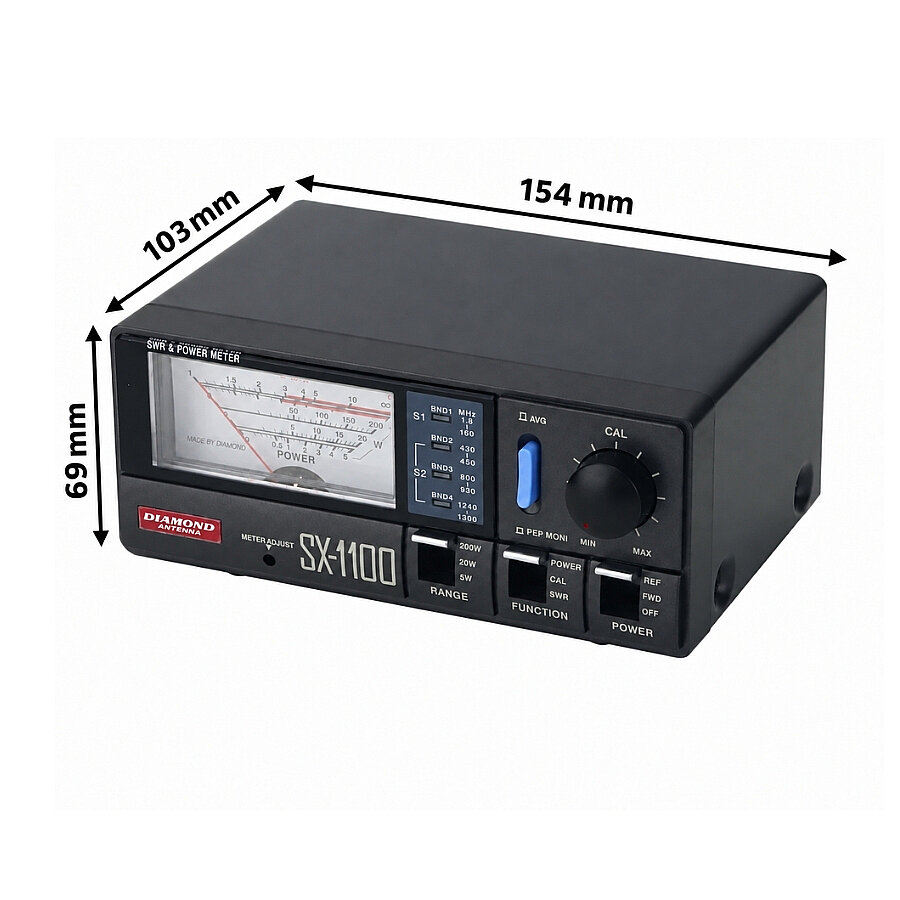

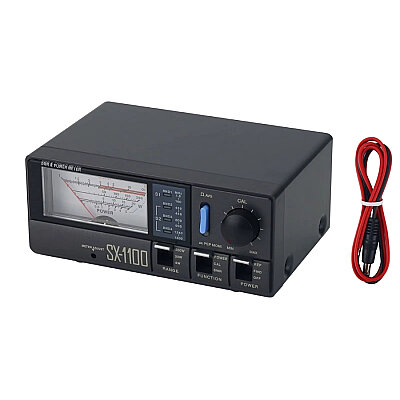

SX-1100 HF/VHF/UHF/SHF SWR Meter

SX-1100 HF/VHF/UHF/SHF SWR Meter

The SX-1100 HF/VHF/UHF/SHF SWR Meter is a precision wideband RF measuring instrument designed to be connected in series between a transmitter and an antenna to measure forward power, reflected power, and SWR (Standing Wave Ratio) in RF systems.

The device contains two separate directional couplers/sensors. The S1 sensor operates in the 1.8–160 MHz range, while the S2 sensor operates in the 430–450 MHz, 800–930 MHz, and 1240–1300 MHz bands.

Thanks to this dual-sensor design, it is possible to measure different radio systems across HF, VHF, and high UHF bands using a single device.

Specifications

• External Power Input Voltage: 12VDC
• Number of Sensors: 2
• RF System Impedance: 50Ω
• S1 Frequency Range: 1.8–160MHz
• S2 Frequency Bands: 430–450MHz / 800–930MHz / 1240–1300MHz
• RF Power Measurement Ranges: 5W / 20W / 200W
• Maximum Measurable Power: 200W, intermittent use
• Power Measurement Accuracy: ±10% F.S.
• Forward RF Power Measurement: Yes
• Reflected RF Power Measurement: Yes
• SWR Measurement: Yes
• PEP Monitor: Yes
• AVG / PEP Selection: Yes
• SWR Measurement Range: 1.0 → ∞
• S1 Minimum SWR Measurement Power: 1W
• S2 Minimum SWR Measurement Power: 2W
• S1 Maximum Continuous Power: 100W @ 1.8–100MHz
• S1 Maximum Continuous Power: 70W @ 100–160MHz
• S2 Maximum Continuous Power: 100W @ 430–1300MHz
• S1 Insertion Loss: ≤0.2dB
• S2 Insertion Loss: ≤0.15dB

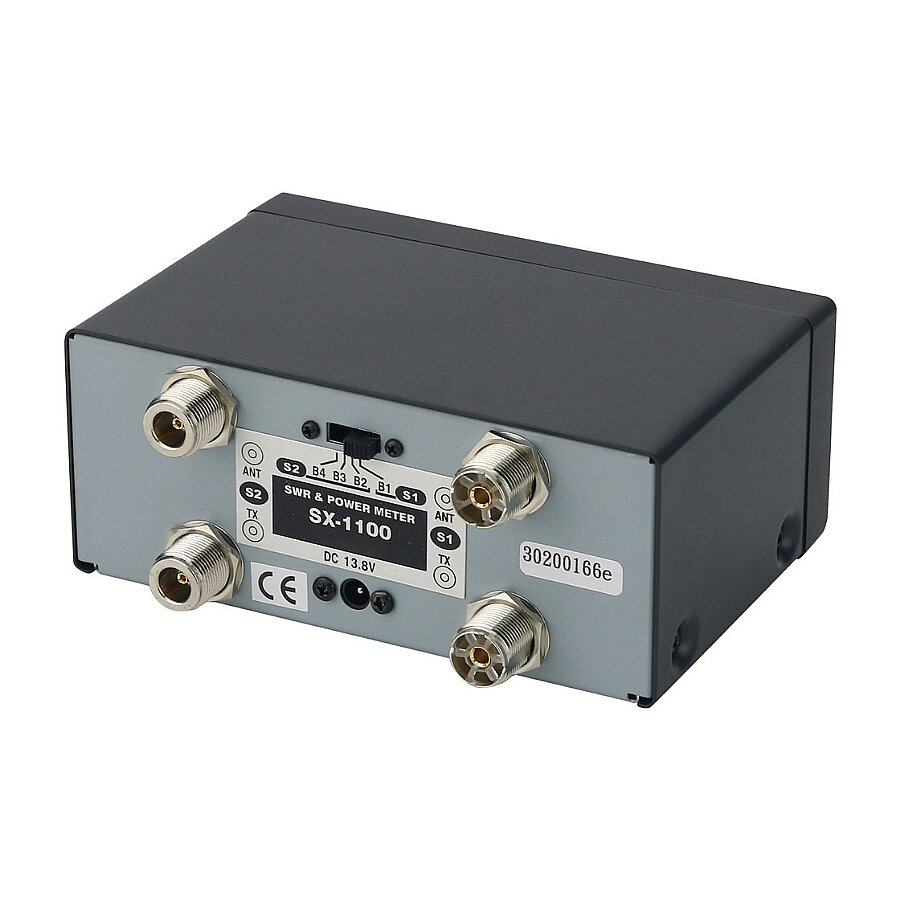

• S1 Connectors: UHF female / SO-239
• S2 Connectors: N-female
