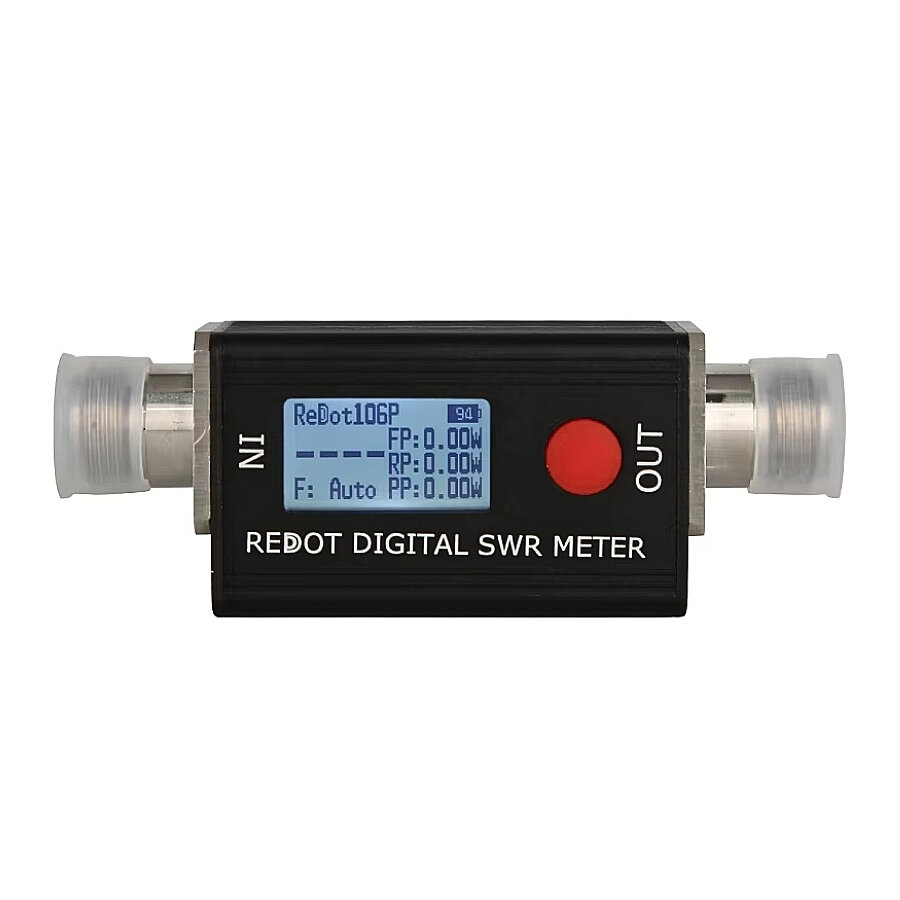

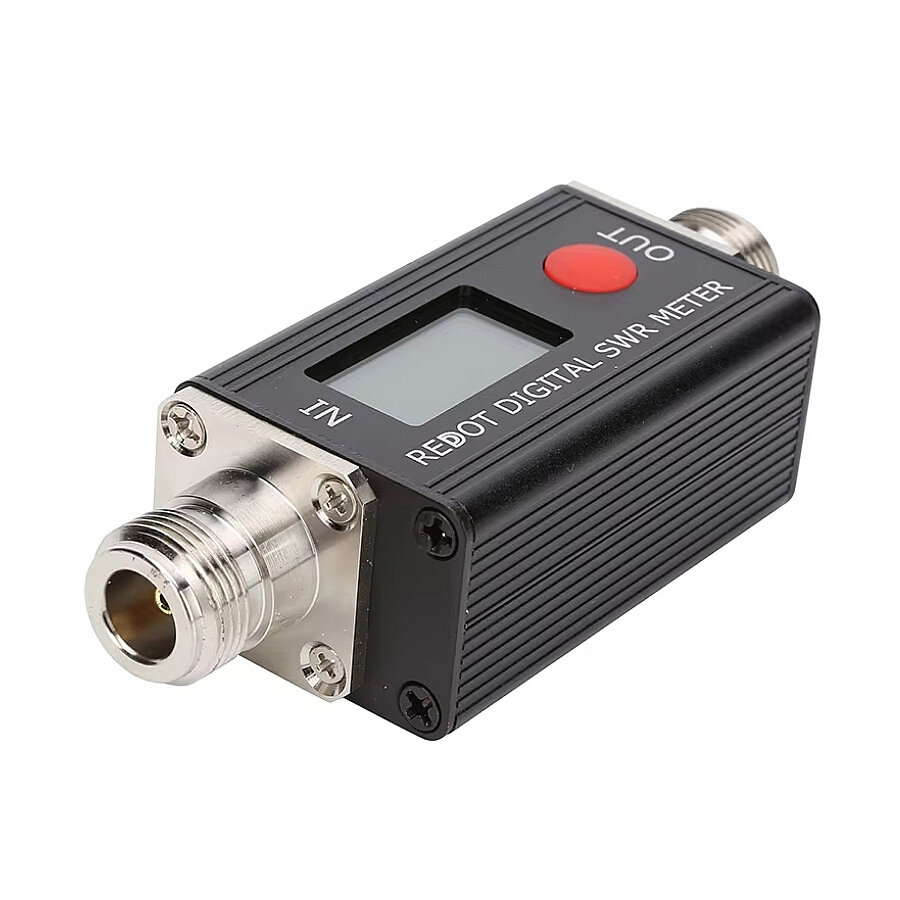

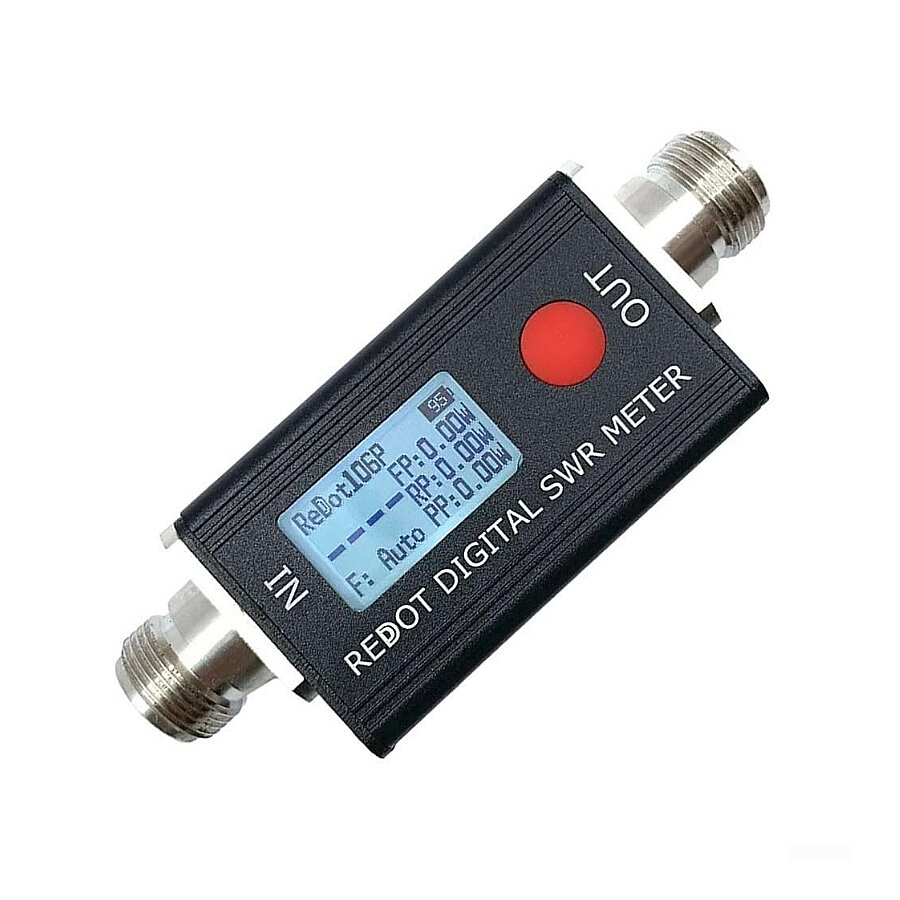

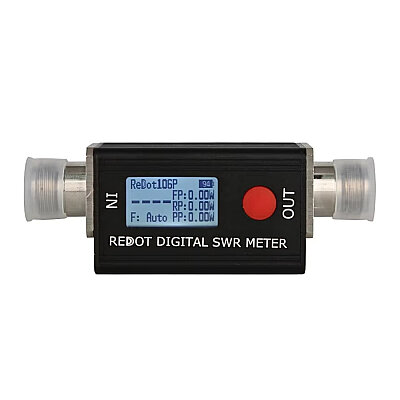

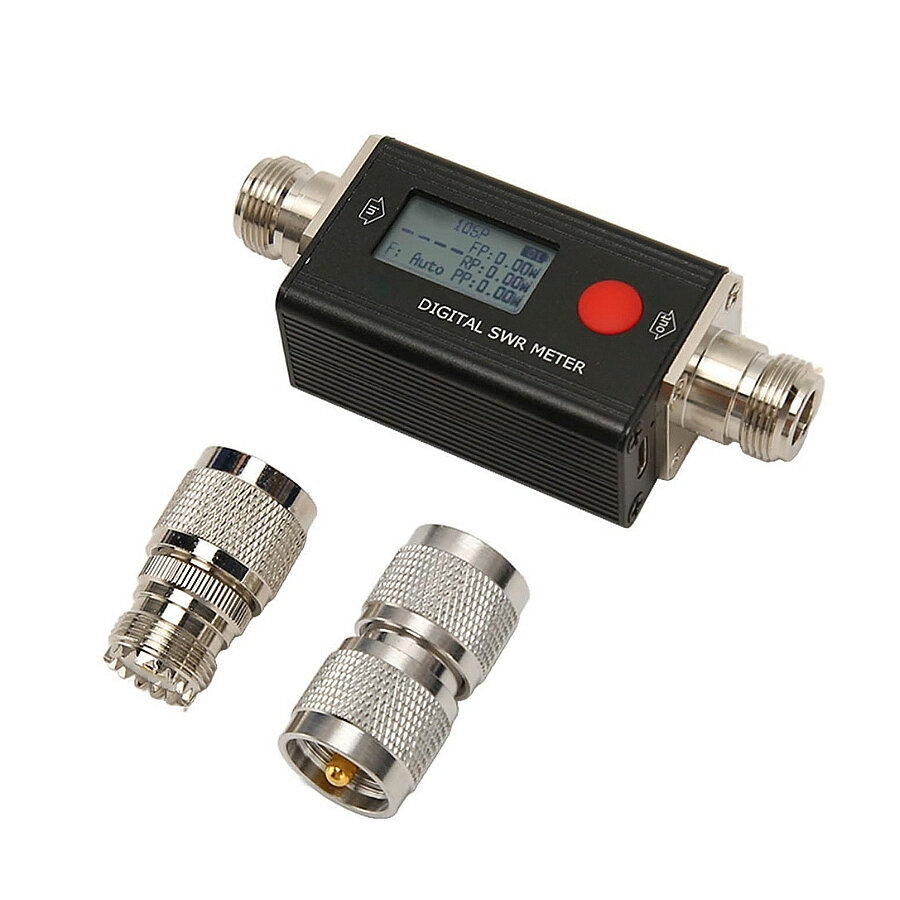

RD106P 120W Digital SWR Meter

RD106P 120W Digital SWR Meter

The RD106P 120W Digital SWR Meter features a maximum power capacity of 120W and a VSWR display range of 1.00 to 99.9. It is a portable device designed for FM, VHF, and UHF (80–999 MHz) bands. Supporting DMR radios and RF devices, it offers continuous and burst sampling, frequency compensation, and automatic sleep/wake functions for efficient operation.

Specifications

• Frequency range: 80–999 MHz
• VSWR display: 1.00–99.9
• Maximum power: 120 W
• Power error: <10%
• Sampling: 100 times per second (continuous), automatic switch to burst sampling
• Display: 128x64 LCD
• RF interface: N-KF (50 Ω)
• Battery: 3.7 V/350 mAh Li-ion, USB Type-C charging
