i2C C10 Ultra-High Precision Digital Waveform Ammeter
i2C C10 Ultra-High Precision Digital Waveform Ammeter
The i2C C10 Ultra-High Precision Digital Waveform Ammeter is a multifunctional desktop test device developed specifically for analyzing electronic devices that require monitoring of low current consumption and leakage current. Unlike a standard DC ammeter, it can display real-time current fluctuations as waveforms. This allows for the monitoring of not only steady-state current values but also the dynamic current behavior exhibited during device startup, standby, or fault conditions. The device's DC measurement section operates within a voltage range of 0–36V and a current range of 1µA–8A, offering a current resolution of up to 0.1µA.
Another key feature of the C10 is its ability to function as a smart soldering station when connected to a compatible soldering iron module. The device is compatible with D115, D210, and D245 soldering iron controllers. Soldering functions include support for temperature curves, temperature presets, automatic sleep mode, and rapid heating.

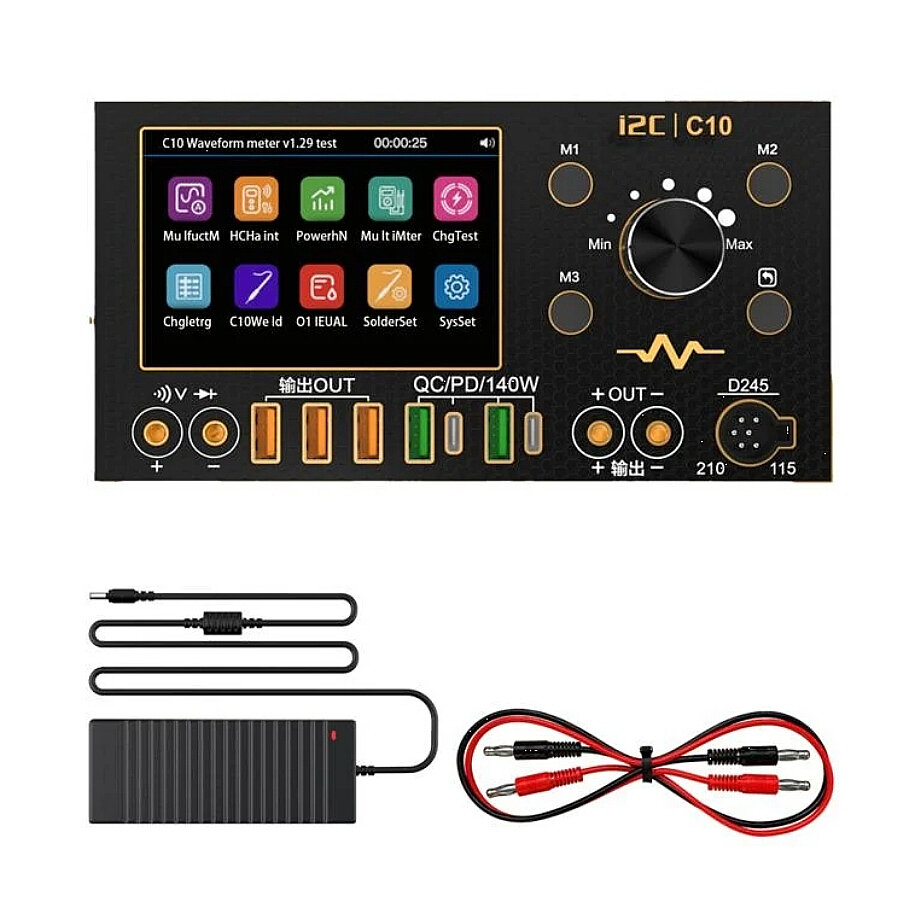

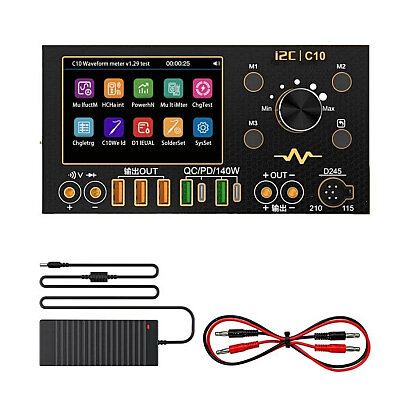

The included power adapter is rated for 24V 5A and features a 5.5x2.5mm DC jack.
The power cable for the adapter is not included and must be purchased separately.You can access the compatible power cable here.
Specifications
- DC Voltage Measurement Range: 0–36V
- DC Current Measurement Range: 1µA–8A
- Current Resolution: Down to 0.1µA
- Voltage Resolution: Listed as ≥0.1V for sources
- Current Waveform Display: Yes
- PD Support: PD3.1
- Other Supported Charging Protocols: PE2.0, BC1.2, FCP, SCP, QC3.0, VOOC, SuperVOOC
- Multimeter Auxiliary Module: Yes
- DC Multimeter Measurement: 0–24V
- Resistance Measurement Range: 0–50kΩ
- Diode Test: Yes
- Continuity / Buzzer Test: Yes
- Soldering Station Function: Yes
- Supported Soldering Iron Series: D115 / D210 / D245
- Soldering Iron Power Input: DC 24V
- Input Current: 5–15A, depending on the soldering iron/power level used
- PD3.1 Power Section Input: DC 30V / 10–15A
- D115 Power Rating: 50W
- D210 Power Rating: 100W
- D245 Power Rating: 180W
