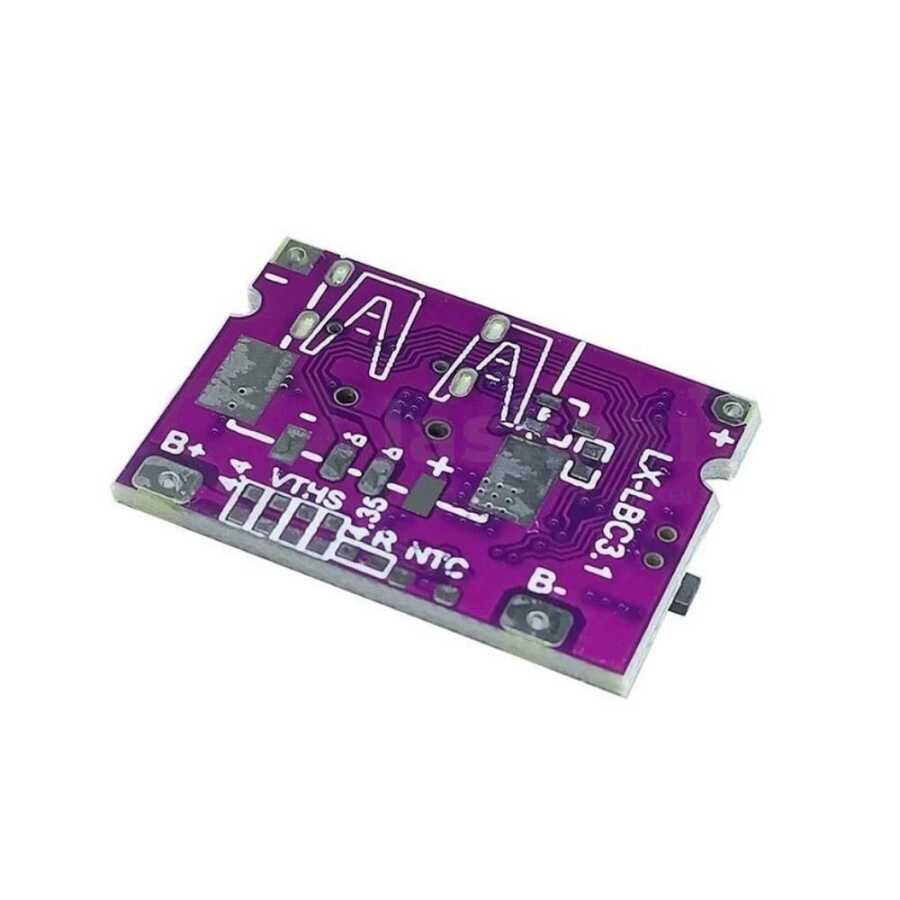

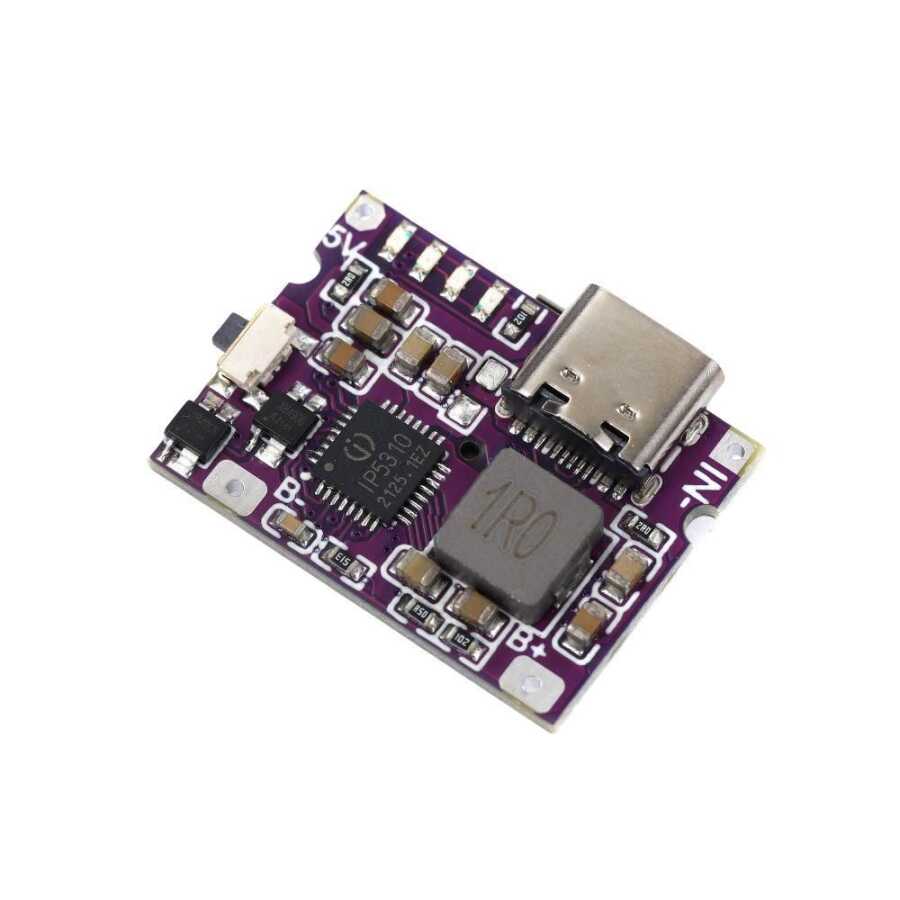

Type-C Li-ion 18650 Battery Charging Circuit
Type-C Li-ion 18650 Battery Charging Circuit. It is a charging circuit for 18650 batteries that you can feed with a 5v power supply from the 5V and IN- sections on the circuit. You can also charge your phone with the Type-C port. You can view the charge status of the battery with the LEDs next to the Type-C port.
Features
- Supply Voltage: 5VDC
- Output Current: 3A
- Supported Batteries: 18650
- Dimension: 27x20x5mm
- Weight: 4g
Pinout
Input:< /H4>- 5V : Power supply plus
- IN- : Power supply minus
Output:
< LI>Battery Connections: B+ B-- Phone Charging Output: Type-C
