VAT1300 100V 300A Wireless Voltmeter Ammeter - Capacitance Meter

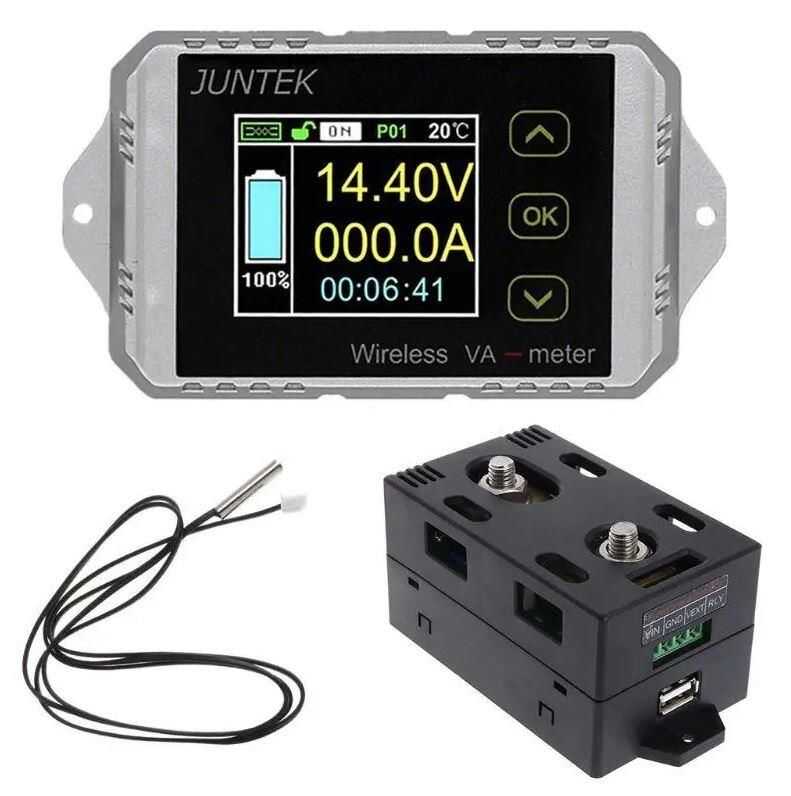

VAT series is a multi-function meter based on 2.4G wireless data transmission technology. It can measure various parameters such as voltage, current, power, charge and discharge capacity, watt-hour, time and temperature with overcurrent protection. The device can automatically identify the direction of current, and the battery capacity can be monitored in real time, the device uses a TFT LCD screen, the display information is comprehensive, user-friendly.

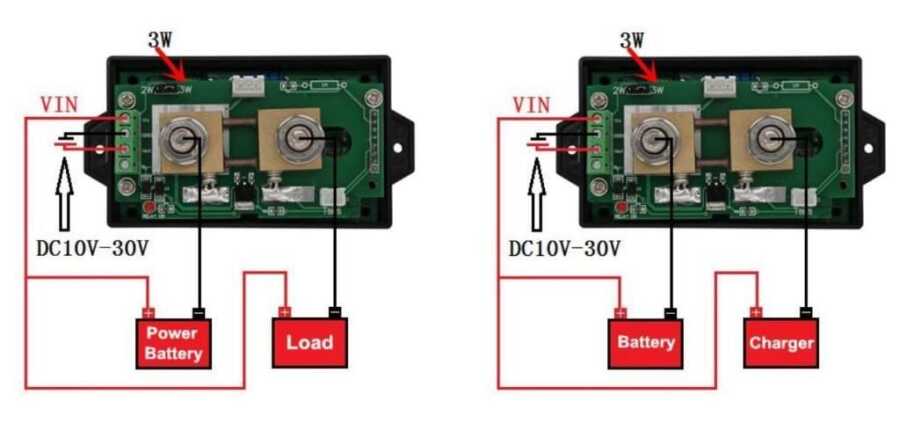

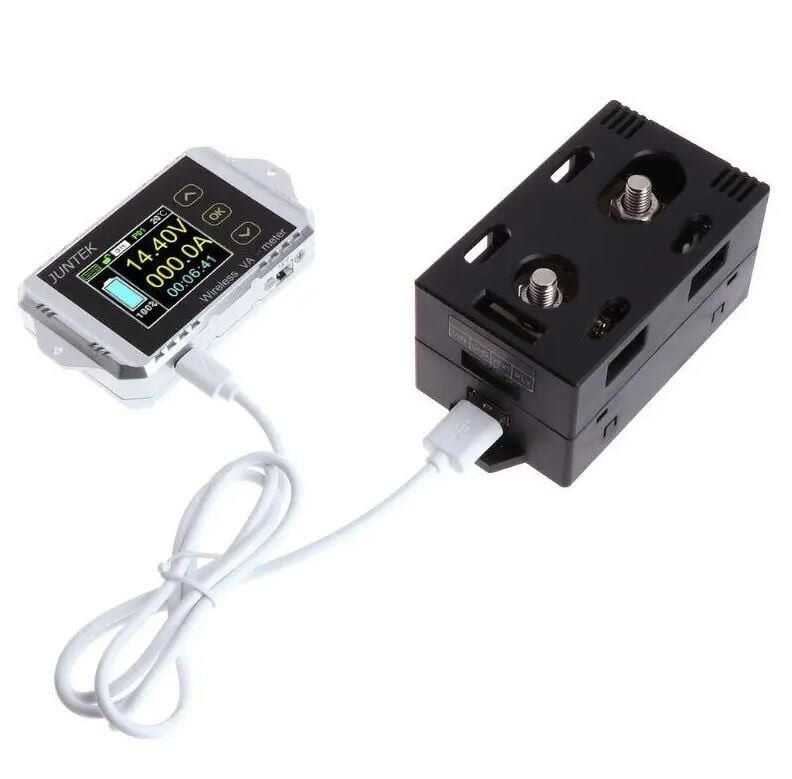

The measurement module is serially connected to the circuit under test. and the measured data is sent to the display module for display. Data between them can be transmitted via USB cable (1 meter long), also can be transmitted wirelessly via the built-in wireless module. Wireless transmission distance is up to 10 meters.

Technical Specifications

Voltage measurement range: 0~100V
Voltage resolution: 0.01V
Current measurement range: 0~300A
Current resolution: 0.1 A
Temperature measurement range: -20~120 ℃
Capacity display range: 0%~100%
Power measurement range: 0~200kW
Power resolution: 0.001W
AH measuring range: 0~2000kAH
Capacity resolution: 0.001AH
Watt-hour measuring range: 0~4000kWH
Watt-hour accuracy: 0.001WH
Time measurement range: 0 ~ 99 days
Time resolution: 1 second
Communication channel range: A ~ Z (26 channels)
Communication channel range: 01~99
Voltage accuracy: ± 2% + 3 words
Current accuracy: ± % 5 + 10 words
Sampling rate: 5 times / second
Communication distance up to 10 meters
