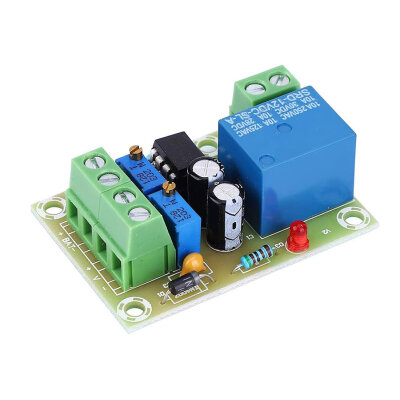

XH-M601 12V Battery Charge Control Circuit - 1
XH-M601 12V Battery Charge Control Circuit - 2
XH-M601 12V Battery Charge Control Circuit - 3
XH-M601 12V Battery Charge Control Circuit - 4
0 Comment

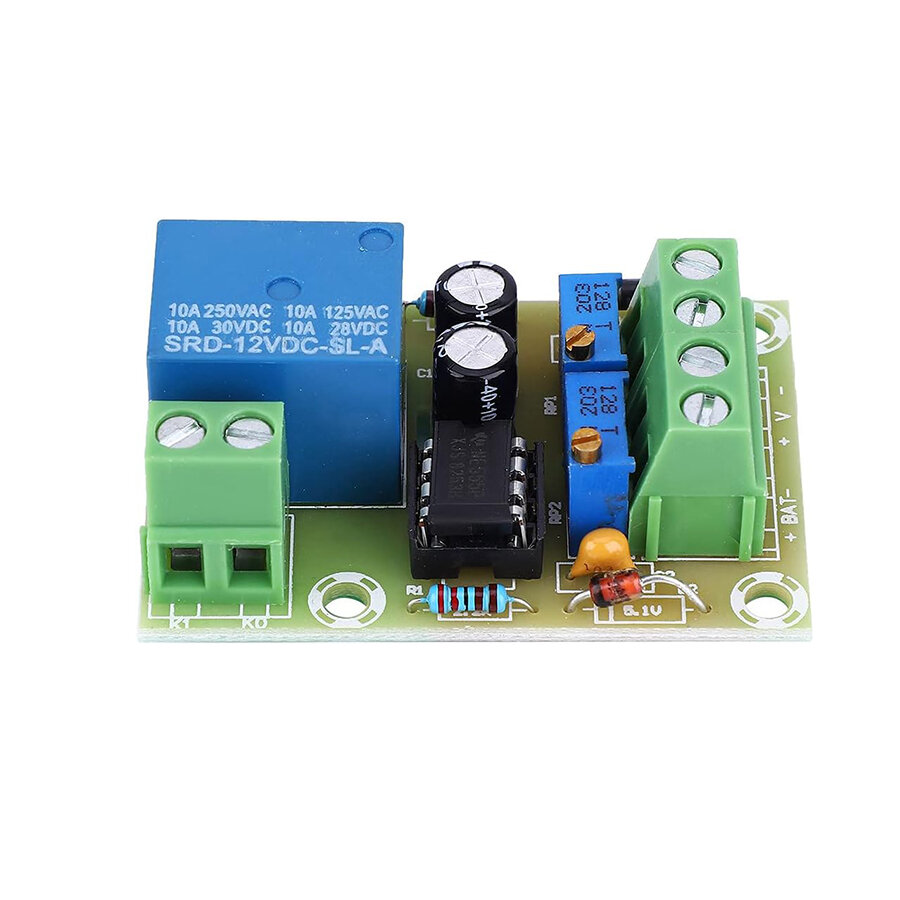

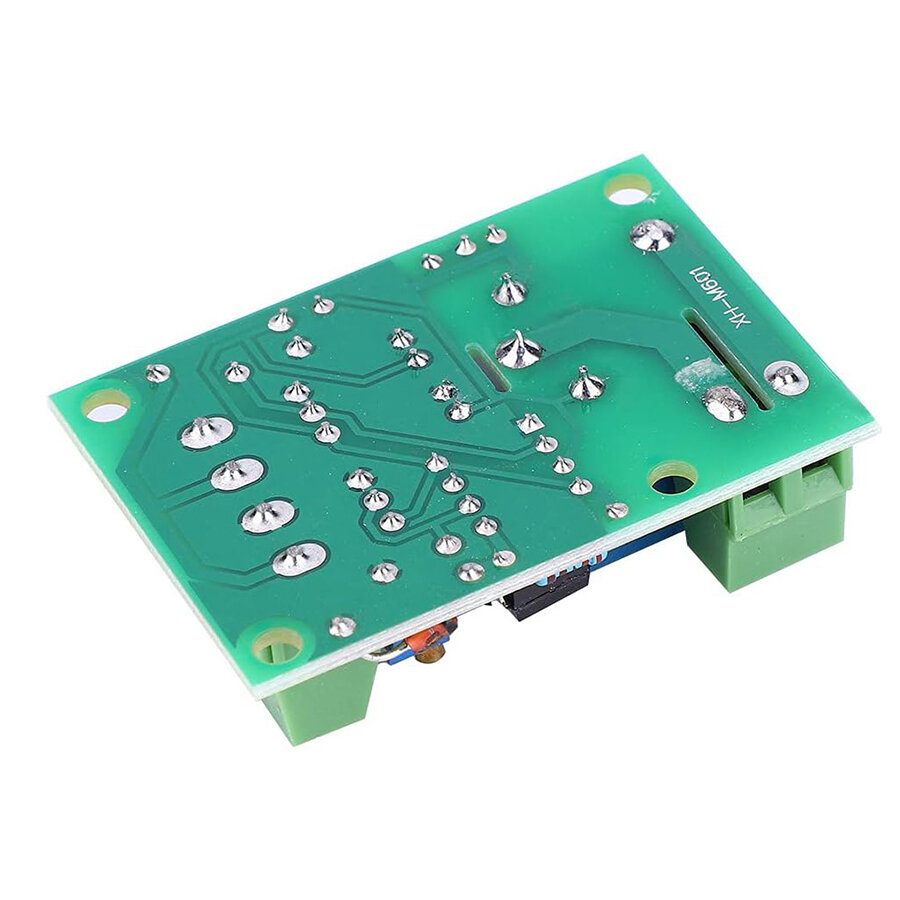

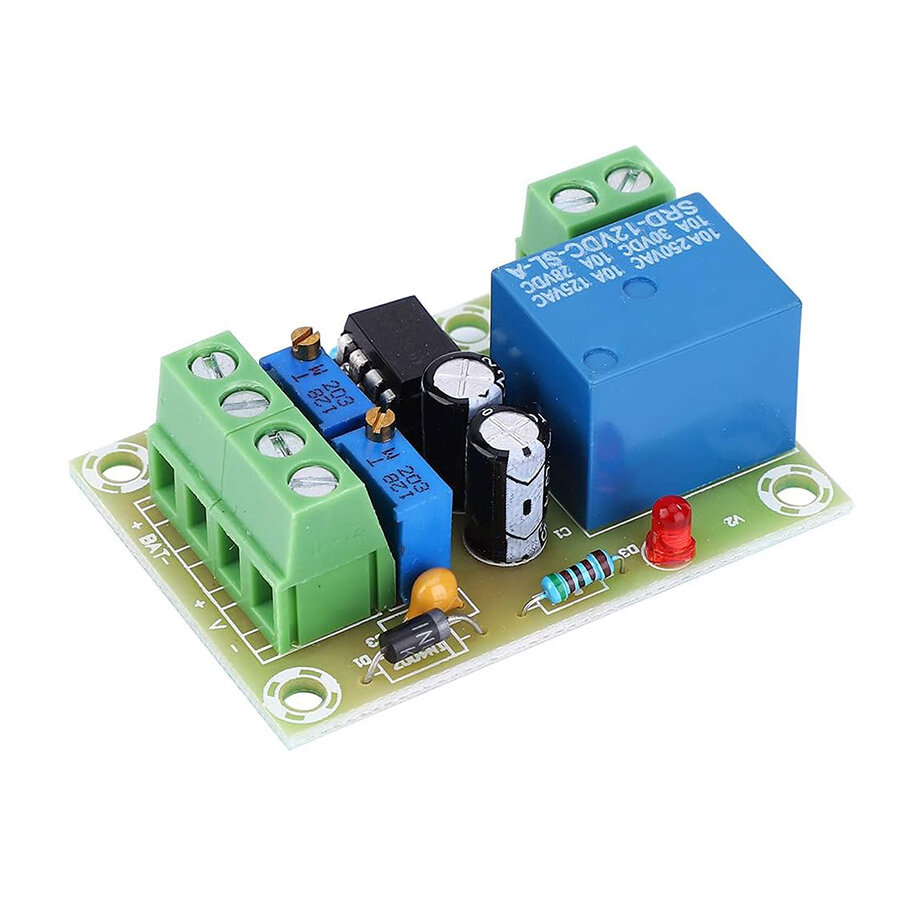

XH-M601 12V Battery Charge Control Circuit

Category: Charging ModulesBrand: MotorobitProduct code : PAG.SRJ.01.000068
111,25 TL + VAT
133,50 TL
111,25 TL + VAT
133,50 TL
100+ Product
Add to Favorite
RecommendCommentAlarm Price

XH-M601 12V Battery Charge Control Circuit

The XH-M601 12V Battery Charge Control Circuit is an Intelligent Charger Power Control Panel Automatic Charging Power Control Board designed for 12V battery systems. It offers automatic charging functionality and precise power management. Widely used in various applications for efficiently charging and controlling 12V batteries, it is a versatile and essential component for power supply management.

Specifications

  • Power Supply: 13.8-14.8V
  • Relay Operating Voltage: 12.4V
  • Relay Cut-off Voltage: 14.8V
  • Voltage Tolerance: +/-0.1V

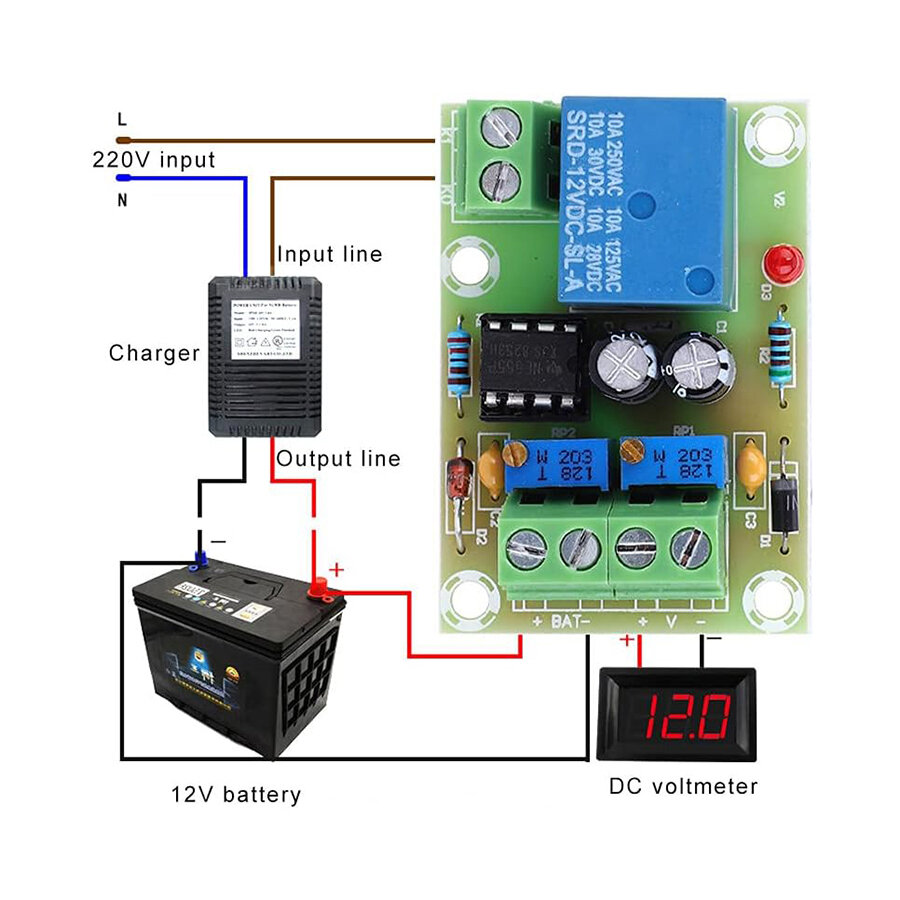

  • Voltage Detection Method: DC voltmeter
  • Charging Type: 12V battery

Trimpot Settings

  • RP1: Sets the starting voltage for battery charging (low voltage setting: turn clockwise to increase voltage, turn clockwise to decrease voltage) (If you turn it counterclockwise, it will decrease)
  • RP2: Sets the battery charging cut-off voltage (low voltage setting: turn clockwise to increase the voltage, turn counterclockwise to decrease it)
