XILINX DLC9LP Debugger Programmer

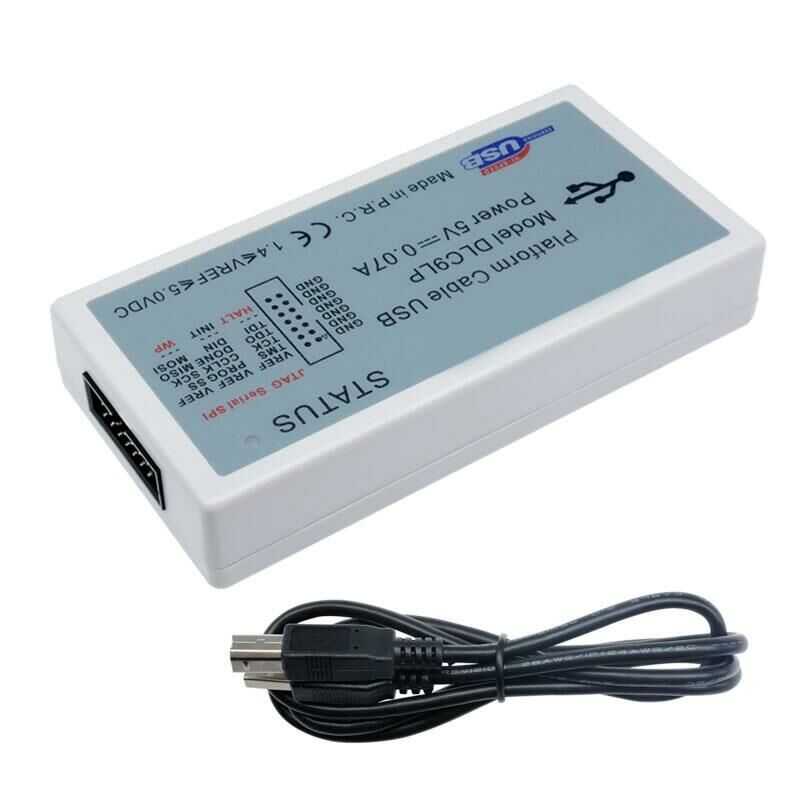

Xilinx Platform USB Cable for Xilinx FPGA and CPLD Devices. Platform Cable USB is a high-performance download cable that connects to user hardware for programming or configuring any of the following Xilinx devices:

• ISP Configuration PROMs

• CPLDs

• FPGA 's

Platform Cable USB plugs into the USB port on a desktop or notebook computer with a ready-to-use Hi-Speed USB A-B cable. It receives all operating power from the hub port controller. No external power supply required. A sustained slave serial FPGA configuration transfer rate of 24 Mb/s is possible in a Hi-Speed USB environment. Actual transfer speeds may vary if the hub's bandwidth is shared with other USB peripheral devices.

Features:

JTAG, Slave -Supports serial and SPI
Interfaces to devices powered by 5V (TTL), 3.3V (LVCMOS), 2.5V, 1.8V and 1.5V
Selectable target clock frequency, software Supports automatic frequency setting
Supports downloading and debugging of Xilinx CPLD/FPGA devices
Support JTAG, Slave Serial, SPI download mode, configurable for all Xilinx devices.

Supported Software

Xilinx ISE
iMPACT
ChipScope

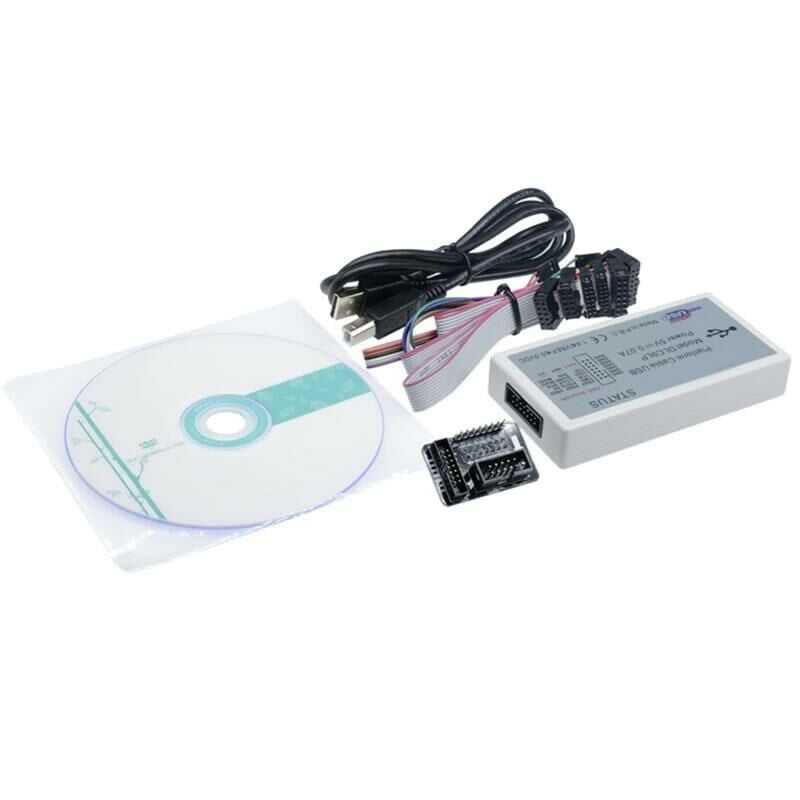

Package Content:

1x Platform Cable USB Adapter – DLC9LP

1x 1 to 3 Way Multi-Head PCB Adapter

1x USB 2.0 Cable

1x (5×2) 10-pin female to 10-pin female 2.54 mm step header JTAG cable

1x (7×2) 14-pin female to 14-pin female 2.54 mm step header JTAG cable

1x (7×2) 14-pin female to 14 pin female 2.0 mm step header JTAG cable

1x (7×1) 7-pin female to 7-pin female 2.

1x CD for Installation
