YF-S302 3.5-24V Water Flow Sensor (Marine) Flowmeter G1/4'' 0.3-6L/Dk
198,00
TL
+
VAT
237,60
TL
Notify Me When It Arrives
198,00
TL
+
VAT
237,60
TL
Add to Favorite
RecommendCommentAlarm Price

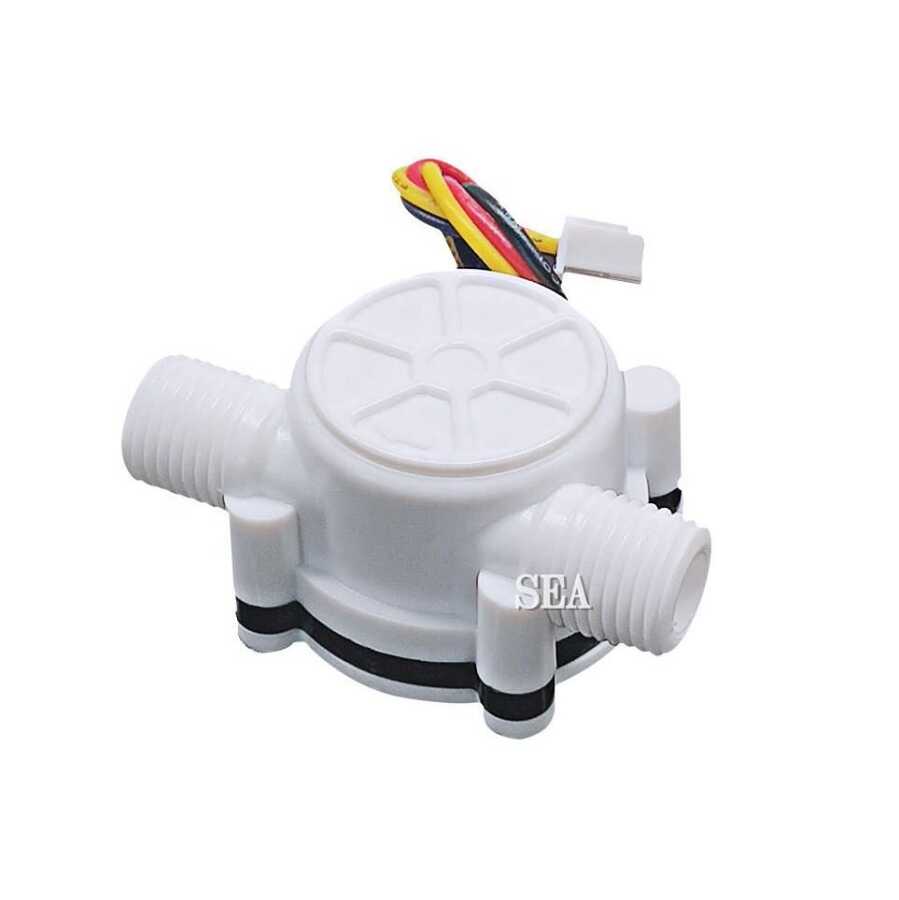

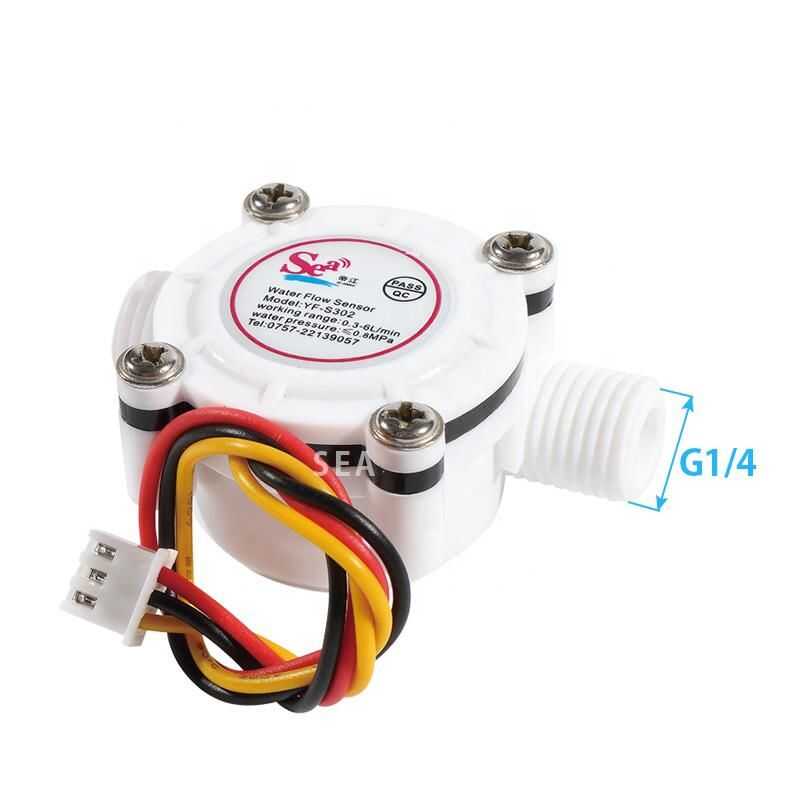

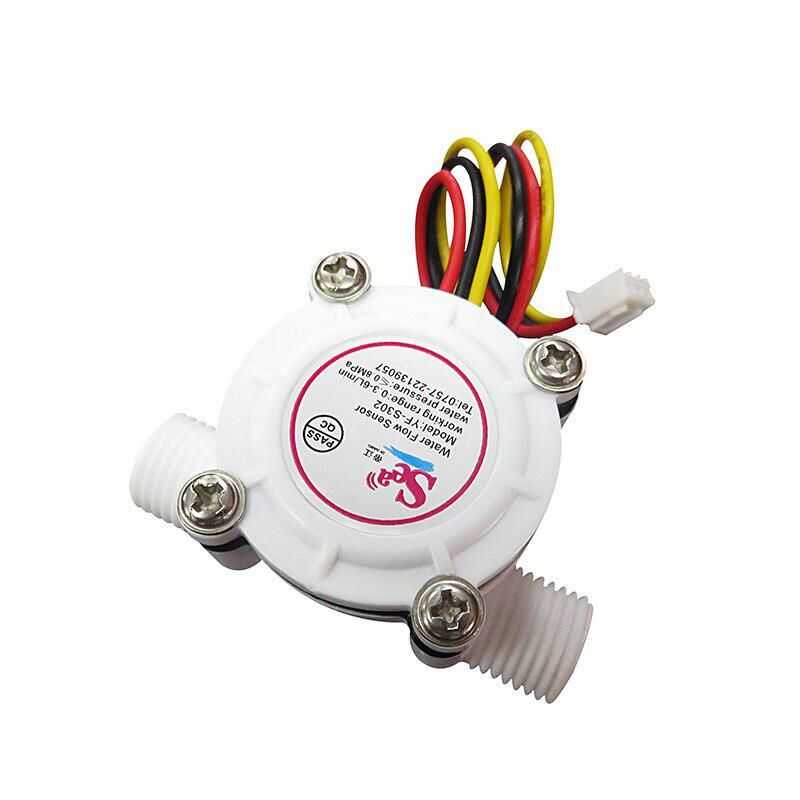

YF-S302 3.5-24V Water Flow Sensor (Marine) Flowmeter G1/4" 0.3-6L/Min
YF-S302 3.5-24V Water Flow Sensor is mainly composed of a plastic valve, water flow rotor assembly and a Holzer sensor. With the rotation of the magnetic rotor and the change of flow rate, the rotation speed changes, and the output of the Holzer sensor corresponds to the pulse signal by the controller, feedback to the controller to determine the size of water flow. When water passes through the flow rotor assembly, the magnetic rotor will rotate and the Speed will change as the flow changes. The Hall current sensor output corresponds to the pulse signal and feedback to the controller, then the controller controls the flow. It can be used for water heaters, credit card machines, water vending machines, flow meters. .
Cable Connections
Red: Positive(+)
Yellow: Signal output
Black: Negative(-)
Applications
Can be used in water heating systems, automatic water dispensers and other flow measurement equipment.
Technical Specifications
- Model: YF-S302
- Material: Plastic
- Hydrostatic pressure: ≤ 0.8MPa
- Operating voltage range : 3.5 ~ 24V
- Flow Range: 0.3-6L/min
- Cable Length: 15 cm
- Length (mm): 54
- Analog Sensor
- Up to 5% accuracy
- Standard 1/4" Nozzle Size
