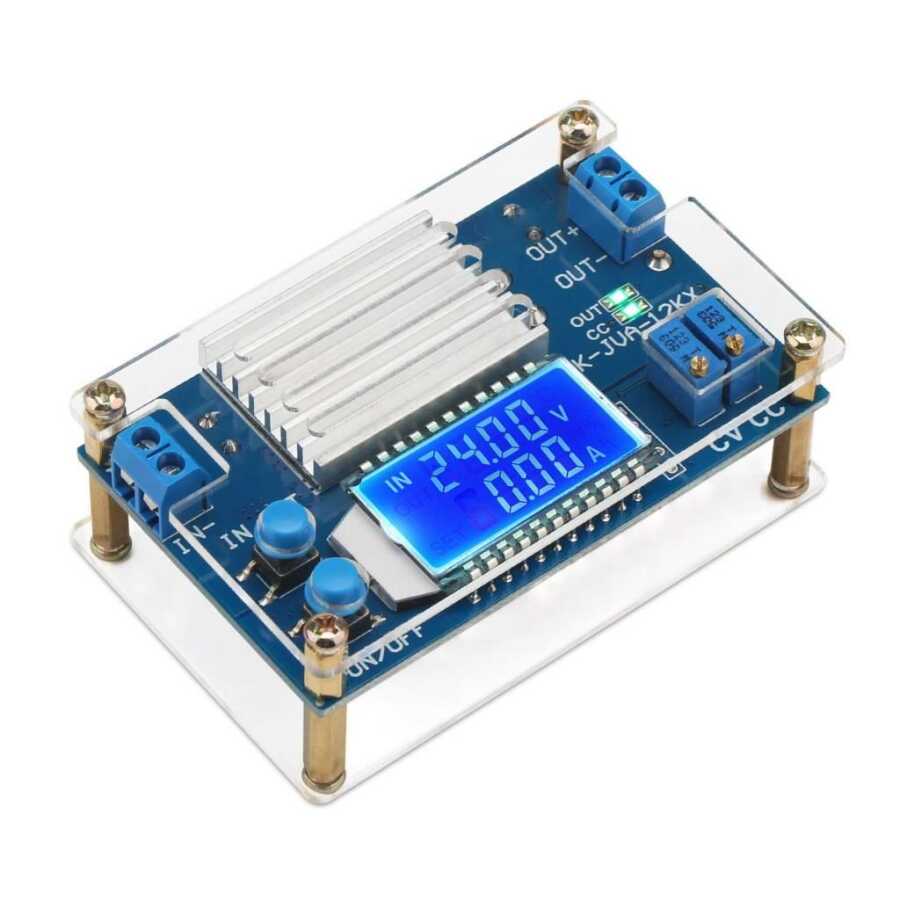

ZK-12KX 12A Adjustable Voltage Reducer with Display

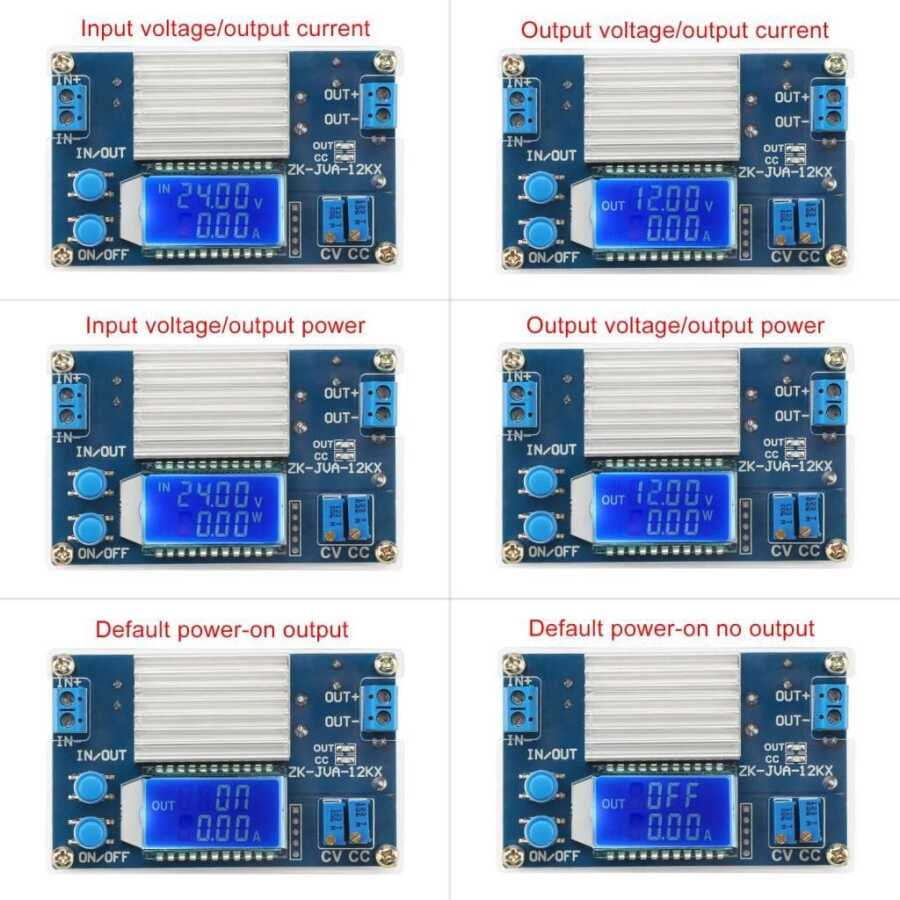

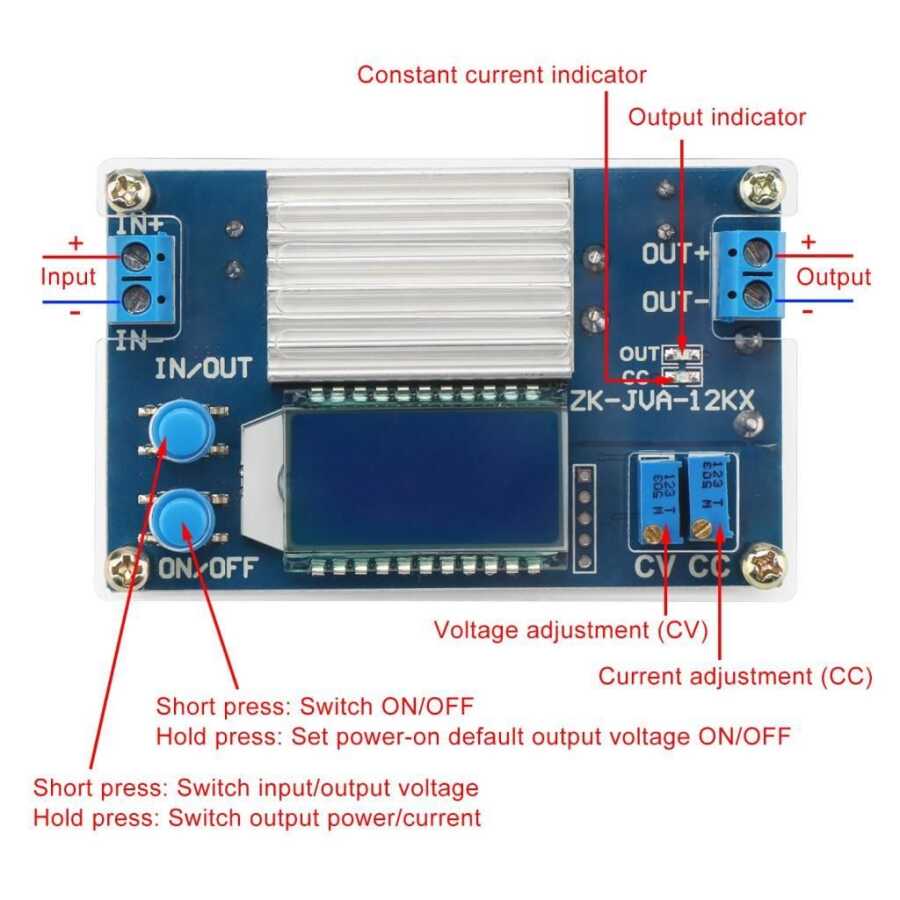

This product allows you to get constant voltage and amperage output, and you can view the input voltage and amperage and output voltage and amperage separately from the screen on it. It is a voltage regulator. You can adjust the display options with the buttons on it, and the output voltage and amperage with the trimpots.



• Operating Voltage: DC 5.3V-32V
• Output Voltage: DC 1.2V-32V
• Output Current: 12A (12A needs heatsink; 8A lasts for a long time)
• Output Power: 160W (160W needs heatsink; 120W is for 8A)
• Voltage Display Range: 0 ~ 32V
• Voltage Display Sensitivity: +/- 0.5V
• Voltage Display Resolution: 0.05V
• Valid Display Range: 0 ~ 12A
• Current Display Sensitivity: +/- 0.3A
• Voltage Display Resolution: 0.01A
• Conversion efficiency: About 96%
• Operating current: 25mA
• Anti-reverse Protection: Yes
• Anti-backflow protection: Yes
• Operating Temperature range: -20 ℃ ~ 85 ℃
• Operating humidity range: 0% -95% rh
