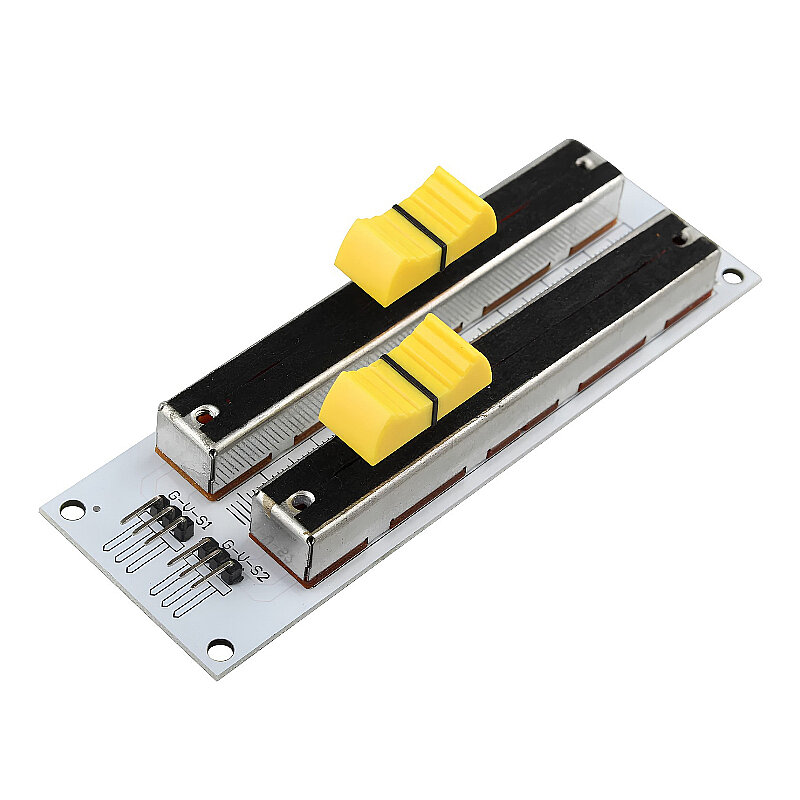

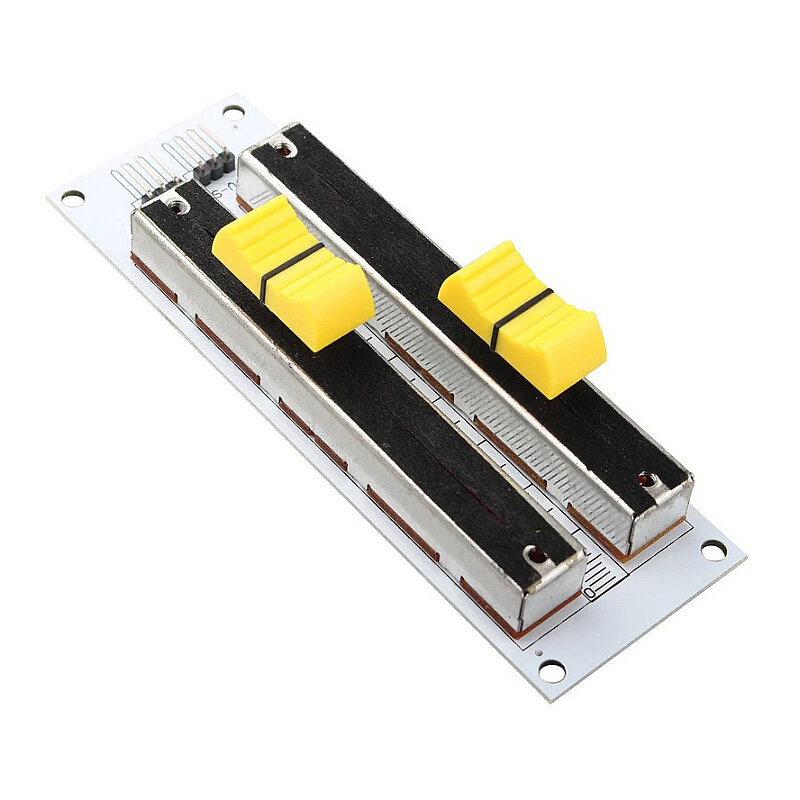

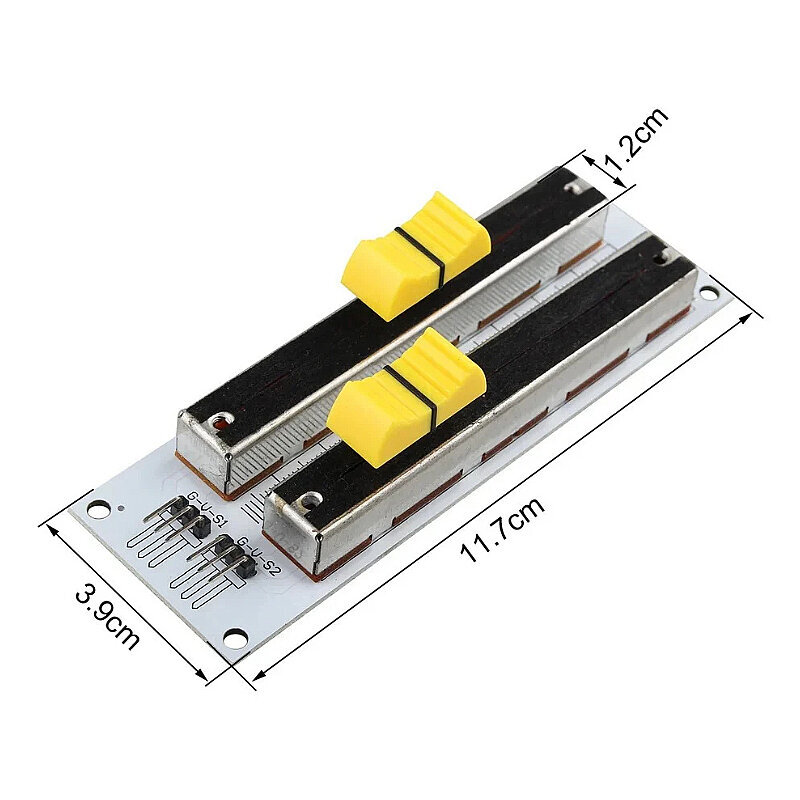

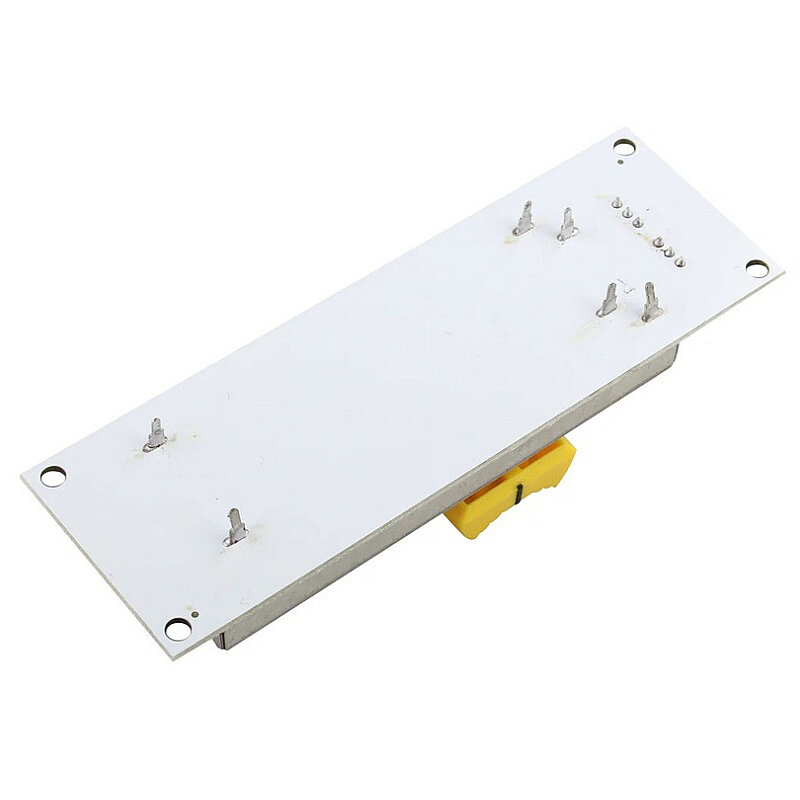

10K Dual-Channel Linear Slide Potentiometer Module

10K Dual-Channel Linear Slide Potentiometer Module

The 10K Dual-Channel Linear Slide Potentiometer Module is an analog input module designed for electronic control and user interface applications; it provides a variable analog voltage output based on the position of the slider.

The 10K linear slide potentiometer on the module allows for the generation of an analog control value by changing the position of the mechanical slider. When connected to the analog inputs of Arduino or similar microcontrollers, the physical position of the slider can be converted into a digital value via software.

Specifications

• Supply Voltage: 5V DC
• Supply Connections: V / G
• Potentiometer Value: 10KΩ
• Potentiometer Structure: Dual-row / dual-channel
• Control Type: Linear slide
• Output Type: Analog voltage
• Number of Analog Channels: 2
• Signal Outputs: 2 analog outputs
• Arduino Example Connection: A0 and A1
• Resistance Change: Linear change based on slider position
