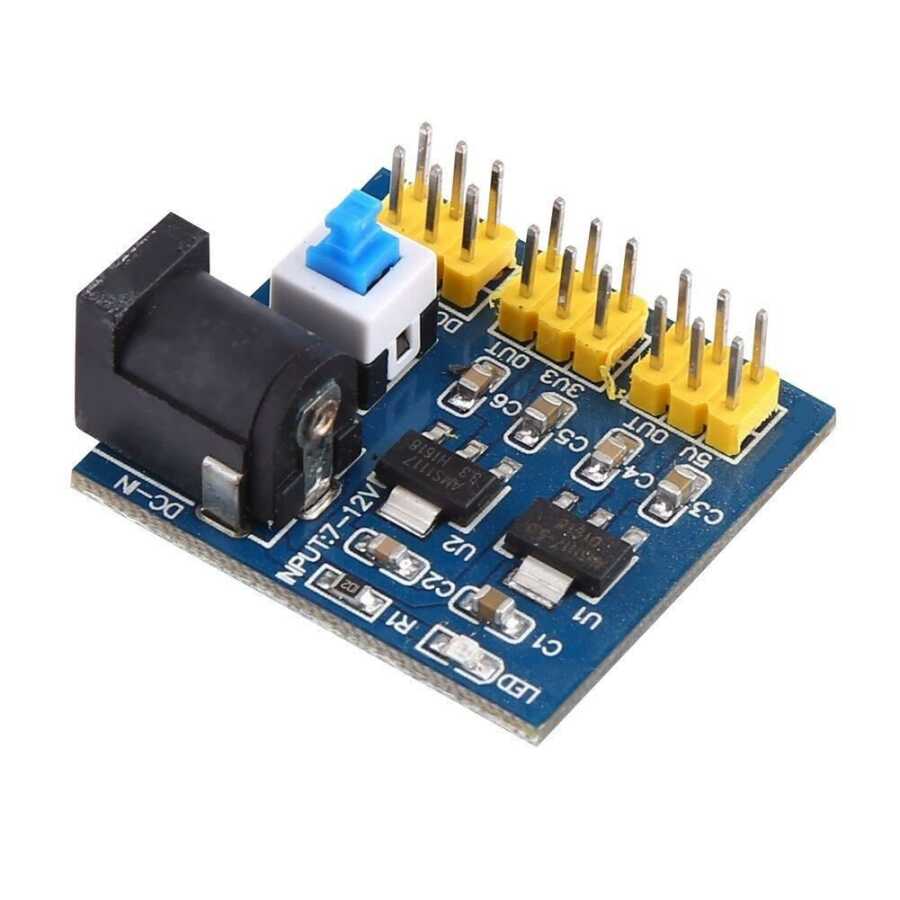

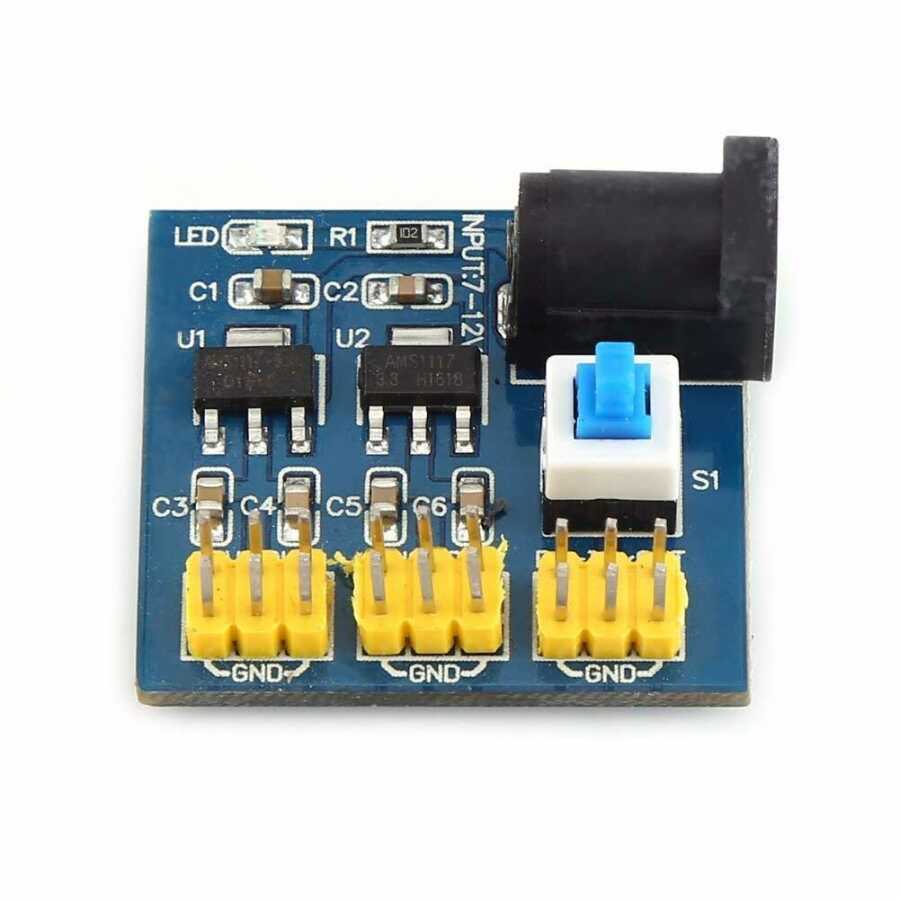

12V Input 3.3V, 5V Multiple Output Regulator Board

DC-DC 6-12V to 3.3V 5V 12V Power Module Multi-Output Voltage Conversion, Buck Converter or also known as a Surge Converter.

The module has the ability to vary the output of the power supply(s) before feeding it to the load to deliver the specified power to your load.

The device is very flexible and easy to use. The module operates with 6V - 12 V DC input and provides three fixed DC outputs: 3.3V, 5.0V and a third output that is a direct connection to the DC input.

Your electronic design Perfect for providing backup power for electronics projects, every DIY hobbyist should have a few of these flexible power supplies. They can also be used as a multi-output constant voltage DC power supply in electronic equipment designs.

Technical Specifications

Output power on/off switch
Two-row multi-pin output, easy to use and connect
The red LED turns on when the input DC power is supplied and the output is ON.
3.3V DC at 800mA maximum current
5.0V DC at 800mA maximum current
12V DC (12V output is directly connected to the input, i.e. with 12VDC input, this output will be 12VDC; with 9VDC input, this output will be 9VDC)

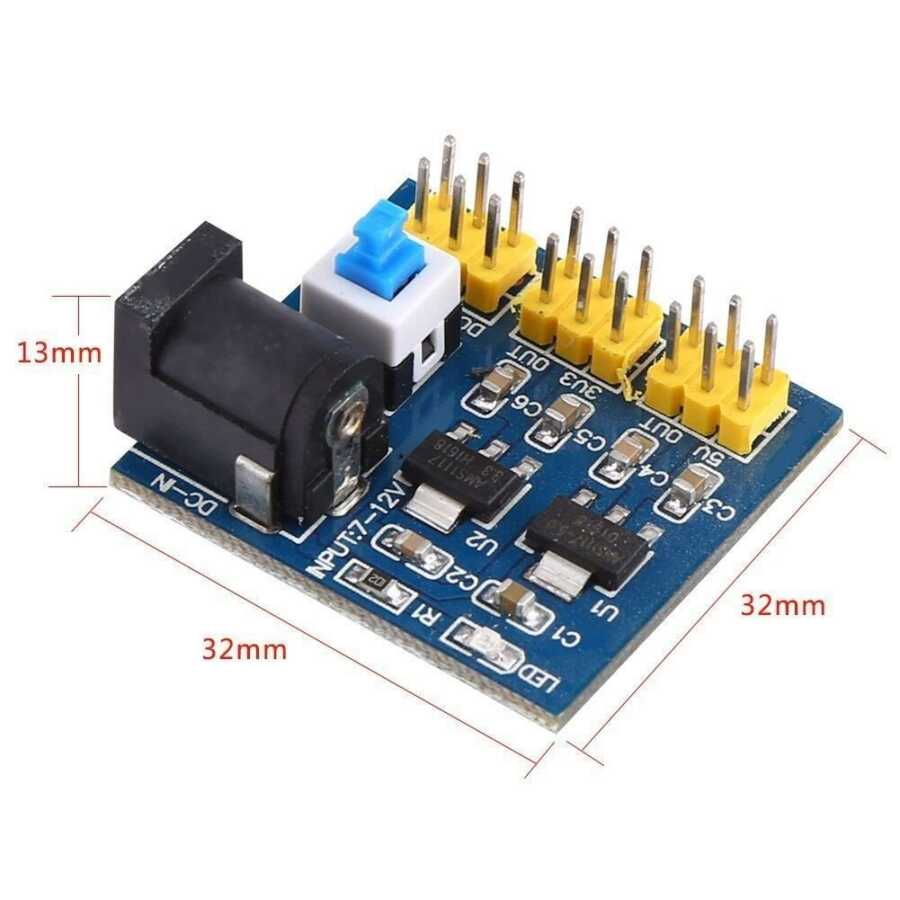

Small and Convenient Module
