1.3'' 128x64 Oled LCD Screen (B)

1.3'' 128x64 Oled LCD Screen (B)

1.3'' 128x64 Oled LCD Screen (B), You can use this 1.3" graphic OLED screen in your Arduino and other microcontroller projects. Thanks to its OLED technology, you can obtain high-contrast images without the need for backlight.

Usage Guide

Features

• SKU: 10451
• Chip: SH1106

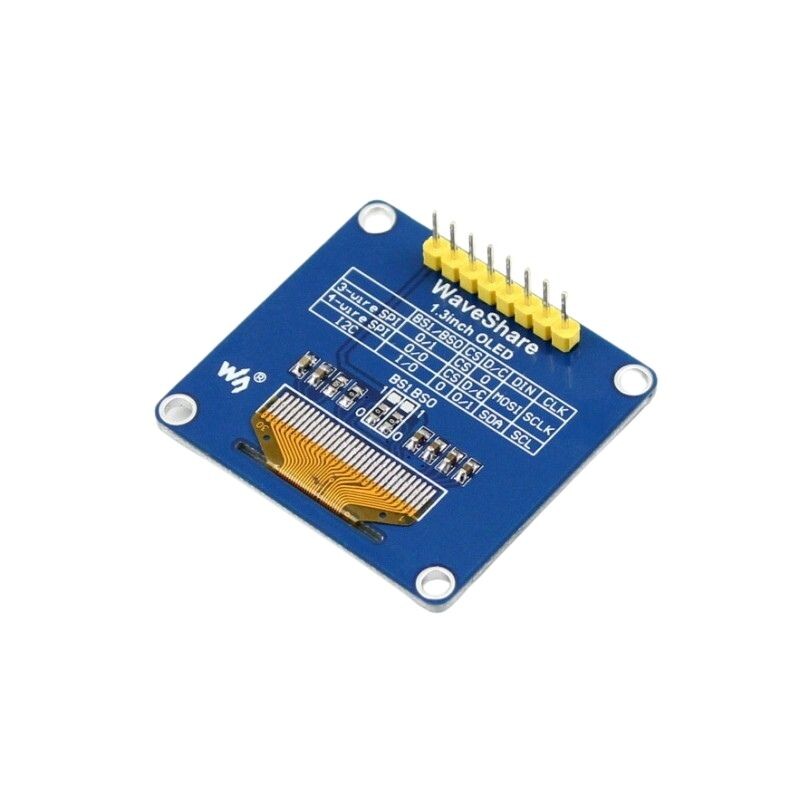

• Interface: 3-wire SPI, 4-wire SPI, I2C
• Resolution: 128x64
• Screen Size: 1.3"
• Color: Blue
• Visible Angle: >160°
• Working Voltage: 3.3 / 5VDC

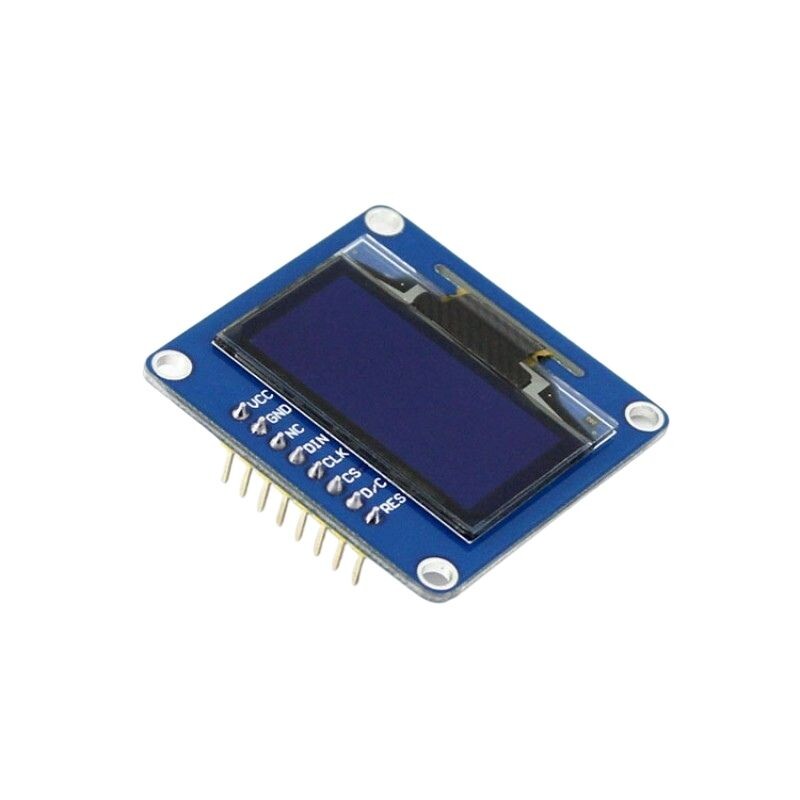

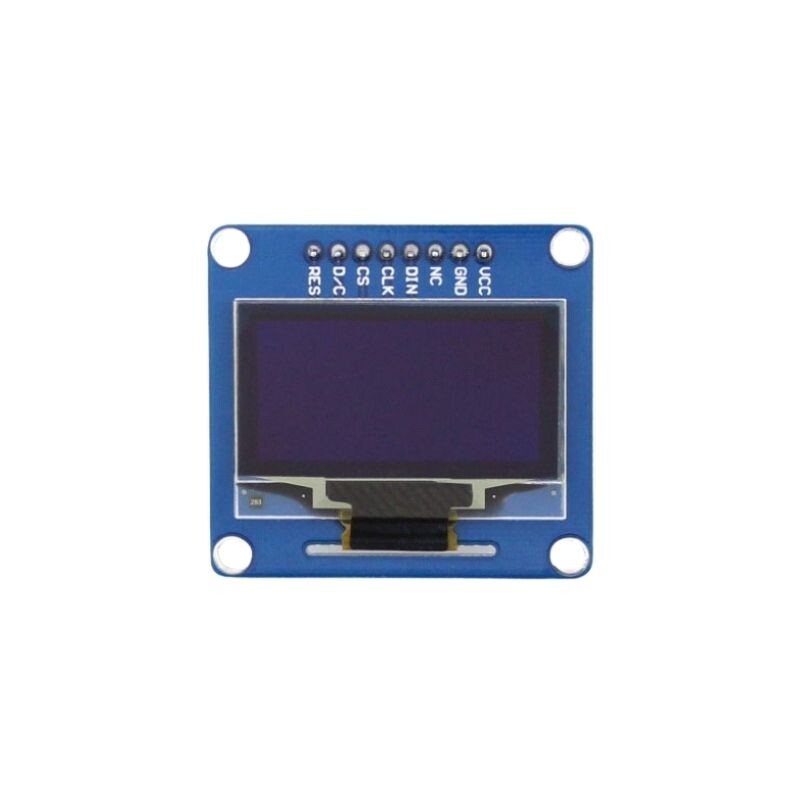

Pinout

• VCC: Power positive (3.3~5V power input)
• GND: Ground
• NC: NC
• DIN Data input
• CLK: Clock signal input
• CS: Chip select, low active
• D/C: Command signal, low level for command, high level for data
• RES: Reset signal, low active
