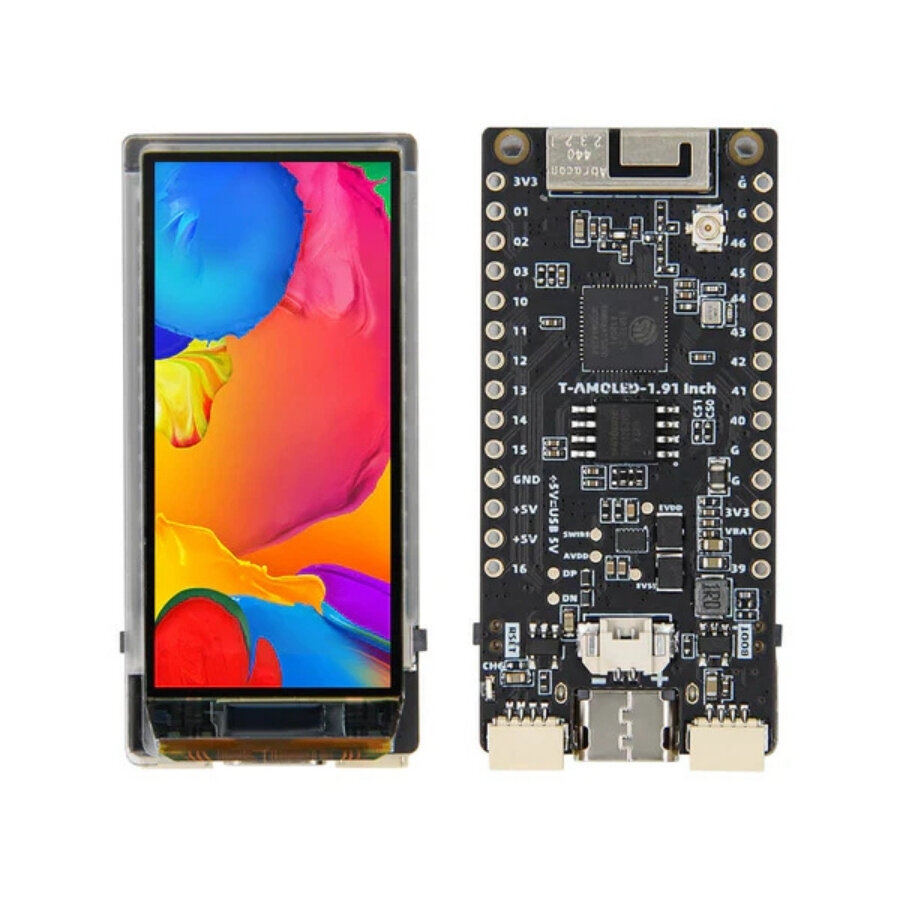

T-Display-S3 V2.0 AMOLED 1.91" Display Development Board - Solderless
T-Display-S3 V2.0 AMOLED 1.91" Display Development Board - Solderless
The T-Display-S3 AMOLED is a display module with a 1.91-inch diagonal screen. Based on the previous S3 module, it is an upgraded version with a screen, resolution, and antenna upgraded from LCD to AMOLED and a 3D antenna. Using an SPI interface, it is compatible with any microcontroller with SPI capability.
The module is equipped with a built-in battery management system, making it a useful solution for portable applications. Its compact size and low power consumption make it ideal for wearable and IoT projects.
In T-Display S3 Version 2, the dimensions and the location of some buttons have changed; choose the correct version according to your preference.
Other T-Display S3 You can access the models here .
You can access the sample code and user manual here
T-Display-S3 AMOLED Technical Specifications | |
SKU | H713 |
MCU | ESP32-S3R8 Dual-core LX7 microprocessor |
Wireless Connectivity | 2.4 GHz Wi-Fi & bluetooth 5(LE) |
Development | Arduino、PlatformIO-IDE、 Micropython |
Flash | 16MB |
PSRAM | 8MB |
Bat Voltage Detection | IO04 |
Onboard functions | Boot (IO00) + Reset + IO21 Button |
1.91 inch RM67162 IPS AMOLED | |||
Resolution | 240(W) X RGB X 536(H) | Interface | QSPI |
Active Area | 19.8*44.22mm | Driver IC | RM67162 |
Viewing Angle | IPS Full View Angle | ||
Package Content
- 1x T-Display-S3 Amoled Touch Version
- 2x Headers
- 1x Power cable
Pinout
