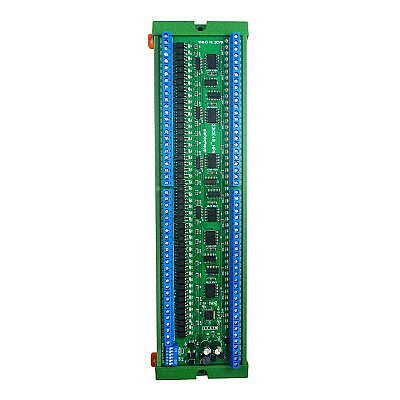

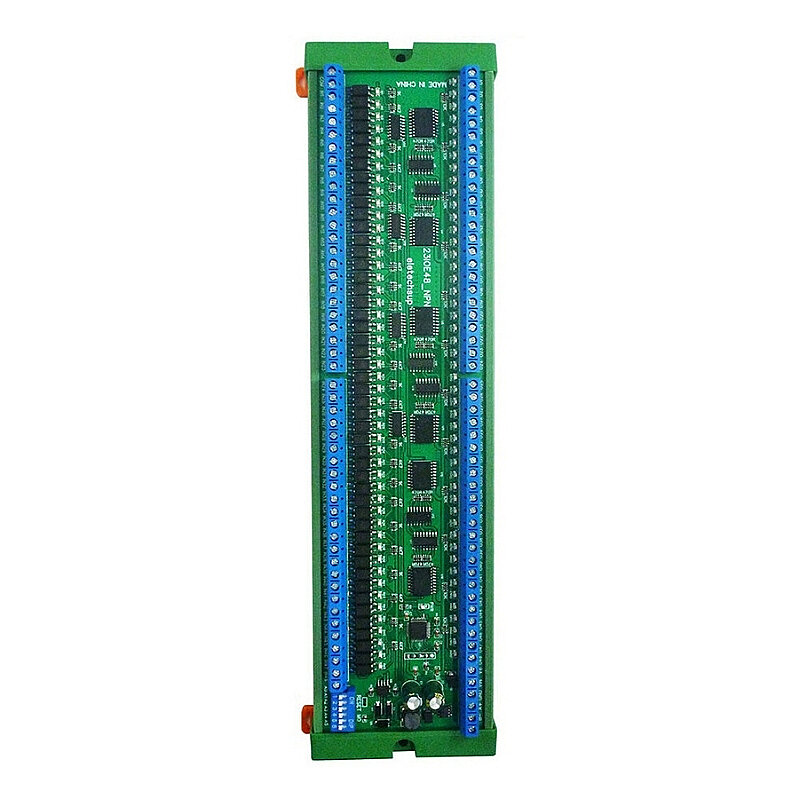

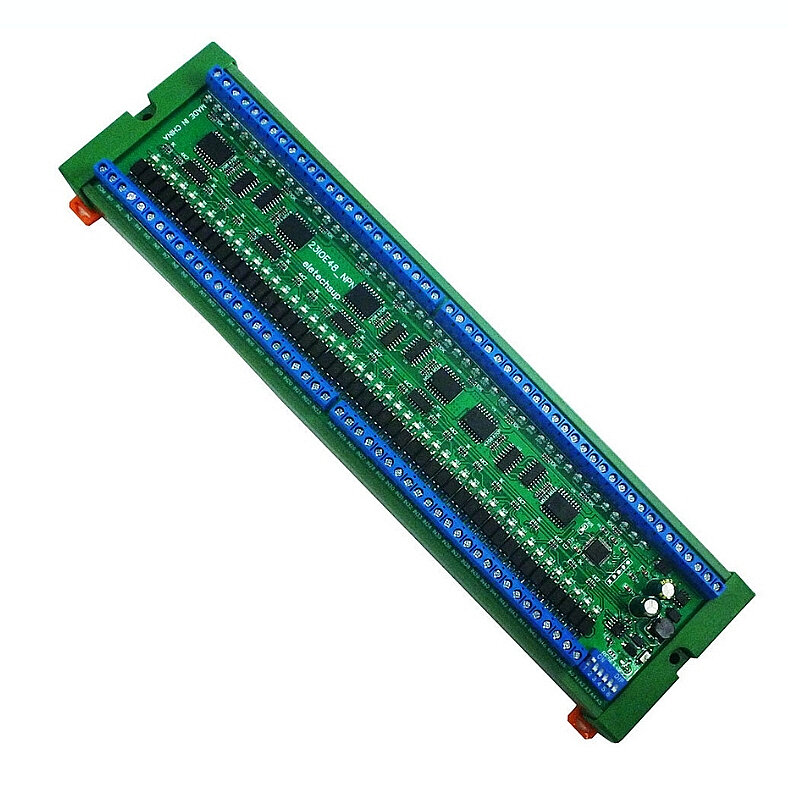

The 23IOE48 48-Channel NPN Multifunctional RS485 PLC I/O Expansion Module (DIN Rail Mount) is a high-capacity RS485 remote I/O module designed to connect a large number of digital inputs and outputs to a central control system in industrial automation and remote I/O applications.

The module features 48 digital inputs (DI) and 48 digital outputs (DO). This allows numerous field devices—such as sensors, push-buttons, limit switches, contactors, relays, solenoids, and similar components—to be connected to PLC, HMI, industrial PC, or microcontroller systems via a single RS485 communication line.

Features

• Number of Digital Inputs: 48 DI
• Number of Digital Outputs: 48 DO
• Input Type: NPN digital input
• Output Type: NPN transistor / solid-state output
• Output Current: Max. 0.3A / channel
• Communication Interface: RS485
• Communication Protocol: Modbus RTU
• Operating Voltage: DC 7–25V
• Control Compatibility: PLC, HMI, PC, and Modbus RTU-supported control systems
• Total I/O Capacity: 96 digital points
• BUS Structure: Suitable for RS485 multi-device communication
