2.4" 240X320 ILI9341 TFT LCD Display

2.4" 240X320 ILI9341 TFT LCD Display

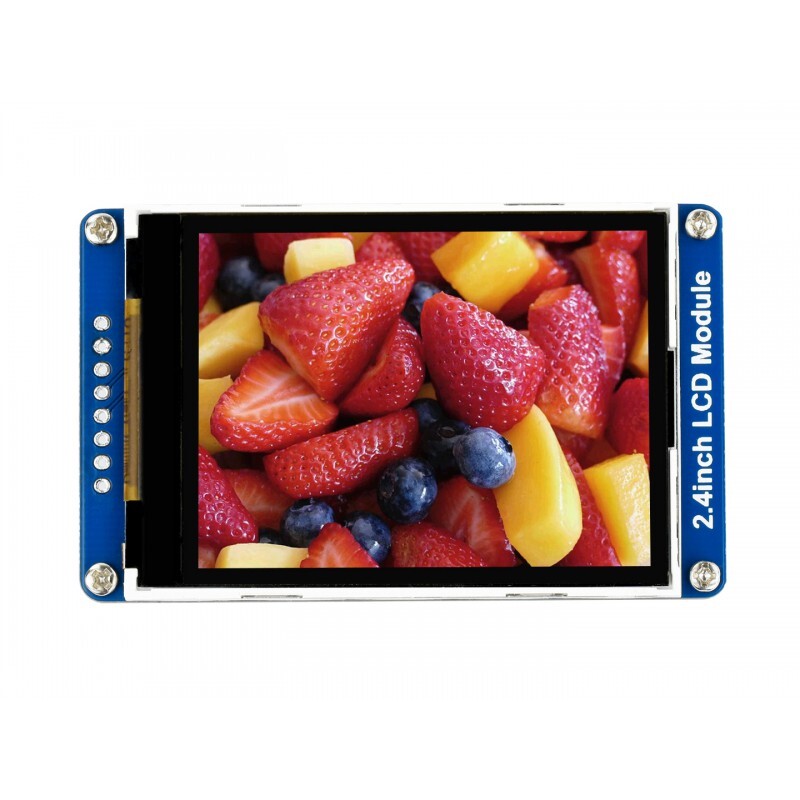

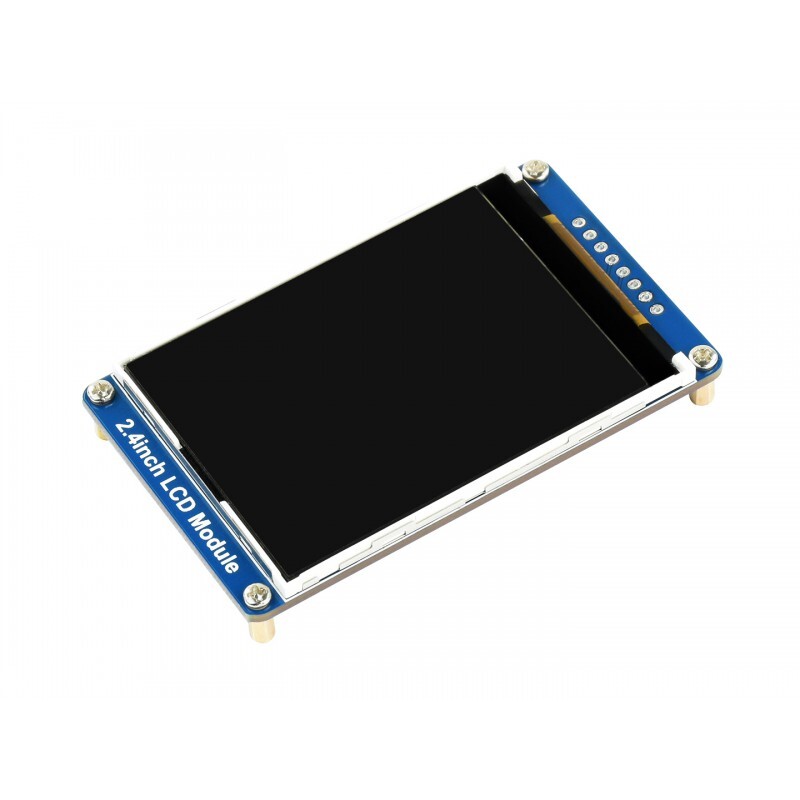

2.4" 240X320 ILI9341 TFT LCD Display, as a 2.4 inch TFT display module with 240 * 320 resolution, uses SPI interface for communication. The LCD has a basic function built-in controller that can be used to draw dots, lines, circles, and rectangles, and can display English, Chinese, and images.

User Manual

Specifications

• SKU: 18366
• Supply Voltage: 3.3-5VDC
• Communication Interface: 4-wire SPI
• Display Panel: TFT
• Driver: ILI9341
• Resolution: 240x320

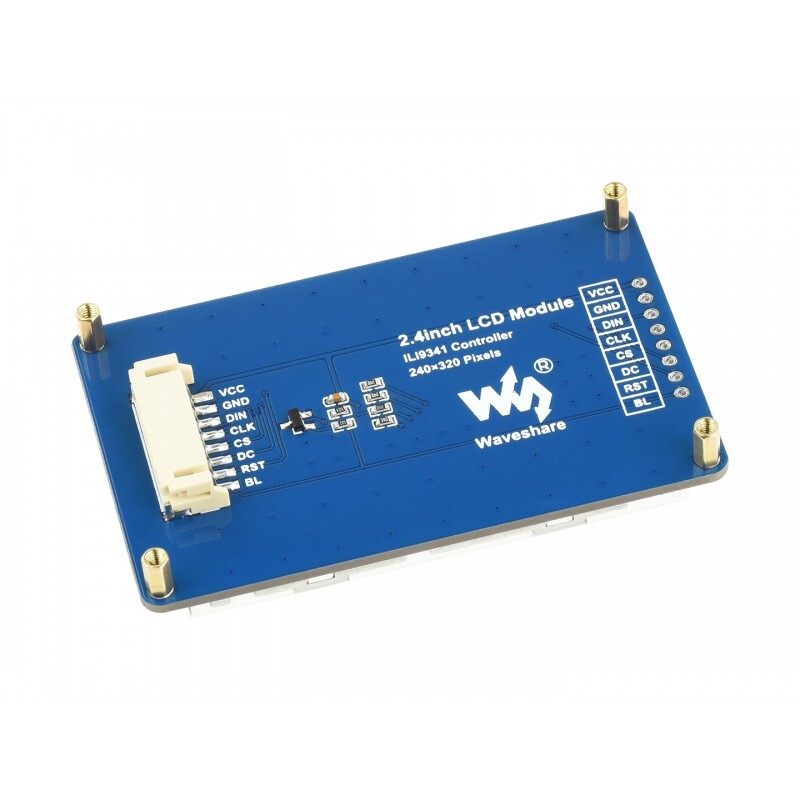

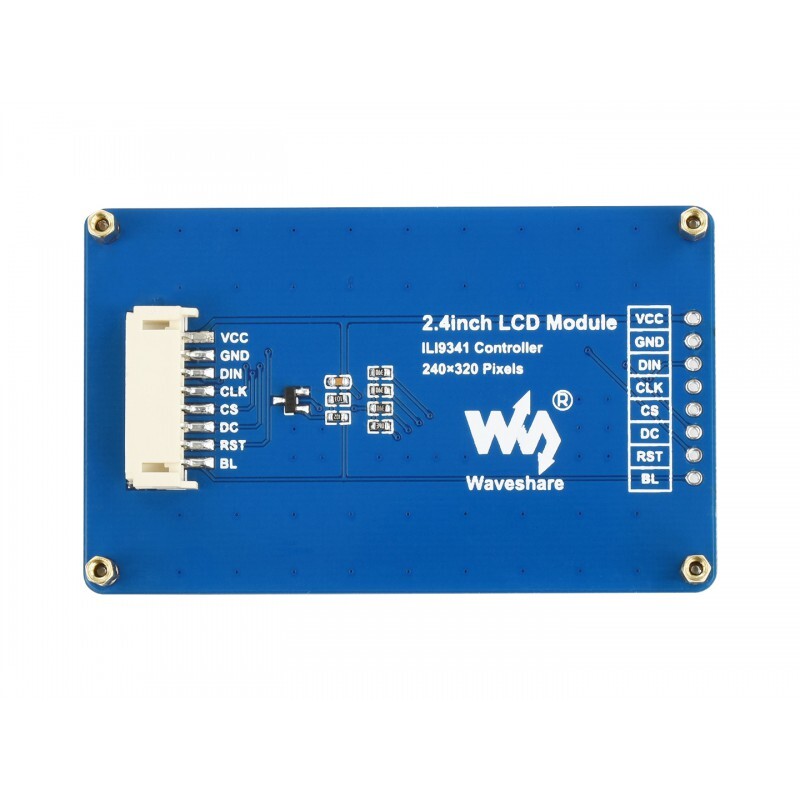

Pinout

• VCC: 3.3/5V
• GND:Ground
• DIN: SPI data input
• CLK: SPI clock input
• CS: Chip Selection
• DC: Data/Command Selection (high for data, low for command)
• RST: Reset
• BL: Backlight
