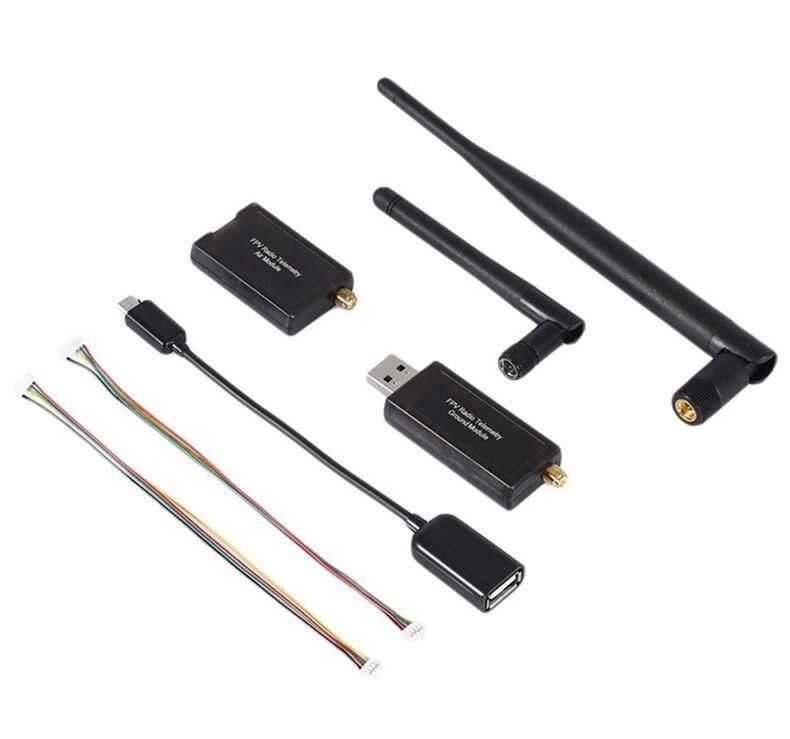

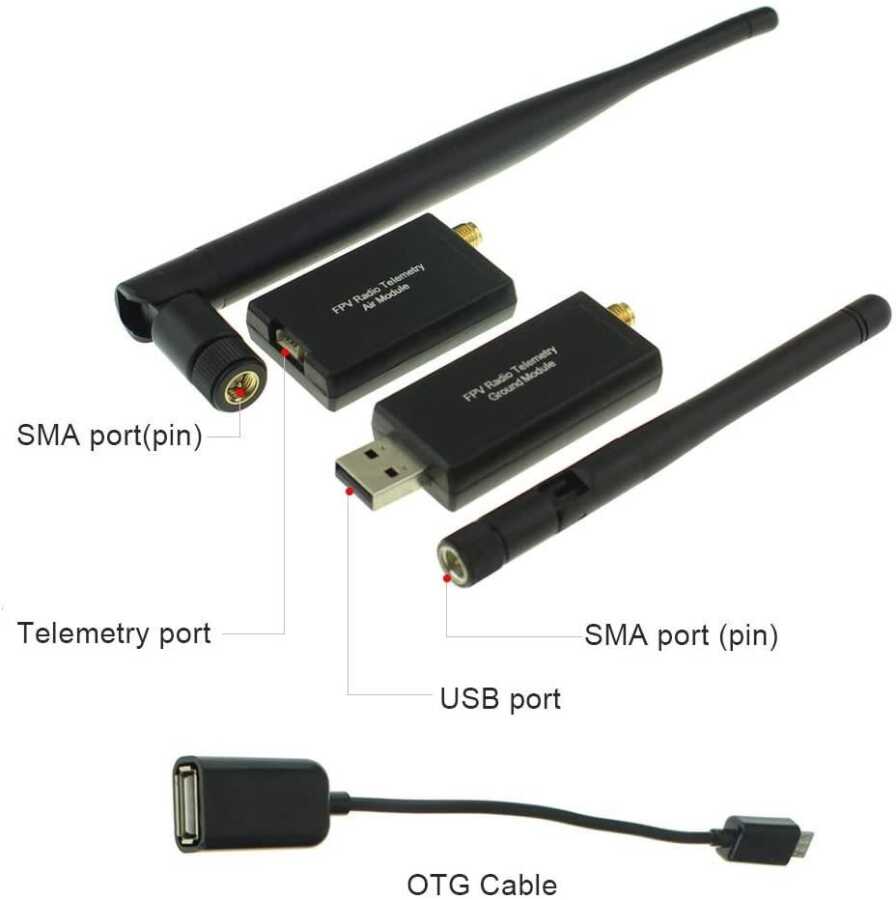

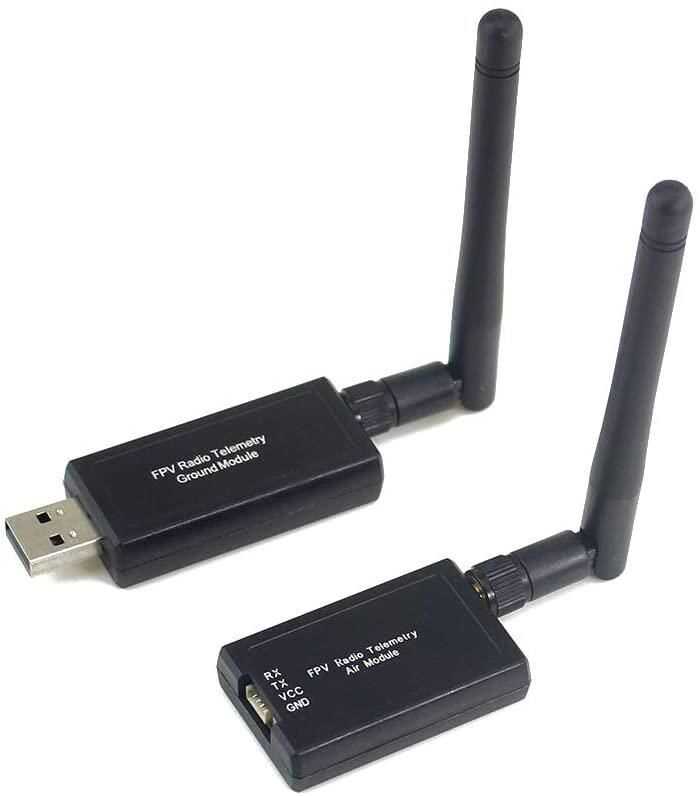

3DR Radio Telemetry 915MHz 500mW - APM Compatible

915 MHz PixHawk / Ardupilot telemetry set allows you to establish a telemetry link between your drone and your computer . It can be directly plugged into the telemetry connection slot on Ardupilot cards.



Firmware updates and configuration are fully supported in ArduPilot APM Mission Planner. Configuration is also possible with the 3DR Radio configurator and AT commands.



Features:

- transmitter range: 5000m (Max. when no interceptor)

- transmitter frequency: 915Mhz

- Baud rate: 57600 (default)

- Operating Temperature : -10-60 dgree

- Operating Humidity: 10% RH - 90% RH (non-condensing)

- Size (no antenna):

- Ground Module: 70mm (L) × 25mm (W) × 12mm (H)

- Air Module: 51mm (L) × 30mm (W) × 11mm (H)

- Weight (with antenna)

- Ground Module: 30.7g

- Air Module: 19.5g
