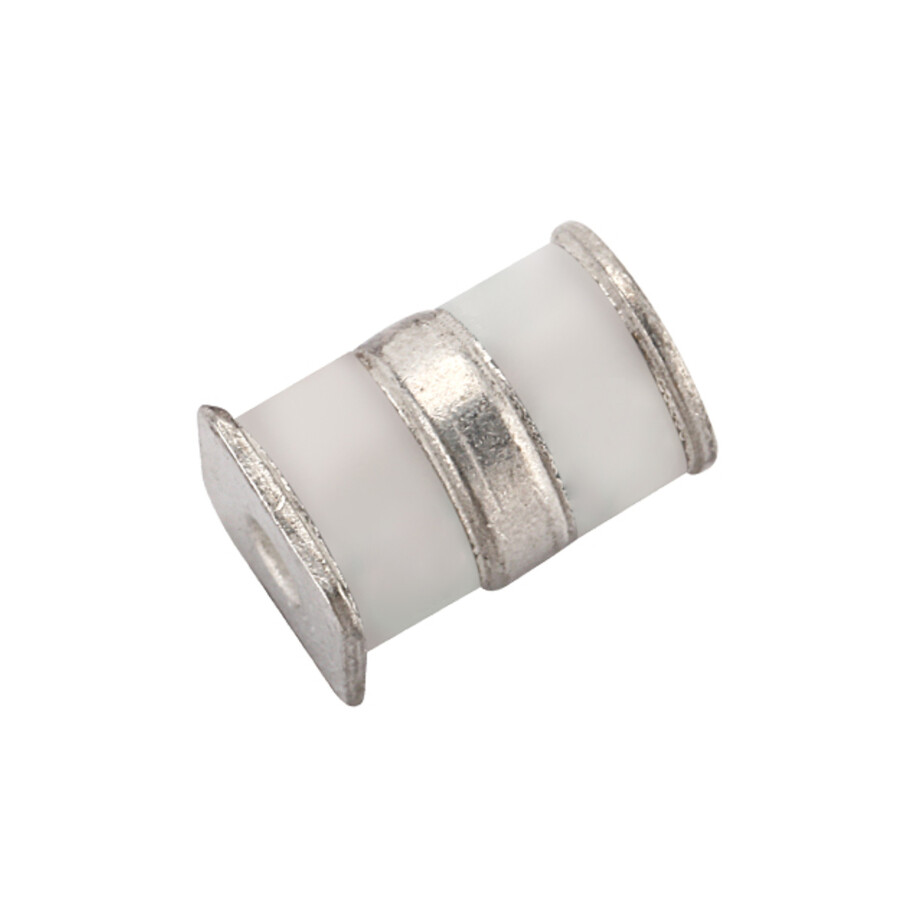

420V Gas Discharge Tube
GDT introduction: Gas discharge tubes (GDT) use noble gases contained in ceramic tubes to provide an alternative circuit path for voltage spikes. The breakdown voltages of the devices have a wide range (tolerance up to 20%). Major applications are high frequency telecommunication lines, stations, security systems, HID and high quality Surge Protection Devices (SPD).
Technical Specifications
- DC Spark Voltage (100V/S): 420V ±20%
- Max. Pulse Discharge Current (8 / 20μs) - 1 times: 15KA
- Max. Pulse Discharge Current (8 / 20μs) - 10 times: 10KA
- Impulse Life (10 / 1000μs) - 100A: 300 times
- Maximum Capacity (1MHz): 1.5pF
