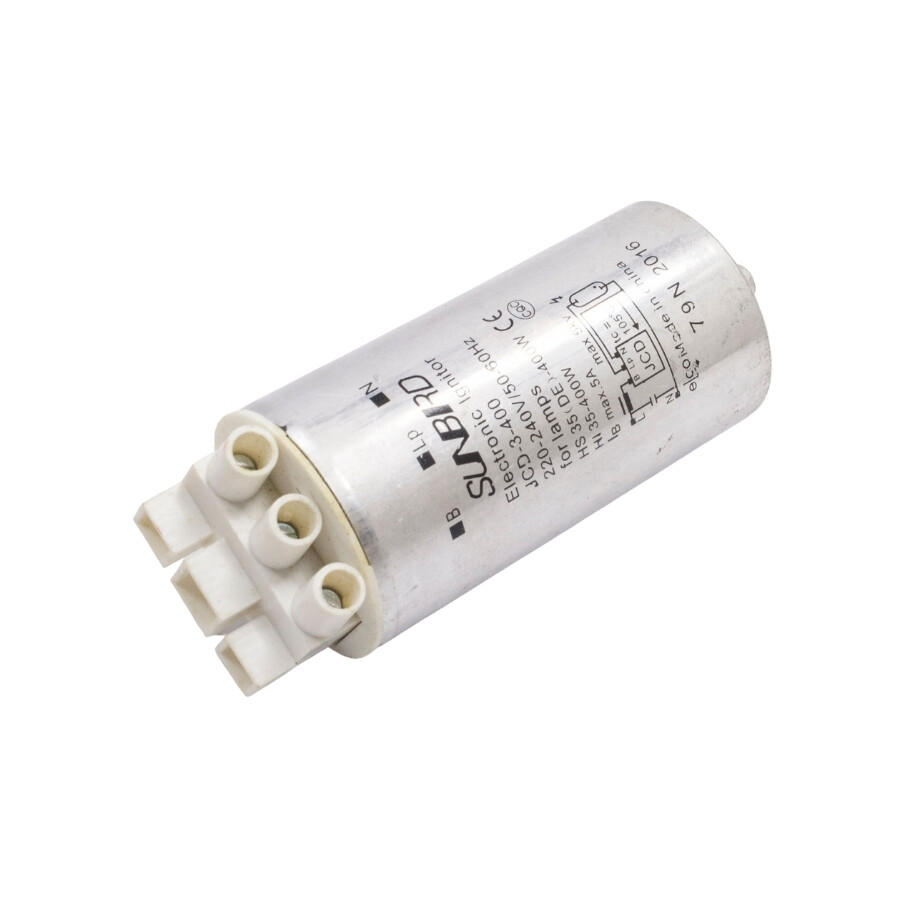

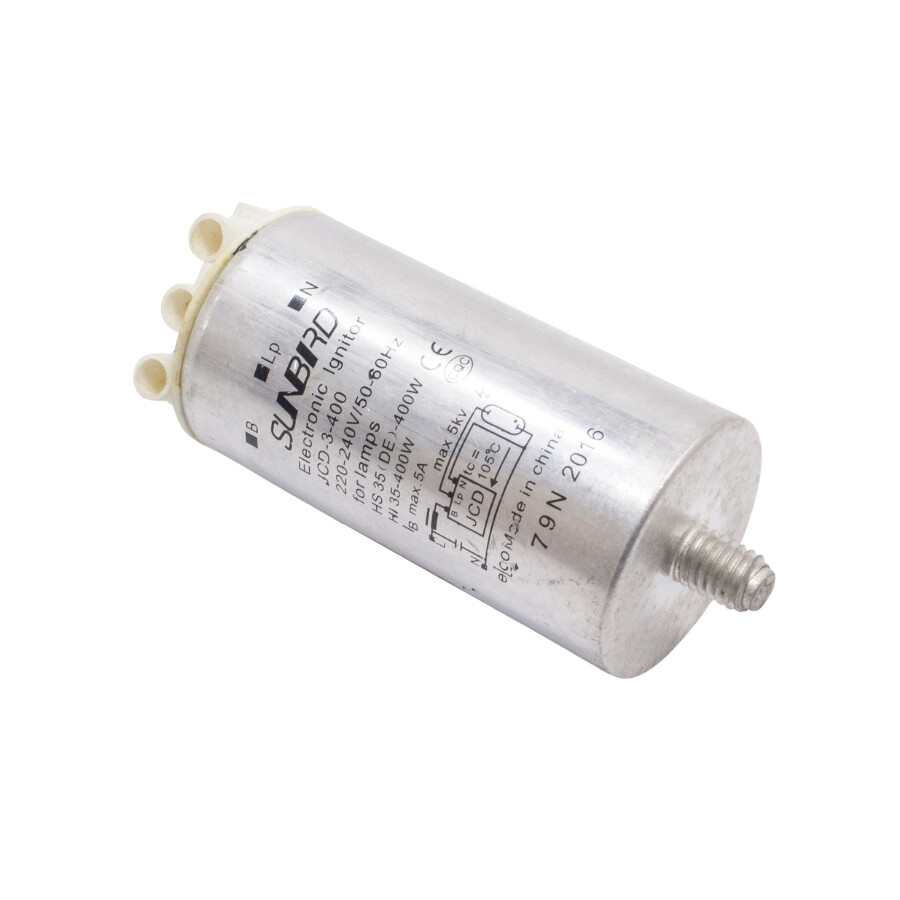

JCD-3-400 35-400W Ignitor

JCD-3-400 35-400W Ignitor

JCD-3-400 35-400W Ignitor, Ignitor can be of different sizes and powers, providing the power required for the operation of lighting devices such as bulbs and fluorescents.Igniter ignitor ensures the operation of lighting devices by making this adjustment in areas where more or less power is needed than the sudden amount of electrical current needed.

Devices that provide a voltage jump for ignition in discharge lamps without the need for any preheating of the electrodes are defined as igniters. Since the voltage required to start the discharge in metallic halide lamps and sodium vapor lamps is higher than the mains voltage (700 – 5,000 V), these lamps are used with igniters. The task of the igniter is to provide the high voltage value required to ignite the lamp. The igniter must be deactivated immediately after the lamp has been ignited.

Features

• Model: JCD-3-400
• Rated Voltage: 220-240VAC
• Frequency: 50-60Hz
• Power: 400W
• Application Areas:Metallic halide lamps and sodium vapor lamps, lighting devices
