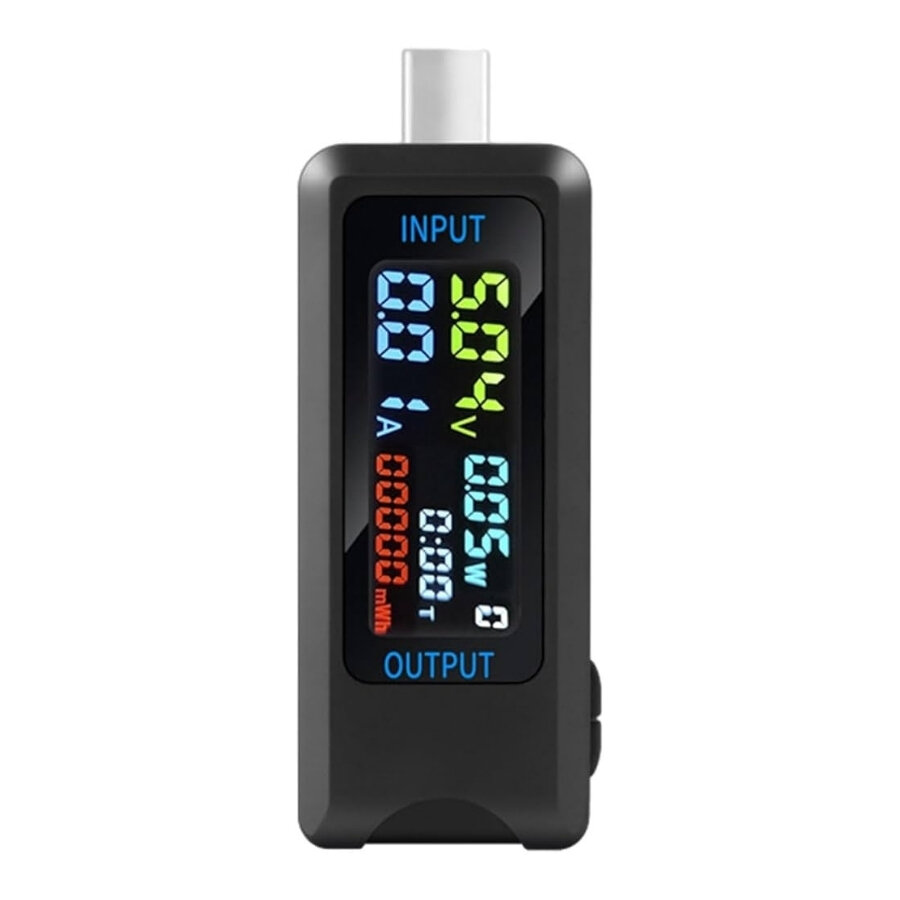

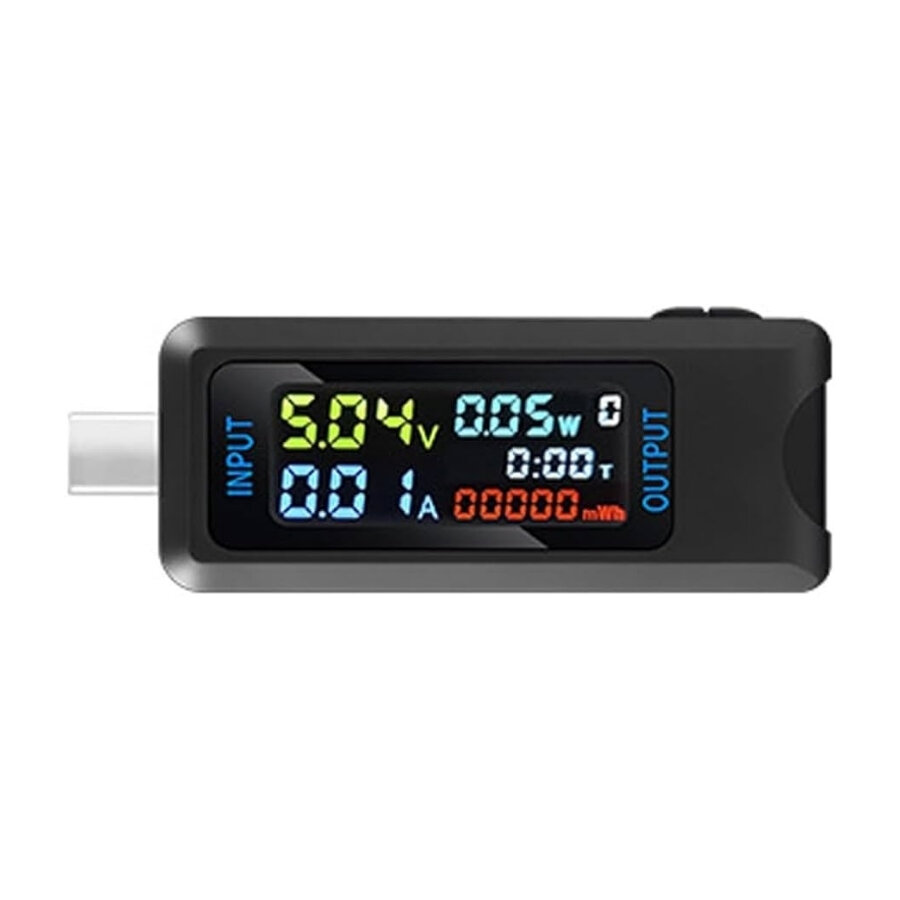

6527-T Multifunction USB Digital Tester - Voltage and Current Meter

The 6527-T Multifunction USB Digital Tester - Voltage and Current Meter is used to check Type-C chargers and portable power supplies for electronic devices. It allows you to check the voltage and current passing through the Type-C socket, as well as capacity, energy, power, temperature, and impedance. It is equipped with an IPS LCD display. It will be widely used for monitoring the charge status of any USB-powered device.

Features

Input Interface: Type-C
Voltage Measurement Range: 4.5 ~ 36V
Current Measurement Range: 0-5A
Sleep Current: 0.02A
Capacity Measurement Range: 0-99999 mAh
Energy Measurement Range: 0-150W
Impedance Measurement Range: 1-999.9 ohm
Temperature Measurement Range: 0 ~ 80°C
Refresh Time: >500 ms/time
Measurement Rate: 0.5 times/second
Operating Temperature: -10 to 60°C
