Multifunctional Type-C+USB Digital Tester

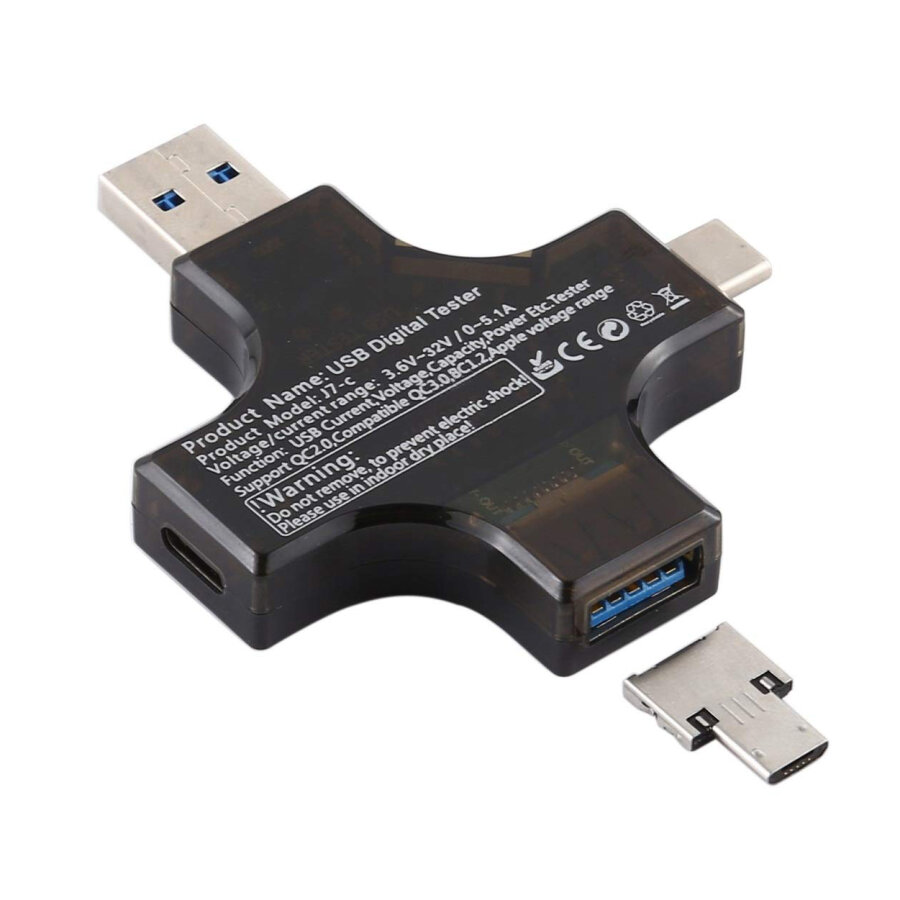

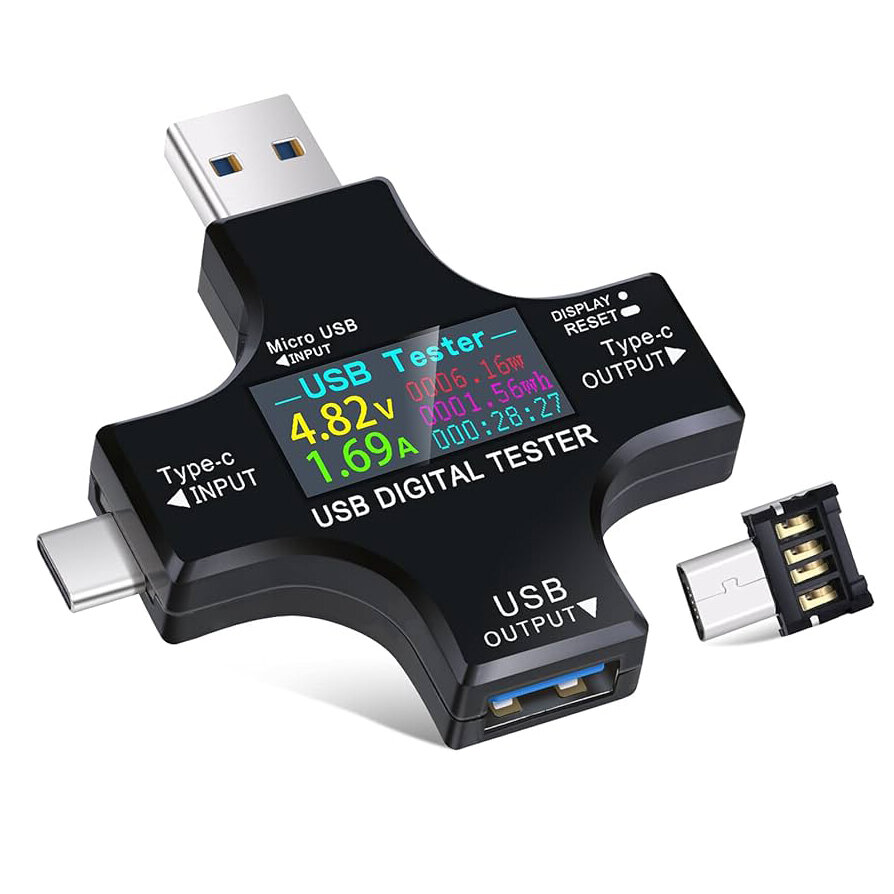

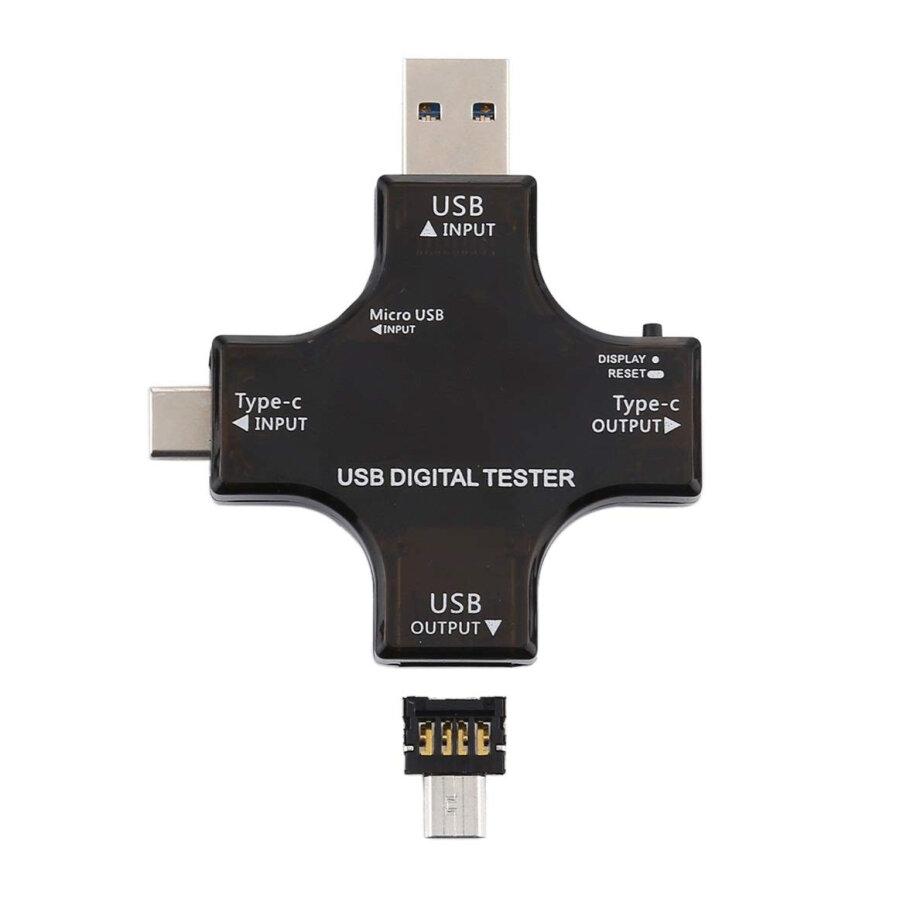

The Multifunctional Type-C+USB Digital Tester is used to test USB chargers and portable power supplies for electronic devices. It allows you to check the voltage and current passing through the USB socket, as well as capacity, energy, power, temperature, and impedance. The tester is equipped with a USB 3.0 type A plug, USB type C, USB 3.0 type A socket, USB type C, micro USB, and a clear 0.96-inch IPS LCD display with a wide viewing angle. It will be widely used for monitoring the charge status of any USB-powered device.
Features
- Input voltage range (V): 3.6 V - 32 V
- Voltage resolution: 0.01 V
- Current monitoring range (A): 0 A - 5.1 A
- Current monitoring resolution: 0.01 A
- Capacity measurement range: 0 - 99999 mAh
- Energy measurement range: 0 - 999.999 mWh
- Power measurement range: 0 - 150 W
- Impedance measurement range: 1 Ω - 999.9 Ω
- Temperature measurement range: 0 - 80°C
- Voltage measurement on USB D+/D- differential lines: 0 - 2.99 V
- Refresh rate: 2 Hz
- 0.96-inch IPS LCD display
- USB 3.0 type A plug, USB type C
- USB 3.0 type A socket, USB type C, micro USB
- Fast charging modes supported: QC2.0, QC3.0, Android BC1.2, Apple iPhone 5V/2.4A,
- Operating temperature: -10°C to 60°C
- Dimensions: 61 x 68 x 10.8 mm
- Weight: 14 g
