FNB48S Bluetooth USB Tester - Voltage and Current Meter

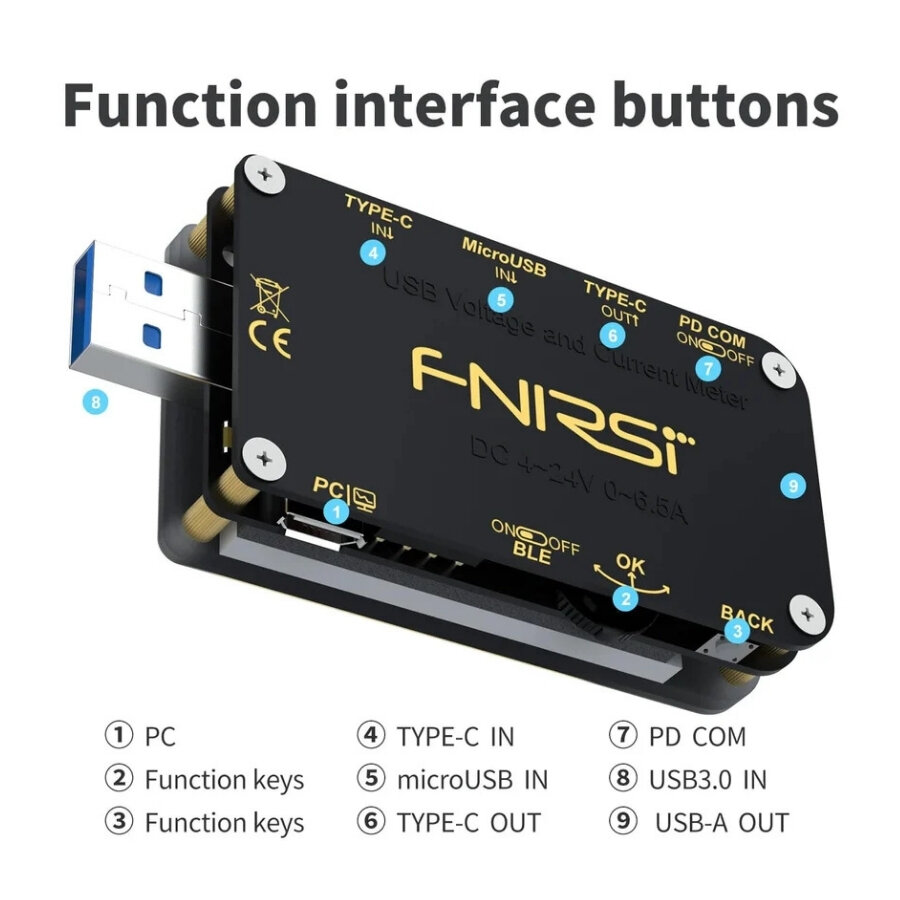

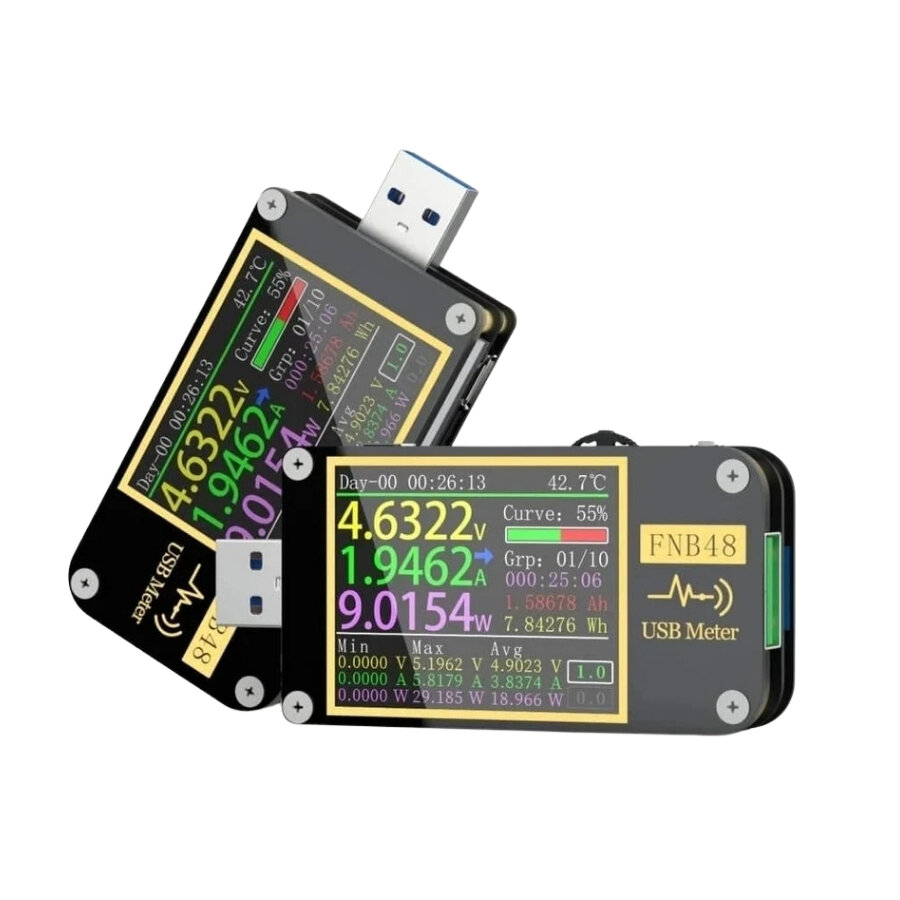

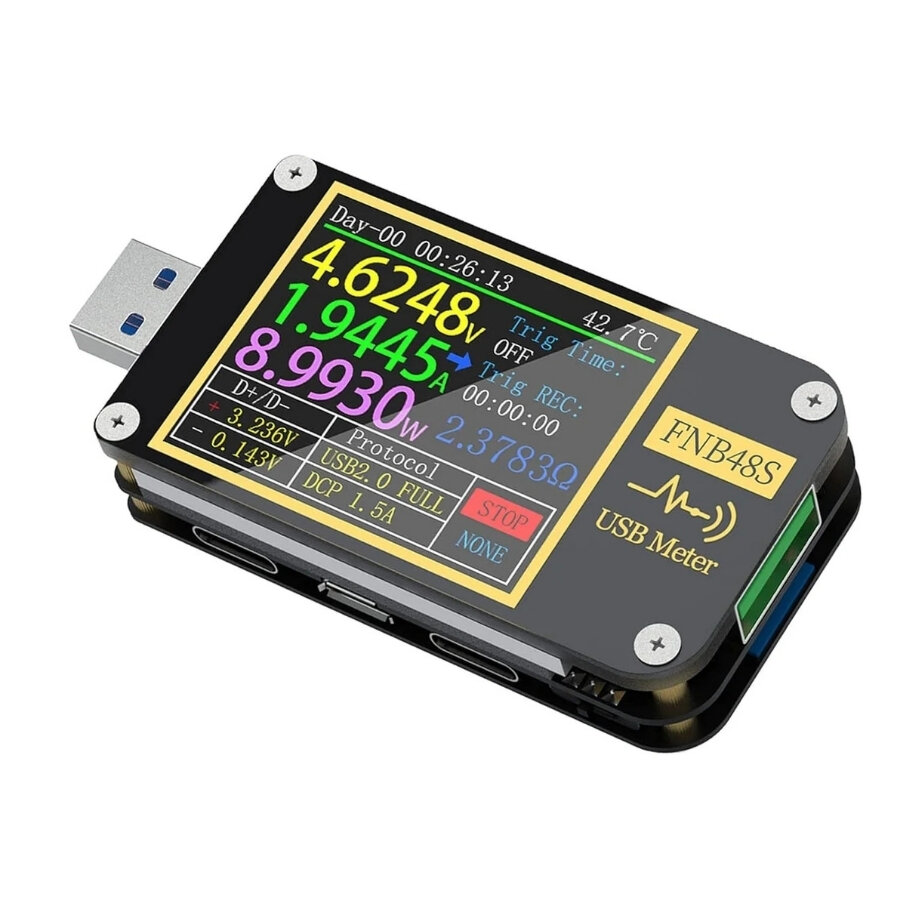

The FNB48S Bluetooth USB Tester - Voltage and Current Meter is a multi-functional protocol capacity testing tool. It integrates USB-A, Micro-USB, Type-C interface with a 1.77-inch high-resolution display, external 16-bit ADC, using PD protocol physical chip, can measure voltage, current, power, capacity, charging protocol, curve waveform, etc. It provides real-time monitoring.

Application

Note: For Bluetooth, the application only supports Android 5.1 or later, BT 4.0 or later, and temporarily does not support iOS. Since the device uses a BLE BT module, you cannot connect to the fnb48s through the system settings; you need to search and connect in the app.

Features

Control Voltage: 4-24V
Control Voltage Resolution: 0.00001V
Control Voltage Accuracy: ±0.2%+2%
Control Current: 0~6.5A
Control Current Resolution: 0.00001A
Current Accuracy: ±（0.5%+2）
Control power: 0~156W
Control power resolution: 0.00001W
Power accuracy: ±（0.5%+2）
Capacity: 0~9999.99Ah

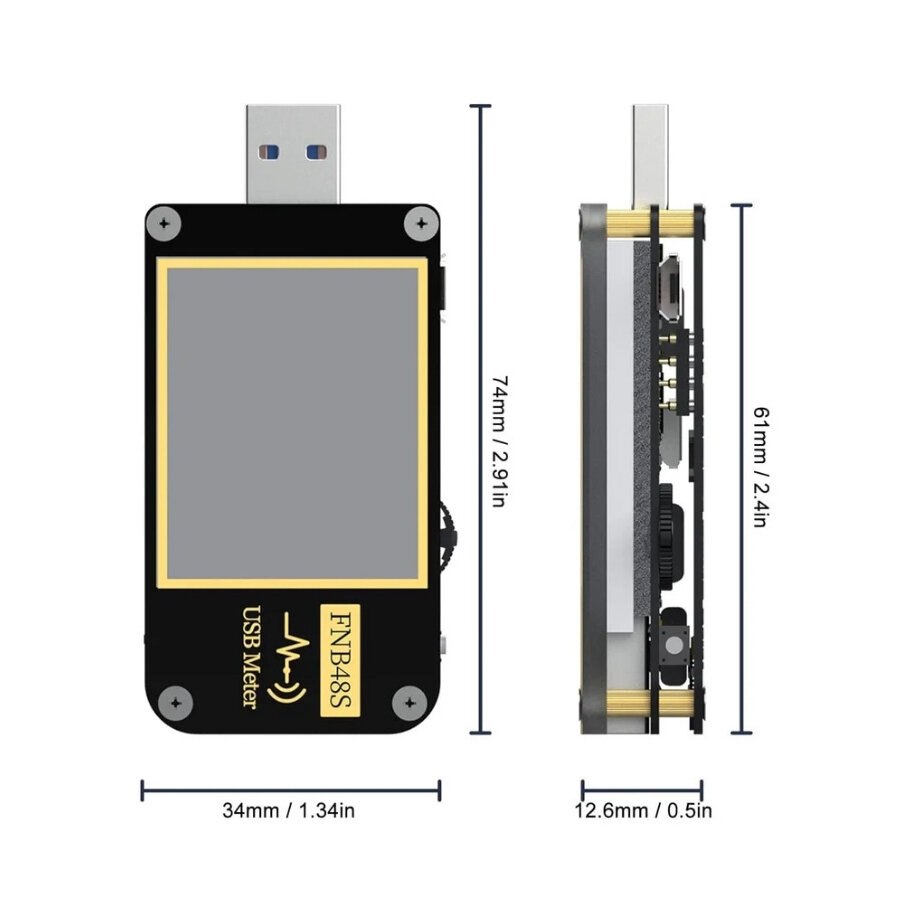

Dimensions: 74x34x12.6mm
